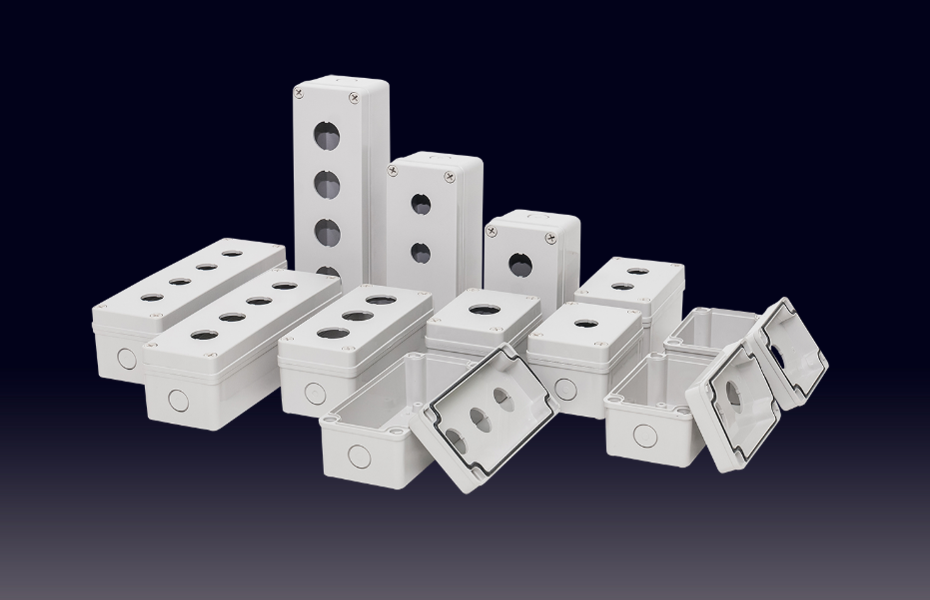

Boxco Pushbutton Enclosure
1. BOXCO’s pushbutton enclosure is no need additional machining when you install 22, 25 or 30mm push button and switches.
2. Our pushbutton switch box is made from ABS and polycarbonate.
3. Switch boxes have 1,2 or 3 push button entries and it has 22mm molded knockouts in base for easy installation.
**Dimensions and specifications are subject to change without notice.
Description
| Temperature range | ABS : – 40 ~ + 70℃ | Polycarbonate(PC) : – 40 ~ + 110℃ |
|---|---|
| Flammability Rating | ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB |
| Size(included cover) | Model | Dimension | |||||||
|---|---|---|---|---|---|---|---|---|---|
| W×L×H (mm) |
W×L×H (inch) |
ABS Grey cover |
PC Grey cover |
Inner Height |

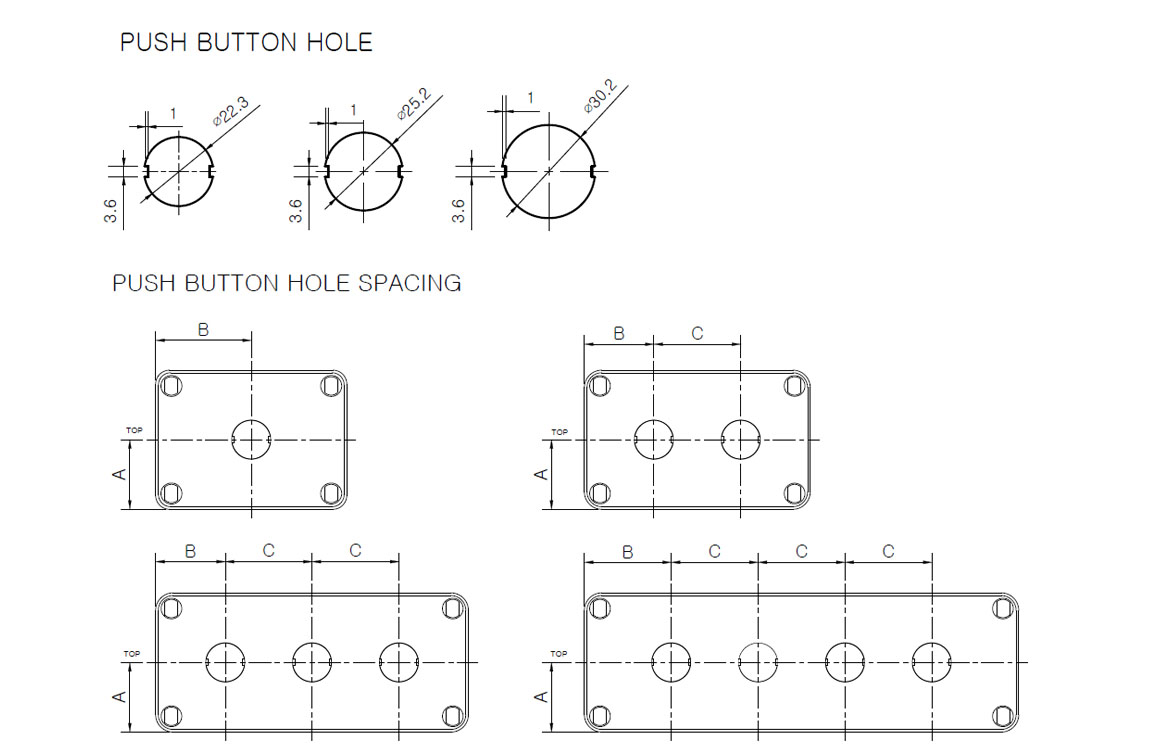

∮ | No of Holes | A | B | C |
| 80×110×70 | 3.15×4.33×2.76 | BC-AGG-081107-2201 | BC-CGG-081107-2201 | 57 | 22 | 1 | 40 | 55 | |
| 80×110×85 | 3.15×4.33×3.35 | BC-AGG-081108-2201 | BC-CGG-081108-2201 | 72 | 22 | 1 | 40 | 55 | |
| 80×130×70 | 3.15×5.12×2.76 | BC-AGG-081307-2202 | BC-CGG-081307-2202 | 57 | 22 | 2 | 40 | 40 | 50 |
| 80×130×85 | 3.15×5.12×3.35 | BC-AGG-081308-2202 | BC-CGG-081308-2202 | 72 | 22 | 2 | 40 | 40 | 50 |
| 80×180×70 | 3.15×7.09×2.76 | BC-AGG-081807-2203 | BC-CGG-081807-2203 | 57 | 22 | 3 | 40 | 40 | 50 |
| 80×180×85 | 3.15×7.09×3.35 | BC-AGG-081808-2203 | BC-CGG-081808-2203 | 72 | 22 | 3 | 40 | 40 | 50 |
| 80×250×70 | 3.15×9.84×2.76 | BC-AGG-082507-2204 | BC-CGG-082507-2204 | 57 | 22 | 4 | 40 | 50 | 50 |
| 80×250×85 | 3.15×9.84×3.35 | BC-AGG-082508-2204 | BC-CGG-082508-2204 | 72 | 22 | 4 | 40 | 50 | 50 |
| 80×110×70 | 3.15×4.33×2.76 | BC-AGG-081107-2501 | BC-CGG-081107-2501 | 57 | 25 | 1 | 40 | 55 | |
| 80×110×85 | 3.15×4.33×3.35 | BC-AGG-081108-2501 | BC-CGG-081108-2501 | 72 | 25 | 1 | 40 | 55 | |
| 80×130×70 | 3.15×5.12×2.76 | BC-AGG-081307-2502 | BC-CGG-081307-2502 | 57 | 25 | 2 | 40 | 40 | 50 |
| 80×130×85 | 3.15×5.12×3.35 | BC-AGG-081308-2502 | BC-CGG-081308-2502 | 72 | 25 | 2 | 40 | 40 | 50 |
| 80×180×70 | 3.15×7.09×2.76 | BC-AGG-081807-2503 | BC-CGG-081807-2503 | 57 | 25 | 3 | 40 | 40 | 50 |
| 80×180×85 | 3.15×7.09×3.35 | BC-AGG-081808-2503 | BC-CGG-081808-2503 | 72 | 25 | 3 | 40 | 40 | 50 |
| 80×250×70 | 3.15×9.84×2.76 | BC-AGG-082507-2504 | BC-CGG-082507-2504 | 57 | 25 | 4 | 40 | 50 | 50 |
| 80×250×85 | 3.15×9.84×3.35 | BC-AGG-082508-2504 | BC-CGG-082508-2504 | 72 | 25 | 4 | 40 | 50 | 50 |
| 80×110×70 | 3.15×4.33×2.76 | BC-AGG-081107-3001 | BC-CGG-081107-3001 | 57 | 30 | 1 | 40 | 55 | |
| 80×110×85 | 3.15×4.33×3.35 | BC-AGG-081108-3001 | BC-CGG-081108-3001 | 72 | 30 | 1 | 40 | 55 | |
| 80×130×70 | 3.15×5.12×2.76 | BC-AGG-081307-3002 | BC-CGG-081307-3002 | 57 | 30 | 2 | 40 | 40 | 50 |
| 80×130×85 | 3.15×5.12×3.35 | BC-AGG-081308-3002 | BC-CGG-081308-3002 | 72 | 30 | 2 | 40 | 40 | 50 |
| 80×180×70 | 3.15×7.09×2.76 | BC-AGG-081807-3003 | BC-CGG-081807-3003 | 57 | 30 | 3 | 40 | 40 | 50 |
| 80×180×85 | 3.15×7.09×3.35 | BC-AGG-081808-3003 | BC-CGG-081808-3003 | 72 | 30 | 3 | 40 | 40 | 50 |
| 80×250×70 | 3.15×9.84×2.76 | BC-AGG-082507-3004 | BC-CGG-082507-3004 | 57 | 30 | 4 | 40 | 55 | 50 |
| 80×250×85 | 3.15×9.84×3.35 | BC-AGG-082508-3004 | BC-CGG-082508-3004 | 72 | 30 | 4 | 40 | 55 | 50 |
