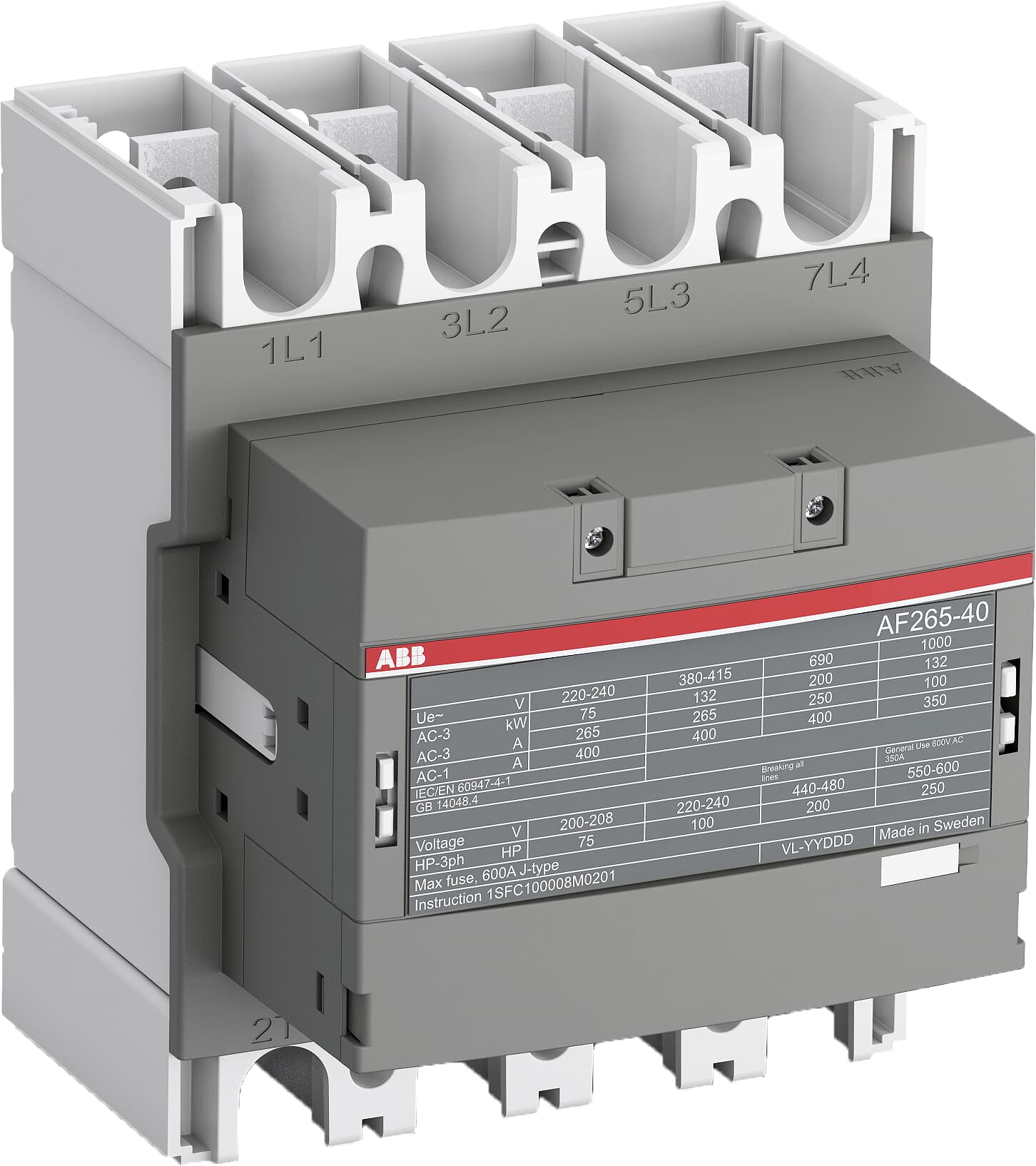

ABB AF265-40-00-11 24-60V50/60HZ 20-60VDC Contactor
General Information
| Extended Product Type: | AF265-40-00-11 |
| Product ID: | 1SFL547102R1100 |
| EAN: | 7320500503775 |
| Catalog Description: | AF265-40-00-11 Contactor |
| Long Description: | The AF265-40-00-11 is a 4 pole – 1000 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 132 kW / 400 V AC (AC-3) / and switching power circuits up to 400 A (AC-1) or 300 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V…Show more50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.Show less |
Description
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100214C0202 – Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) – Edition 2024 |
| Instructions and Manuals: | Operating instruction, Contactor, AF(S)190 … AF(S)370 |
| CAD Dimensional Drawing: | Information – 2D and 3D files for CAD systems |
| Dimension Diagram: | Dimension Drawing. Contactor,AF265,AF305,AF370 |
| Dimensions | |
| Product Net Width: | 184 mm |
| Product Net Depth / Length: | 180 mm |
| Product Net Height: | 225 mm |
| Product Net Weight: | 5.7 kg |
| Technical | |
| Number of Main Contacts NO: | 4 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Poles: | 4P |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Frequency (f): | Main Circuit 50 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 400 A |
| Rated Operational Current AC-1 (Ie): | (1000 V) 40 °C 350 A (1000 V) 60 °C 300 A (1000 V) 70 °C 240 A (690 V) 40 °C 400 A (690 V) 60 °C 350 A (690 V) 70 °C 290 A |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 265 A (440 V) 55 °C 265 A (500 V) 55 °C 250 A (690 V) 55 °C 250 A (380 / 400 V) 55 °C 265 A (220 / 230 / 240 V) 55 °C 265 A |
| Rated Operational Power AC-3 (Pe): | (415 V) 132 kW (440 V) 160 kW (380 / 400 V) 132 kW (220 / 230 / 240 V) 75 kW |
| Rated Breaking Capacity AC-3: | 8 x Ie AC-3 |
| Rated Making Capacity AC-3: | 10 x Ie AC-3 |
| Short-Circuit Protective Devices: | gG Type Fuses 630 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2120 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 400 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 865 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2650 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1224 A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3800 A |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency: | (AC-1) 300 cycles per hour |
| Mechanical Durability: | 5 million |
| Maximum Mechanical Switching Frequency: | 300 cycles per hour |
| Coil Operating Limits: | (acc. to IEC 60947-4-1) 0.85 x Uc Min. … 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc): | 50 Hz 24 … 60 V 60 Hz 24 … 60 V DC Operation 20 … 60 V |
| Coil Consumption: | Holding at Max. Rated Control Circuit Voltage 50 Hz 8.5 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 8.5 V·A Holding at Max. Rated Control Circuit Voltage DC 3 W Pull-in at Max. Rated Control Circuit Voltage 50 Hz 475 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 475 V·A Pull-in at Max. Rated Control Circuit Voltage DC 400 W |
| Power Loss: | 32 W at Rated Operating Conditions per Pole 32 W |
| Operate Time: | Between Coil De-energization and NO Contact Opening 45 … 80 ms Between Coil Energization and NO Contact Closing 30 … 60 ms |
| Connecting Capacity Main Circuit: | Flexible 2 x 70 … 185 mm² Rigid Al-Cable 1 x 185 … 240 mm² Rigid Cu-Cable 2 x 70 … 185 mm² |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 2x 0.75 … 2.5 mm² Flexible with Insulated Ferrule 2x 0.75 … 2.5 mm² Flexible 1×0.75 … 2.5 mm² Solid 2 x 1 … 4 mm² Stranded 1 x 1 …. 4 mm² |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Tightening Torque: | Cable Lug 28 N·m Main Circuit 22 … 43 N·m |
| Terminal Type: | Main Circuit: Bars |
| Product Name: | Block Contactor |
| Technical UL/CSA | |
| NEMA Size: | 5 |
| Horsepower Rating NEMA: | (200 V AC) Three Phase 75 Hp (230 V AC) Three Phase 100 Hp (460 V AC) Three Phase 200 Hp (575 V AC) Three Phase 200 Hp |
| Maximum Operating Voltage UL/CSA: | Main Circuit 1000 V |
| General Use Rating UL/CSA: | (600 V AC) 300 A |
| Horsepower Rating UL/CSA: | (200 … 208 V AC) Three Phase 40 Hp (200 V AC) Three Phase 75 hp (208 V AC) Three Phase 75 hp (220 … 240 V AC) Three Phase 40 Hp (220 … 240 V AC) Three Phase 100 hp (440 … 480 V AC) Three Phase 100 Hp (440 … 480 V AC) Three Phase 200 hp (550 … 600 V AC) Three Phase 125 Hp (550 … 600 V AC) Three Phase 250 hp |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor Fitted with Thermal O/L Relay (0.85 … 1.1 Uc) -25 … 50 °C Close to Contactor without Thermal O/L Relay (0.85 … 1.1 Uc) -40 … 70 °C Close to Contactor for Storage -40 … 70 °C |
| Maximum Operating Altitude Permissible: | Without Derating 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT): | CMRT – Conflict Minerals Reporting Template |
| REACH Declaration: | REACH – Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories |
| RoHS Information: | RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act – TSCA: | Toxic Substances Control Act (TSCA) declaration for Contactors |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| ABB EcoSolutions: | Yes |
| ABB Site Meeting Group Waste To Landfill Target: | Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility |
| End Of Life Disassembling Instructions: | End-of-life instruction – AF(S)265(B)-::(RT) to AF(S)370(B)-::(RT) |
| Environmental Product Declaration – EPD: | Environmental Product Declaration, Contactors, AF(S)265-AF(S)370 (SE) |
| Improved Energy Efficiency for Customers: | Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555: | Design for Closing Resource Loops – Standard EN45555 – 76.3 % |
| Sustainable Material Content in Product (wt. %): | Recycled Metal – 33 % |
| Certificates and Declarations | |
| A2L Certificate – UL: | UL Certificate of Compliance A2L, Contactor, AF190 – AF370 |
| ABS Certificate: | ABS Approval, Contactor, AF116 … AF370 (Sweden) |
| BV Certificate: | BV Certificate, Contactor, AF116-30 … AF370-30…AF116-40…AF370-40 |
| CB Certificate: | SEMKO_SE-73326 |
| CQC Certificate: | CQC Certificate, AC Contactor, AF265-:-:-:,AF305-:-:-:,AF370-:-:-:,AF265B-:-:-:,AF305B-:-:-:,AF370B-:-:-:, Made in Sweden |
| Declaration of Conformity – CCC: | CCC Declaration of Conformity, AC Contactor, AF265-:-:-:,AF305-:-:-:,AF370-:-:-:,AF265B-:-:-:,AF305B-:-:-:,AF370B-:-:-:, Made in Sweden |
| Declaration of Conformity – CE: | CE Declaration of Conformity – Contactor – AF116…AF370 |
| Declaration of Conformity – UKCA: | UK Declaration of Conformity – Contactors >100A |
| EAC Certificate: | 9AKK107046A8618 |
| KC Certificate: | KC Certificate, Contactor, AF265-40 (Sweden) |
| LR Certificate: | Lloyds register Certificate, Contactor, AF116-30 … AF370-30, AF116-40…AF370-40 |
| PRS Certificate: | PRS Certificate – AF116…AF1650 |
| RINA Certificate: | RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370 |
| RMRS Certificate: | 9AKK107045A6978 |
| UL Certificate: | cULus Certificate, Contactor, AF265-40, AF305-40, AF370-40 (4-pole) |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 212 mm |
| Package Level 1 Depth / Length: | 262 mm |
| Package Level 1 Height: | 212 mm |
| Package Level 1 Gross Weight: | 6.4 kg |
| Package Level 1 EAN: | 7320500503775 |
| External Classifications and Standards | |
| Object Classification Code: | Q |
| ETIM 7: | EC000066 – Power contactor, AC switching |
| ETIM 8: | EC000066 – Power contactor, AC switching |
| ETIM 9: | EC000066 – Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
| IDEA Granular Category Code (IGCC): | 4758 >> Iec Contactors |
| E-Number (Finland): | 3707219 |
