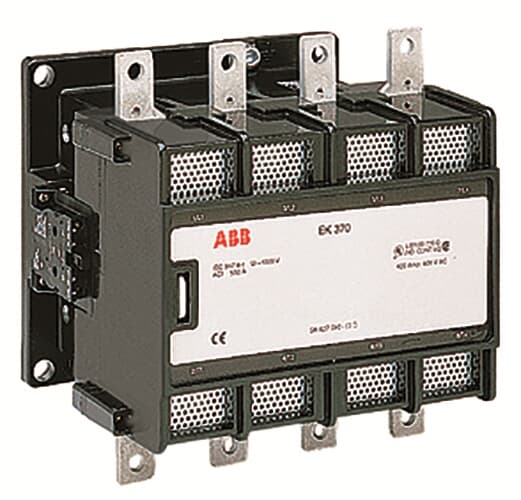

ABB EK550-40-11 220V 50Hz / 220-240V 60Hz
General Information
| Extended Product Type: | EK550-40-11 220V 50Hz / 220-240V 60Hz |
| Product ID: | SK827041-EL |
| EAN: | 7320500036556 |
| Catalog Description: | EK550-40-11 220V 50Hz / 220-240V 60Hz Contactor |
| Long Description: | A 4-pole Contactor suitable for Distribution and Rail way applications AC and DC switching. Operated with control voltage, versions from 24….690 AC, 50/60 Hz and 24-220 V DC |
Description
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100214C0202 – Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) – Edition 2024 |
| Instructions and Manuals: | Contactors EK 550…EK 1000 |
| Dimensions | |
| Product Net Width: | 270 mm |
| Product Net Depth / Length: | 225.5 mm |
| Product Net Height: | 272 mm |
| Product Net Weight: | 15.5 kg |
| Technical | |
| Number of Main Contacts NO: | 4 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Poles: | 4P |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 800 A |
| Rated Operational Current AC-1 (Ie): | (1000 V) 40 °C 800 A (1000 V) 60 °C 650 A (1000 V) 70 °C 575 A (690 V) 40 °C 800 A (690 V) 55 °C 650 A (690 V) 60 °C 650 A (690 V) 70 °C 575 A |
| Rated Operational Current AC-3 (Ie): | (440 V) 55 °C 550 A (500 V) 55 °C 550 A (690 V) 55 °C 550 A (1000 V) 55 °C 175 A (380 / 400 V) 55 °C 550 A (220 / 230 / 240 V) 55 °C 550 A |
| Rated Operational Power AC-3 (Pe): | (415 V) 315 kW (440 V) 315 kW (500 V) 400 kW (690 V) 500 kW (1000 V) 35 kW (380 / 400 V) 280 kW (220 / 230 / 240 V) 160 kW |
| Rated Breaking Capacity AC-3: | 8 x Ie AC-3 |
| Rated Making Capacity AC-3: | 10 x Ie AC-3 |
| Short-Circuit Protective Devices: | gG Type Fuses 1.5 … 1.8 In A |
| Rated Short-time Withstand Current Low Voltage (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 5300 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1000 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3000 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 5500 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 3700 A |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Maximum Electrical Switching Frequency: | (AC-1) 300 cycles per hour (AC-2 / AC-4) 120 cycles per hour (AC-3) 300 cycles per hour |
| Mechanical Durability: | 5 million |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Coil Operating Limits: | (acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc): | 50 Hz 220 V 60 Hz 220 … 240 V |
| Coil Consumption: | Holding at Max. Rated Control Circuit Voltage 50 Hz 125 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 140 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 3500 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 4000 V·A |
| Power Loss: | at Rated Operating Conditions per Pole 60 W |
| Operate Time: | Between Coil De-energization and NC Contact Closing 10 … 20 ms Between Coil De-energization and NO Contact Opening 13 … 23 ms Between Coil Energization and NC Contact Opening 25 … 55 ms Between Coil Energization and NO Contact Closing 30 … 60 ms |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Connecting Terminals (delivered in open position) Main Poles: | Flat type c/w screws and bolts |
| Terminal Type: | Main Circuit: Bars |
| Product Name: | Block Contactor |
| Technical UL/CSA | |
| General Use Rating UL/CSA: | (600 V AC) 540 A |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor Fitted with Thermal O/L Relay (0.85 … 1.1 Uc) -25 … 55 °C Close to Contactor without Thermal O/L Relay (0.85 … 1.1 Uc) -40 … 70 °C Close to Contactor for Storage -50 … 70 °C |
| Maximum Operating Altitude Permissible: | Without Derating 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT): | CMRT – Conflict Minerals Reporting Template |
| REACH Declaration: | REACH – Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories |
| RoHS Information: | RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories |
| RoHS Status: | Following EU Directive 2011/65/EU |
| SCIP: | 415a1c20-e381-4929-b653-04407c7cb03a Bulgaria (BG) |
| Simplified SCIP: | 00f0953b-b4b3-4097-807a-f97a31c3d561 Italy (IT) 15055209-22a2-4cd8-8060-a691fd45bd1a Spain (ES) 1a977d2f-4b7b-4c64-a69a-a1597fc6e607 Netherlands (NL) 20234d45-4550-4ae1-91c8-9a76cf6c6a03 Belgium (BE) 2f77cc95-4727-4181-a074-0c32bddb8d86 Estonia (EE) 39c72cc9-c1e2-494c-9d88-25e1c082e4b2 Greece (GR) 439047ce-ff1c-40bb-a942-309b87c8f934 Czech Republic (CZ) 4c23f455-0d8d-41d8-9f3d-c0029622d3b5 Germany (DE) 4ead8c2e-c4fc-42f6-87b8-8a104e383950 Sweden (SE) 5a93079b-1209-4fa6-a3e9-f46bb83e6bd4 Germany (DE) 61e32e85-82e6-4ce1-99ec-44b229fc756b Croatia (HR) 6674eff2-ef3b-42d8-8b00-ed1a1bb2852a Denmark (DK) 6a39beb2-28ea-4253-bb0f-3d8f483e25a3 Finland (FI) 6e4b43ba-6342-4f1e-8de3-21b799dc91c9 Germany (DE) 6fcc8c6e-6bf8-40c5-9212-efa9313e564b Hungary (HU) 817d501b-0a9f-4c31-a01b-a0ec53de283b Sweden (SE) 82dd8c2e-bcb4-4f48-a868-95134fc58b44 Poland (PL) 85c2d83d-6690-43e2-b58d-dc06a263849b Germany (DE) 9216c775-6c56-4f7a-97d6-9494971e45a3 France (FR) 9221169f-35d0-425a-bbf7-8706a6d33b9f Norway (NO) 9e0779b5-76dd-4671-89e3-424a5ed14e2f Poland (PL) c0cd28e6-05cf-474a-961f-f06dd2eb187f Portugal (PT) c431e717-66f5-4ae6-897c-22da5ee763f5 Poland (PL) c4e2afa0-0cc7-4338-8191-71e50cd1e1f4 France (FR) c7000c7d-6e2a-4cd5-a9ad-d4ee351abd12 Belgium (BE) db2583cf-cb9b-43b4-af84-d562c4e440a4 Germany (DE) ee97e78d-fb30-43bc-a932-03203f0bb837 Hungary (HU) |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate: | CQC Certificate, Contactor, EK550, Made in Bulgaria |
| Declaration of Conformity – CCC: | CCC Declaration of Conformity, Contactor, EK370, EK550, Made in Bulgaria |
| Declaration of Conformity – CE: | CE Declaration of Conformity – Contactor – EK550…EK1000 |
| UL Certificate: | 20161201-E36588 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 317 mm |
| Package Level 1 Depth / Length: | 373 mm |
| Package Level 1 Height: | 234 mm |
| Package Level 1 Gross Weight: | 17.2 kg |
| Package Level 1 EAN: | 7320500036556 |
| External Classifications and Standards | |
| Object Classification Code: | Q |
| ETIM 7: | EC000066 – Power contactor, AC switching |
| ETIM 8: | EC000066 – Power contactor, AC switching |
| ETIM 9: | EC000066 – Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
| IDEA Granular Category Code (IGCC): | 4755 >> Contactors |
