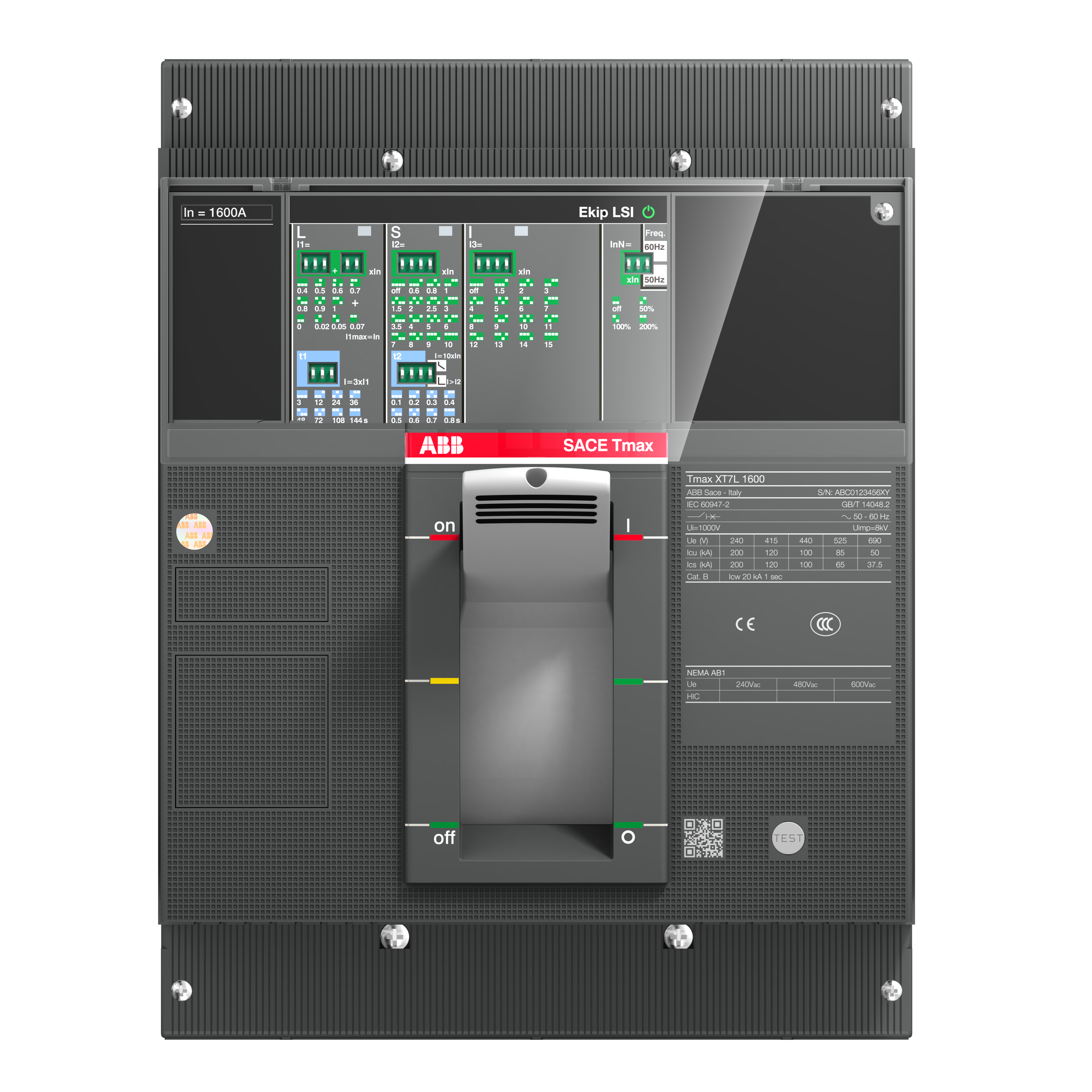

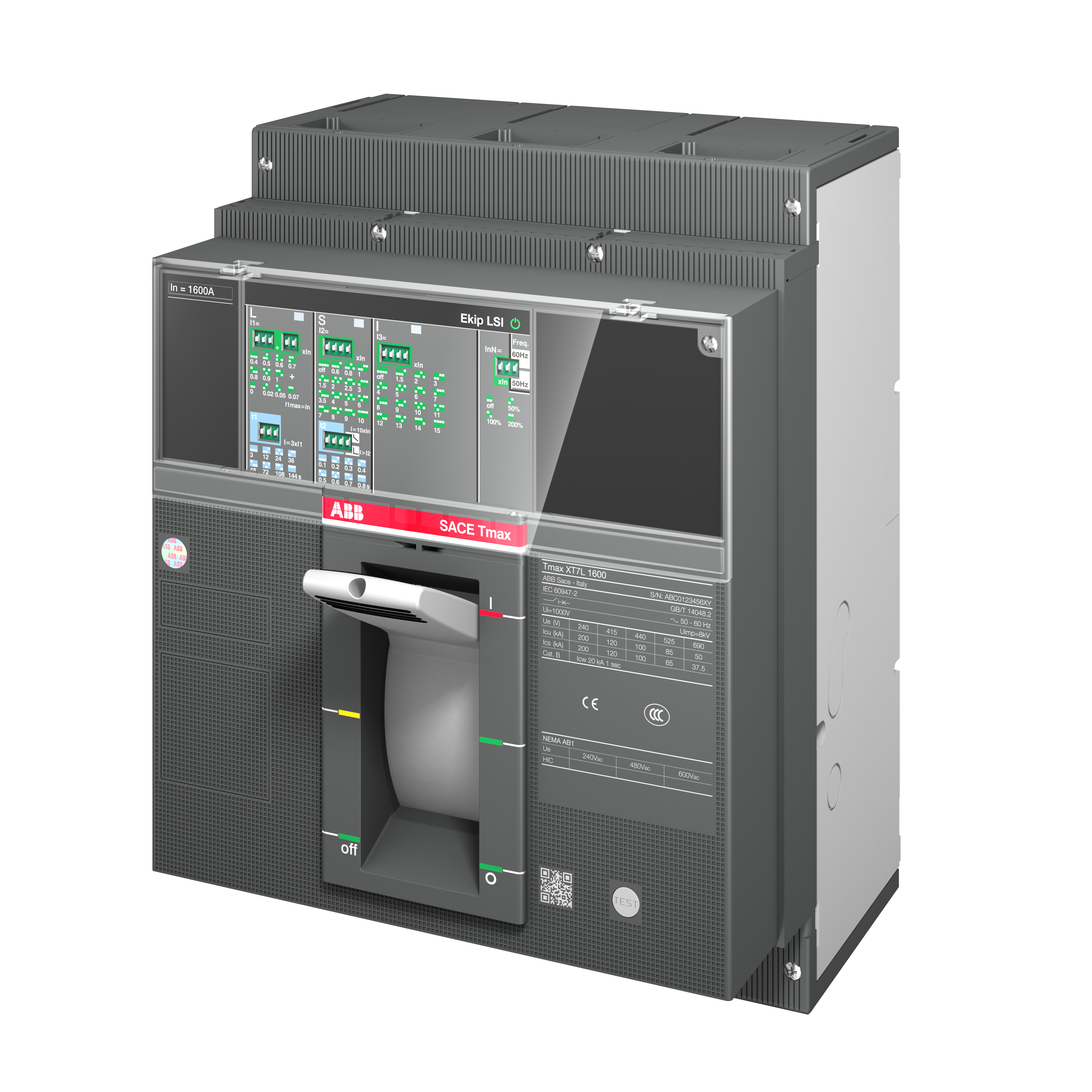

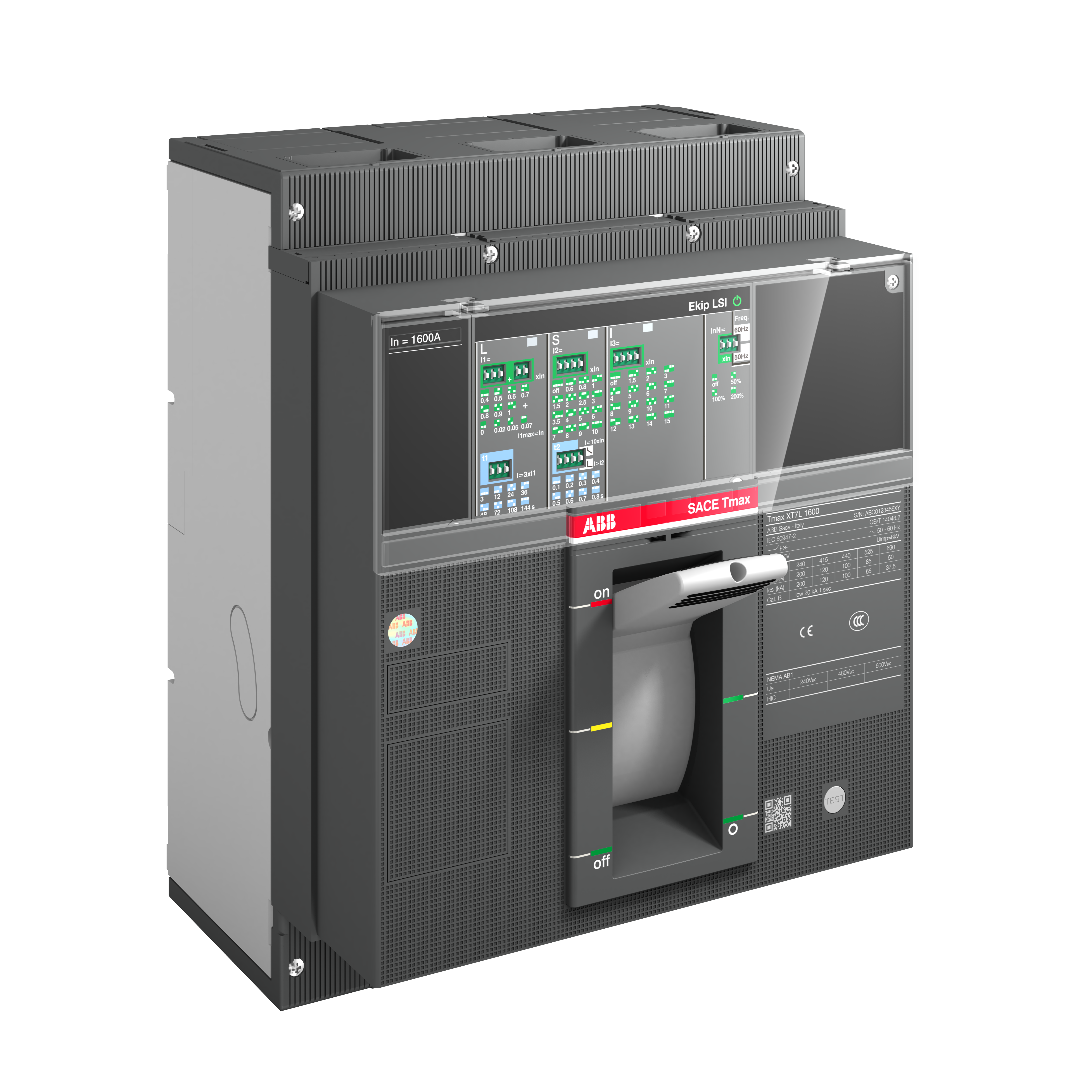

ABB XT7S 1250 Ekip Dip LS/I In=1250A 3p F F
General Information
| Extended Product Type: | XT7S 1250 Ekip Dip LS/I In=1250A 3p F F |
| Product ID: | 1SDA100828R1 |
| EAN: | 8056221008822 |
| Catalog Description: | XT7S 1250 Ekip Dip LS/I In=1250A 3p F F |
| Long Description: | C.BREAKER TMAX XT7S 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP DIP LS/I R 1250 |
Description
| ABB EcoSolutions | |
| ABB EcoSolutions: | Yes |
| ABB Site Meeting Group Waste To Landfill Target: | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions: | Disassembly instructions Tmax XT XT7 |
| Environmental Product Declaration – EPD: | EPD Tmax XT XT7 (IT) EPD Tmax XT XT7 (CN) |
| Recyclability Rate of the Product acc. to EN45555: | Design for Closing Resource Loops – Standard EN45555 – 64.1 % |
| Material Compliance | |
| REACH Declaration: | REACh Declaration ABB Sace circuit breakers |
| RoHS Information: | RoHS Declaration ABB Sace circuit breakers |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT): | CMRT – Conflict Minerals Reporting Template |
| Toxic Substances Control Act – TSCA: | Toxic Substances Control Act (TSCA) declaration |
| SCIP: | 659357b2-430e-43e0-82a3-2e7c44b0f8c5 Italy (IT) |
| Simplified SCIP: | 880b8803-52ae-4d94-b5ab-091c0f59a892 Germany (DE) 3c8923ac-ad55-4b3f-955f-dbee15c51f86 Poland (PL) d5b5d2db-348e-40c8-b7e8-5295ea4141e7 Norway (NO) dd2ab85f-7f3f-4517-bb99-e7d2540d7276 Finland (FI) 0d249bb6-a903-4b46-b509-ce5435af61b8 Netherlands (NL) 8bfb998c-fe43-4100-812e-6c742bb0a94f Germany (DE) 36243cd0-6631-430c-93d2-33232844f7a9 Denmark (DK) 409d366c-8db4-4731-8f64-63f736de9d17 Germany (DE) 367f2fa2-af4f-4b6b-8c35-f8b478fe366b Croatia (HR) ec54c558-55ce-4f08-b170-5fd6cabcae90 Czech Republic (CZ) c738092c-8134-4868-a783-00d2ec6c8725 Poland (PL) 82cc2556-19b4-4728-aa33-1f97cedd89e5 Netherlands (NL) 6714a551-b0a7-42cc-83c9-5db21ed613dd Netherlands (NL) c1a7008d-3c43-4e4d-8e2b-a3d7e82b186a Estonia (EE) 47659d22-e3ee-4084-9743-c531a5ff0ae0 Greece (GR) bc67820f-2ae8-4c09-bd06-aa6fd5c4434e Portugal (PT) 20cb4f86-ff78-47d9-adf4-c7dcd9a12194 Bulgaria (BG) 055011bd-ef75-482f-9012-cf5eae8112ed Sweden (SE) 75163275-580d-499f-a463-028898457c23 Poland (PL) 85c54814-a5c9-4c89-a02d-5160438b23b5 France (FR) 48365389-37aa-41ad-82af-7a684dc48aba Sweden (SE) 4d716284-7771-4e14-8e4a-d47575a42efe Germany (DE) 404eee7c-992a-4f40-9e28-906315ca7852 Germany (DE) 9df46d60-a21f-45b3-944e-ce35fb2a4006 France (FR) 301641f6-f5ca-47a5-88cd-6db538348cec Netherlands (NL) 983946b4-88ec-4a16-9b37-b82337404f0a Spain (ES) 3339d977-9a17-4bb6-8af8-65e6df910145 Netherlands (NL) |
| Environmental | |
| Ambient Air Temperature: | Operation -40 … 125 °C |
| Environmental Information: | Breakers – Packaging disposal information |
| Ordering | |
| Order Code US and Canada: | XT7SE312EEFF000XXX |
| E-Number (Norway): | 4380617 |
| EAN: | 8056221008822 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Dimensions | |
| Product Net Width: | 210 mm |
| Product Net Height: | 268 mm |
| Product Net Depth / Length: | 166 mm |
| Product Net Weight: | 13.585 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 280 mm |
| Package Level 1 Height: | 350 mm |
| Package Level 1 Depth / Length: | 360 mm |
| Package Level 1 Gross Weight: | 14.3 kg |
| Package Level 1 EAN: | 8056221008822 |
| Additional Information | |
| Circuit Breaker Type to be Associated: | Power Distribution |
| Product Main Type: | SACE Tmax XT |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | Automatic Circuit Breaker |
| Version: | F |
| CAD Dimensional Drawing: | XT7 3p Fixed Circuit Breaker XT7-XT7M 3p 4p Front plate |
| Technical | |
| Current Type: | AC |
| Electrical Durability: | 3000 cycle 60 cycles per hour |
| Mechanical Durability: | 10000 cycle 60 cycles per hour |
| Number of Poles: | 3P |
| Order Multiple: | 1 piece |
| Power Loss: | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In): | 1250 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 85 kA (230 V AC) 85 kA (240 V AC) 85 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 45 kA (525 V AC) 45 kA (690 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw): | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (220 V AC) 85 kA (230 V AC) 85 kA (240 V AC) 85 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 45 kA (525 V AC) 45 kA (690 V AC) 30 kA |
| Rated Uninterrupted Current (Iu): | 1250 A |
| Release: | Ekip Dip LS/I |
| Release Type: | EL |
| Short-Circuit Performance Level: | S |
| Standards: | IEC60947-2 |
| Sub-type: | XT7 |
| Terminal Connection Type: | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information: | SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers |
| Declaration of Conformity – CE: | EC Declaration of Conformity Tmax XT7 |
| Mechanical Drawings: | XT7 III-IV fixed version front terminals F |
| Wiring Diagram: | Circuit diagram XT7-XT7M |
| Instructions and Manuals: | Installation instructions XT7-XT7M Maintenance instructions XT7-XT7M |
| External Classifications and Standards | |
| ETIM 8: | EC000228 – Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9: | EC000228 – Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: | Q |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass: | V11.1 : 27370409 |
