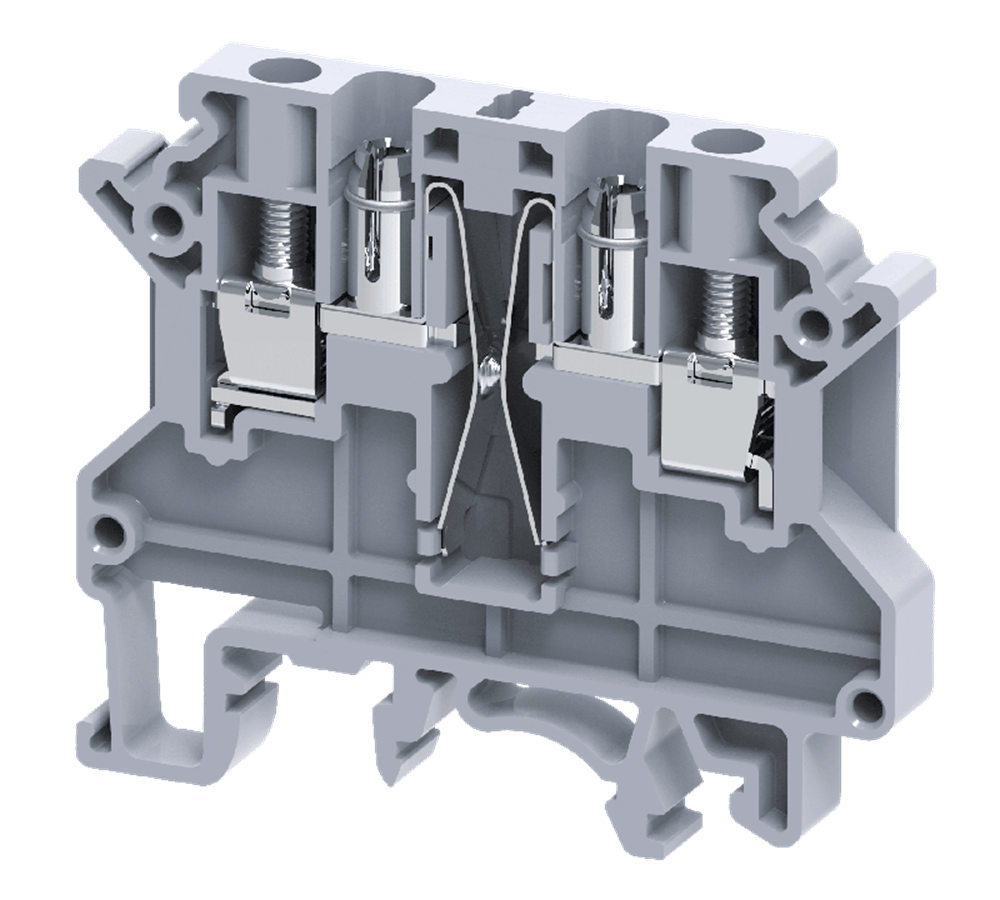

Connectwell CDT4 Disconnect & Test Terminal Block
4 sq.mm Disconnect & Test Terminal Blocks
Disconnect Test Terminal Block mainly used for metering circuit. Test Terminal Blocks can be used for testing a wide range of electrical equipment including integrating meters and protective relays, without disturbing the normal load circuit.These Terminal Blocks reduces the possibility of damage to the current transformers
Description
| TECHNICAL DATA | |||
| Rated Voltage | 800 V | ||
| Rated Current | 10 A | ||
| Tightening Torque | 0.5 Nm | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Knife Type Discconnect and Test | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail | ||
| Screw Size | M3 | ||
| Operated by | Screw Driver | ||
| Rated Surge Voltage | 6 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 4 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 10 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 4 mm² | ||
| 2 Conductors with same Cross Section Stranded min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded max | 2.5 mm² | ||
| Conductor Cross Section Solid min | 0.2 mm² | ||
| Conductor Cross Section Solid max | 6 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 2.5 mm² | ||
| Stripping Length | 8 mm | ||
| Internal Cylindrical Guage | A4 | ||
| DIMENSIONS | |||
| Height with DIN 32 rail | 52.7 mm | ||
| Height with DIN 35 x 15 mm rail | 55.4 mm | ||
| Height with DIN 35 x 7.5 mm rail | 47.9 mm | ||
| Length | 54.8 mm | ||
| Width (Thickness) | 6 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CDT4 | 4 sq.mm Disconnect & Test Terminal Block in Grey colour | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| CA202 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 25 |
| CA509/K6 | Blank Marking Tag | 100 |
| SCS0.6/3.5 | Electricians Screwdriver for slotted screws | 10 |
| CA713/2 | External Comb Type Shorting Link available in 2 Pole | 100 |
| CA713/3 | External Comb Type Shorting Link available in 3 Pole | 100 |
| CA713/4 | External Comb Type Shorting Link available in 4 Pole | 100 |
| CA713/10 | External Comb Type Shorting Link available in 10 Pole | 20 |
| EPCDT4 | End Plate in Grey colour | 50 |
| MC6 | MARKER CARD 6MM PITCH WITH 72 TAGS | 10 |
