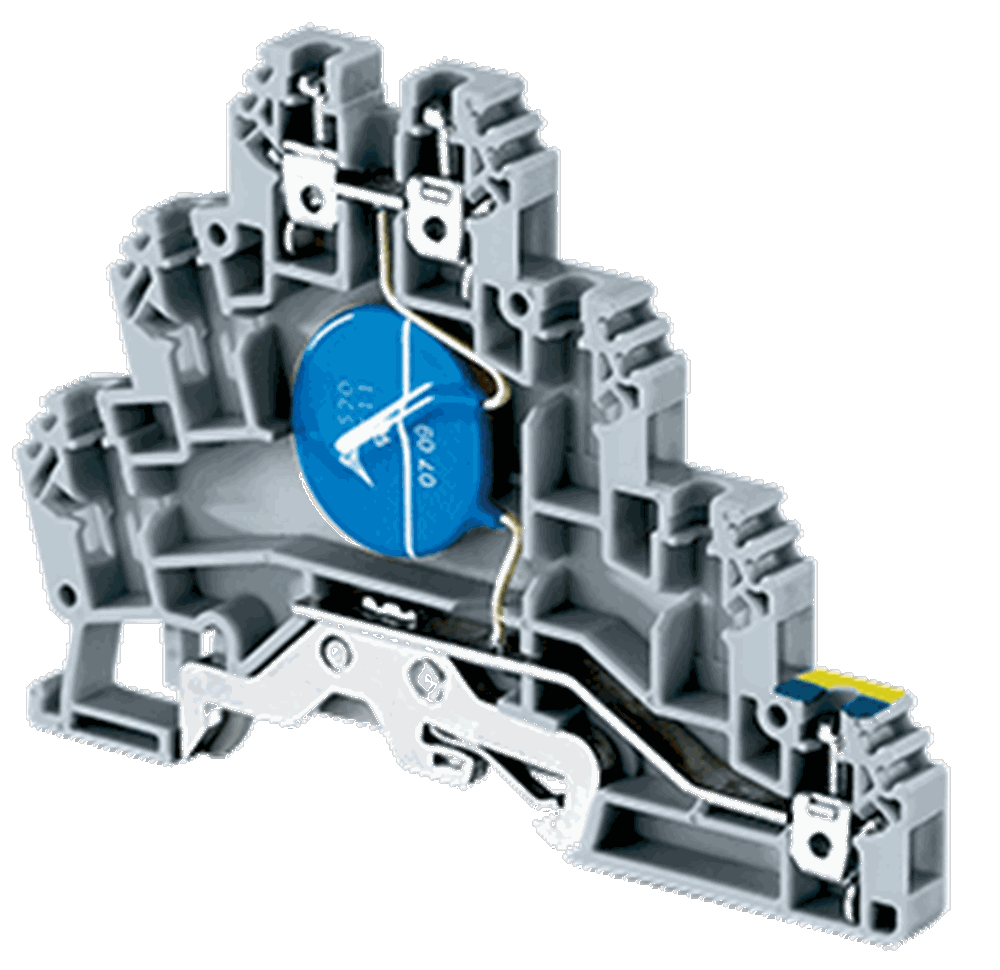

Connectwell CTLG2.5EMOV Triple Level Surge Suppression Terminal Block With Additional Grounding Point
2.5 sq.mm Triple Level Surge Suppression Terminal Blocks with additional grounding point.
These Terminal Blocks are designed to protect a single line against a longitudinal (line/earth) surge, thereby protecting distribution and input.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 275 V | ||
| Rated Current | 6.5 KA | ||
| Tightening Torque | 0.4 Nm | ||
| Housing Material | Polyamide | ||
| Product Function | With Surge Supressing Components | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Screw Size | M2.5 | ||
| Operated by | Screwdriver | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 2.5 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 22 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 14 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 2.5 mm² | ||
| 2 Conductors with same Cross Section Stranded min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded max | 1.5 mm² | ||
| Conductor Cross Section Solid min | 0.2 mm² | ||
| Conductor Cross Section Solid max | 4 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 1.5 mm² | ||
| Stripping Length | 9 mm | ||
| Internal Cylindrical Guage | A3 | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 74 mm | ||
| Height with DIN 35 x 7.5 mm rail | 66 mm | ||
| Length | 87.5 mm | ||
| Width (Thickness) | 6 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CTLG2.5EMOV-30V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 30V | 50 |
| CTLG2.5EMOV-60V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 60V | 50 |
| CTLG2.5EMOV-75V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 75V | 50 |
| CTLG2.5EMOV-130V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 130V | 50 |
| CTLG2.5EMOV-275V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 275V | 50 |
