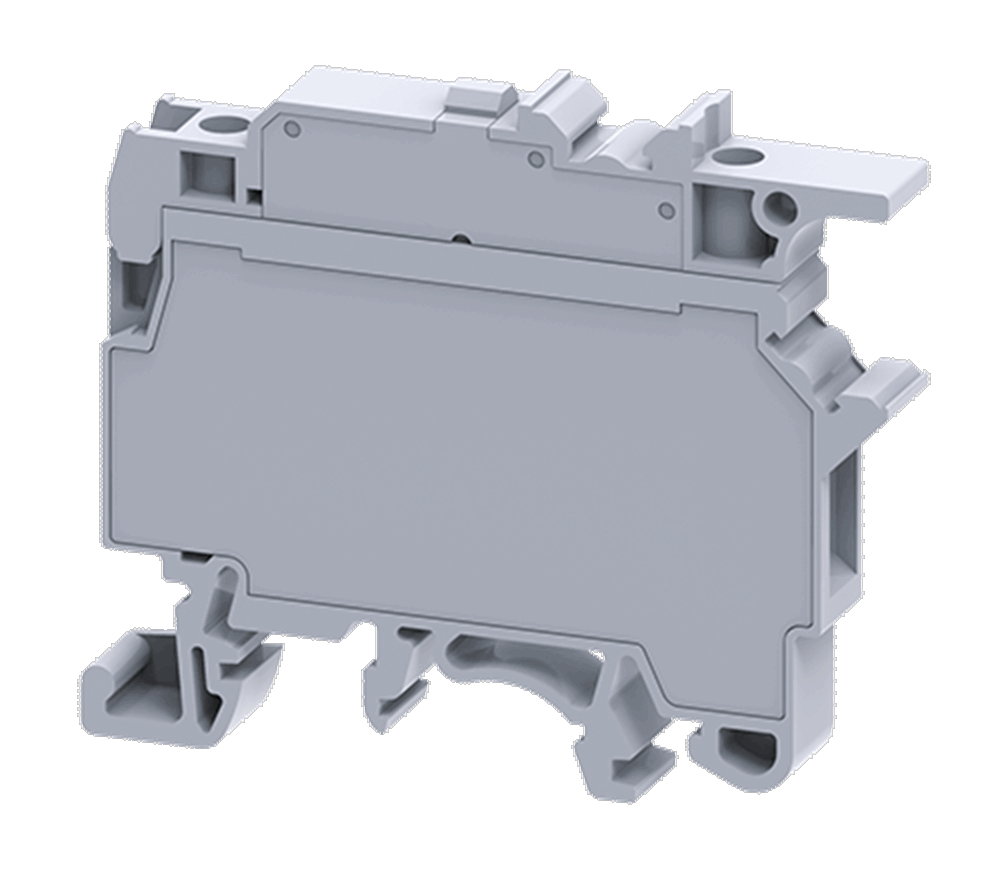

Connectwell Single Level Fuse Terminal Block With LED Indication
4 sq.mm Single Level Fuse Terminal Blocks with LED indication.
These Terminal Blocks are used in electrical and control systems which require fuse protection. The CF series accepts industry standard 5 x 20 mm and 5 x 25 mm glass cartridge fuses. These blocks are completely closed and do not need a separate end plate. CF4UL series Terminal are used for offline indication in case of a fuse blow out.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 800 V | ||
| Rated Current | 6.3 A | ||
| Tightening Torque | 0.5 Nm | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Single Level Fuse with Indication | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail | ||
| Screw Size | M3 | ||
| Operated by | Screwdriver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 4 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 22 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 10 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 4 mm² | ||
| 2 Conductors with same Cross Section Stranded min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded max | 2.5 mm² | ||
| Conductor Cross Section Solid min | 0.2 mm² | ||
| Conductor Cross Section Solid max | 6 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 2.5 mm² | ||
| Stripping Length | 9.5 mm | ||
| Internal Cylindrical Guage | A4 | ||
| DIMENSIONS | |||
| Height with DIN 32 rail | 56.5 mm | ||
| Height with DIN 35 x 15 mm rail | 57.6 mm | ||
| Height with DIN 35 x 7.5 mm rail | 50.3 mm | ||
| Length | 57 mm | ||
| Width (Thickness) | 8 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CF4UL110-240VRP | 4sq.mm Fuse Terminal Block with indication suitable for 110-240V | 50 |
| CF4UL110-240VRPBU | 4sq.mm Fuse Terminal Block with indication suitable for 110-240V in Blue colour. | 50 |
| CF4UL6-60VRP | 4sq.mm Fuse Terminal Block with indication suitable for 6-60V. | 50 |
| CF4UL6-60VRPBU | 4sq.mm Fuse Terminal Block with indication suitable for 6-60V Blue colour. | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA501-1M | Din 32 Rail unslotted 1 meter | 50 |
| CA501-1M-S | Din 32 Rail slotted 1 meter | 50 |
| CA501-2M | Din 32 Rail unslotted 2 meter | 50 |
| CA501-2M-S | Din 32 Rail slotted 2 meter | 50 |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| CA711/2 | External Comb Type Shorting Link available in 2 Pole | 100 |
| CA711/3 | External Comb Type Shorting Link available in 3 Pole | 50 |
| CA711/4 | External Comb Type Shorting Link available in 4 Pole | 50 |
| CA711/10 | External Comb Type Shorting Link available in 10 Pole | 20 |
| CA509/K6 | Blank Marking Tag | 100 |
| CA509/K8 | Marking Tag with Vertical printing. | 100 |
| SCS0.6/3.5 | Electricians Screwdriver for slotted screws | 10 |
| MC6 | MARKER CARD 6MM PITCH WITH 72 TAGS | 10 |
| MC8 | MARKER CARD 8MM PITCH WITH 48 TAGS | 10 |
