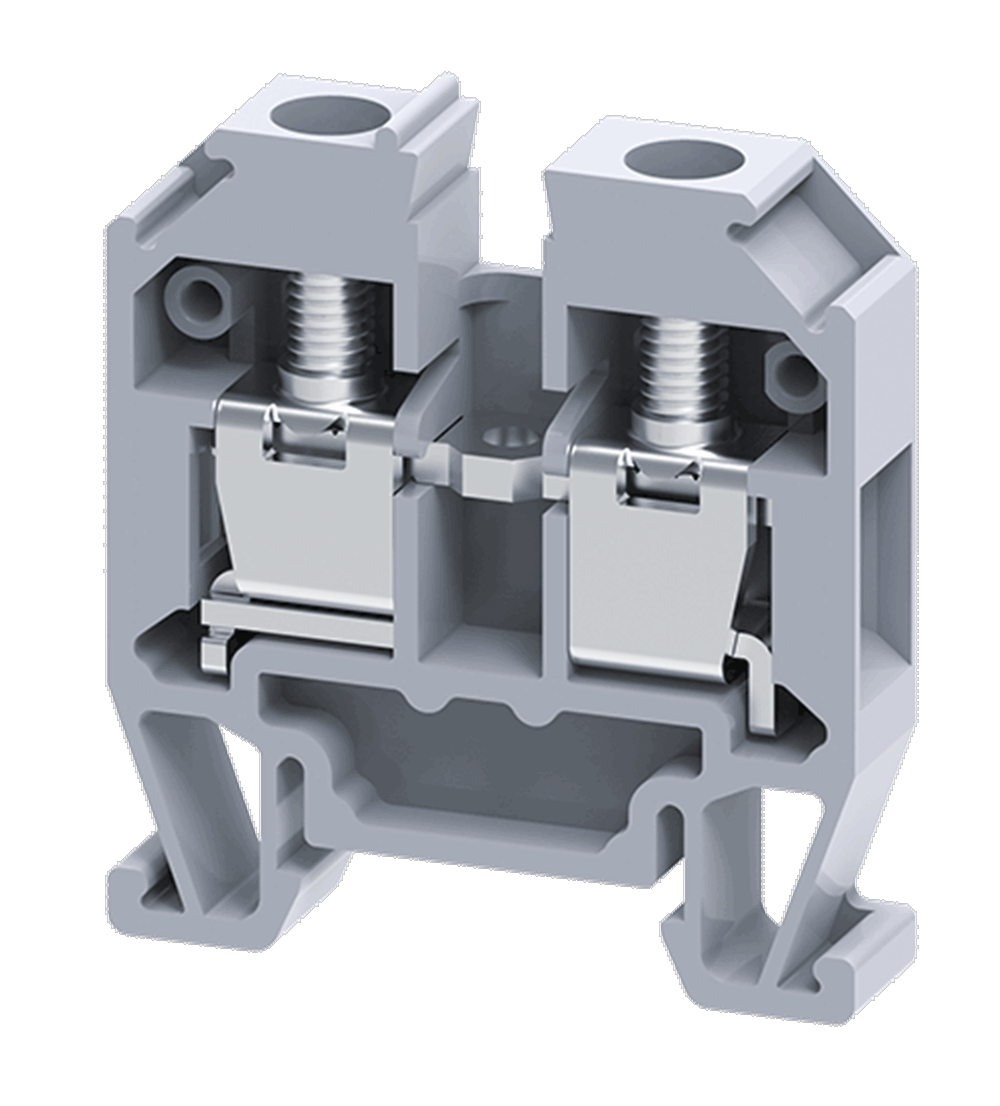

Connectwell CMT4P Micro Terminal Block With Philips Head Screw

4 sq.mm Micro Terminal Block with Philips Head Screw.
These Terminal Blocks are extremely compact and are used in applications with space constraints.

Add to quote
SKU: fc28b8f9a2f4 Categories: , ,

Description

TECHNICAL DATA
Rated Voltage 500 V
Rated Current 32 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Micro/Mini
Wire Entry Orientation Side Entry
Mounting Possibility DIN 15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 4 KV
Pollution Degree 3
CONNECTION DATA
Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 4 mm²
Conductor Cross Section AWG/Kcmil min 22 AWG
Conductor Cross Section AWG/Kcmil max 10 AWG
Conductor Cross Section Stranded with Ferrule/Lug min 0.2 mm²
Conductor Cross Section Stranded with Ferrule/Lug max 4.0 mm²
2 Conductors with same Cross Section Stranded min 0.2 mm²
2 Conductor with same Cross Section Stranded max 2.5 mm²
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 6.0 mm²
2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min 0.2 mm²
2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max 2.5 mm²
Stripping Length 8 mm
DIMENSIONS
Height with DIN 15 x 5 mm rail 30.4 mm
Length 27 mm
Width (Thickness) 6 mm
ORDERING INFORMATION
CAT. NO. DESCRIPTION STD. PACK
CMT4P 4 sqmm Micro Terminal Block in Grey colour. 100
ACCESSORIES
CAT. NO. DESCRIPTION STD. PACK
CA601

Din 15 Rail unslotted 100
CA602

End Clamp suitable for Din 15 Rail 50
EPCMT4

End Plate in Grey colour . 50
PPCMT4

Partition Plate in Grey colour suitable for CMT4 Terminal Block 50
CA727/2

Pre Assembled Shorting Link assemblies with 2 poles 100
CA727/3

Pre Assembled Shorting Links assemblies with 3 poles 100
CA727/4

Pre Assembled Shorting Link assemblies with 4 poles 100
CA727/10

Pre Assembled Shorting Links assemblies with 10 poles 10
CA747/2

Pre assembled Shorting Link for 2 way shorting 100
CA747/3

Pre assembled Shorting Link for 3 way shorting 100
CA747/4

Pre assembled Shorting Link for 4 way shorting 100
CA747/10

Pre assembled Shorting Link for 10 way shorting 10
CA714/2

External Comb Type Shorting Link Available in 2 pole 100
CA714/3

External Comb Type Shorting Link Available in 3 pole 100
CA714/4

External Comb Type Shorting Link Available in 4 pole 100
CA714/10

External Comb Type Shorting Link Available in 10 pole 20
CA703/1

Permanent Shorting Link for 2 way shorting 100
CA704/1

Permanent Shorting Link for 3 way shorting 100
CA705/1

Permanent Shorting Link for 4 way shorting 100
CA732/10

Permanent Shorting Link for 10 way shorting 100
CA732/10-A

Permanent Shorting Link (Breakable) for 10 way shorting 100
CA732/100

Permanent Shorting Link for 100 way shorting 100
CA607/S/Q

Shorting Sleeve and Screw 100
CA706/1

Removable Shorting link suitable for CTS2.5UE / CTS4UN / CMT4 100
CA607/L/Q

Long Shorting Sleeves and Screw suitable for CTS35 100
CA509/K2

Marking Tag Blank suitable for CDL4U / CDL4U(I.S) / CTL2.5U / CTL2.5UH / CTL2.5UL / CTL2.5HUL / CTL2.5U(I.S) / CTL2.5U(I.S)D2 / CGMT4 / CSFL4U / CSFL4U(L) / CMT4 / CMB4 / ASF4 / ASF4(L) / CTS2.5(M) / CTS2.5 / CTS6 / CTS10 / CTS16 / CTS35 / CTS4SC / CTS6SC / CTS10SC Terminal Blocks 100
CA707/TS/03

Test Socket Suitable for CMT4 / CDL4U / CDL4U(I.S)Terminal Blocks 100
SCS0.6/3.5I

Insulated Electricians Screwdriver for slotted screws 10
MC2

MARKER CARD 6MM PITCH WITH 72 TAGS 10
