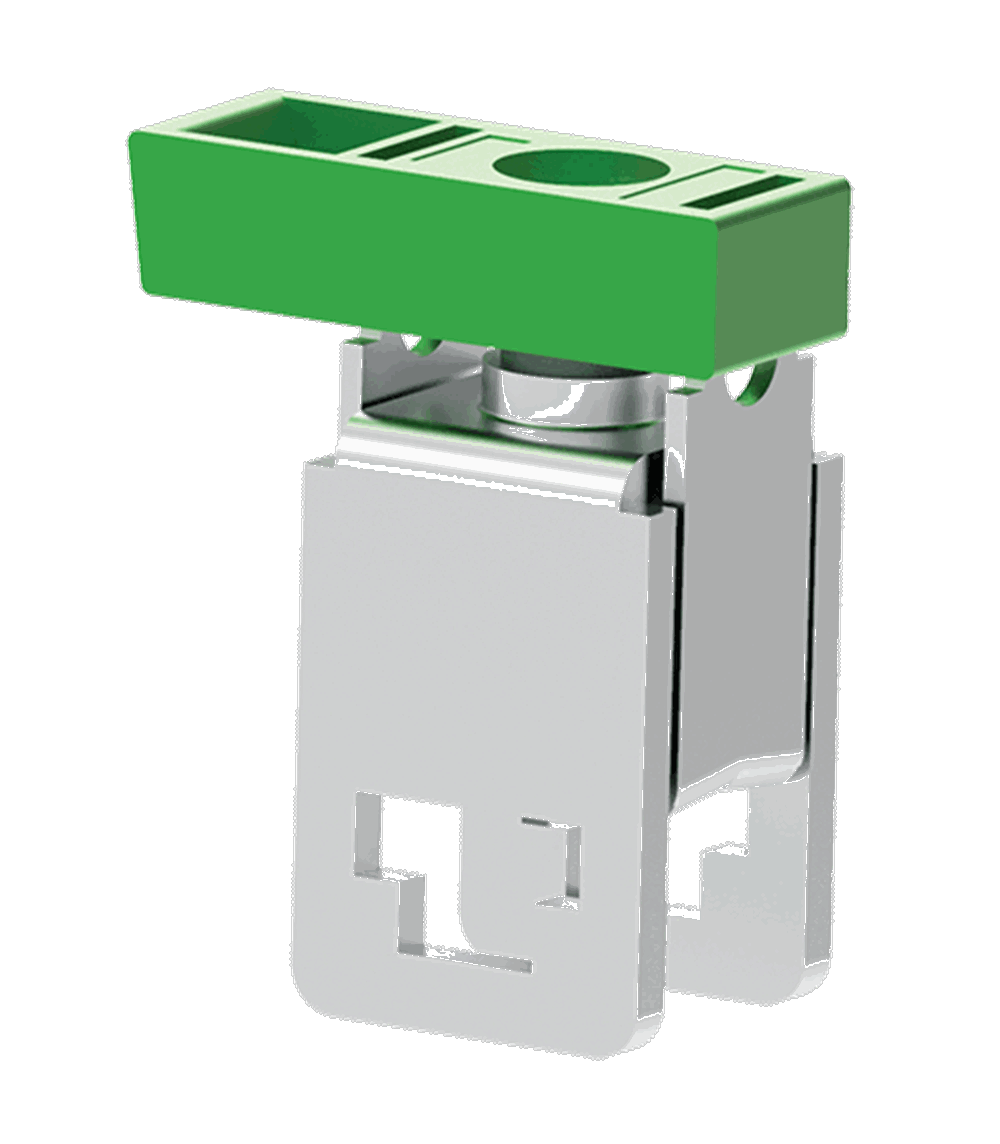

Connectwell CENC16 Neutral/Earth Clamp Terminal Block
16 sq.mm Neutral / Earth Clamps
The CENC series clamps are a flexible solution for terminating neutral and grounding wires on bus bar.
Description
| TECHNICAL DATA | |||
| Tightening Torque | 2 Nm | ||
| Housing Material | Polyamide | ||
| Product Function | Neutral/Earthing Clamps | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | Panel/Surface | ||
| Screw Size | M4 | ||
| Operated by | Screwdriver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 10 mm² | ||
| Conductor Cross Section Stranded max. | 16 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 10 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 4 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 10 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 16 mm² | ||
| 2 Conductors with same Cross Section Stranded min | 6 mm² | ||
| 2 Conductor with same Cross Section Stranded max | 10 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 6 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 10 mm² | ||
| Stripping Length | 16 mm | ||
| DIMENSIONS | |||
| Length | 23.3 mm | ||
| Width (Thickness) | 9.8 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CENC16 | 16 sq.mm Neutral/Earth clamps Terminal Block in Green colour | 50 |
| CENC16BU | 16 sq.mm Neutral/Earth clamps Terminal Block in Blue colour | 50 |
| CENC16BK | 16 sq.mm Neutral / Earth Clamps Terminal Block in Black colour. | 50 |
| CENC16G | 16 sq.mm Neutral / Earth Clamps Terminal Block in Grey colour. | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA202 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 25 |
| CA509/K6 | Blank Marking Tag | 100 |
| NES | Plastic support with fixing screw for fixing 10 / 6 mm Bus Bar suitable for mounting CENC4 / CENC16 / CENC35 Earth / Neutral Clamps | 50 |
| SCS1/5.5 | Electricians Screwdriver for slotted screws | 10 |
| NEB6 | 6mm Bus Bar for mounting CENC4 / CENC16 / CENC35 Earth / Neutral Clamps | 1 |
| NEB10 | 10mm Bus Bar for mounting CENC4 / CENC16 / CENC35 Earth / Neutral Clamps | 10 |
| MC6 | MARKER CARD 6MM PITCH WITH 72 TAGS | 10 |
