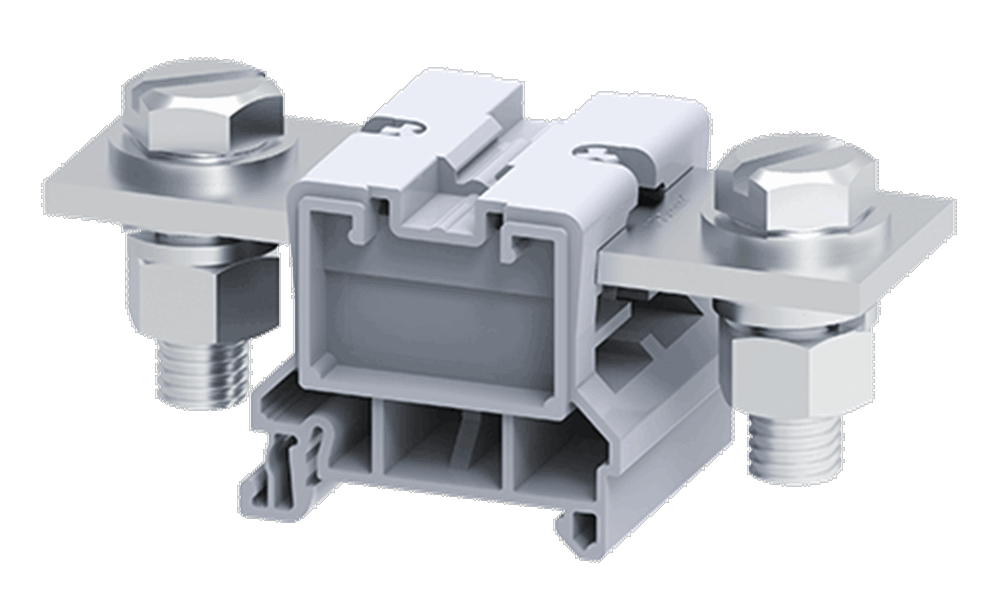

Connectwell CBB150 Stud Type Power Terminal Block
150 sq.mm Stud Type Power Terminal Blocks
CBB series Terminal Blocks are preferred for application using wires of large cross section. The Wire is crimped to a ring / fork lug and is screwed on to the flat current bar of the Terminal Block.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 1000 V | ||
| Rated Current | 309 A | ||
| Tightening Torque | 14 Nm | ||
| Housing Material | Polyamide | ||
| Product Function | Feed Through | ||
| Wire Entry Orientation | Side entry | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Stud Size | M12 | ||
| Operated by | Nut Driver / Screw Driver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 16 mm² | ||
| Conductor Cross Section Stranded max. | 150 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 8 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 300 kcmil | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 16 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 150 mm² | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 54.5 mm | ||
| Height with DIN 35 x 7.5 mm rail | 47.3 mm | ||
| Length | 110 mm | ||
| Width (Thickness) | 48 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CBB150 | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in Grey colour | 10 |
| CBB150BK | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in Black colour | 10 |
| CBB150BR | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in Brown colour | 10 |
| CBB150BU | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in Blue colour | 10 |
| CBB150GN | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in Green colour | 10 |
| CBB150O | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in Orange colour | 10 |
| CBB150R | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in Red colour | 10 |
| CBB150W | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in White colour | 10 |
| CBB150Y | 150 sq.mm Feed through Bolt/Nut Type Terminal Block in yellow colour | 10 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA202 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 25 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| PPCBB1 | Partition Plate in Grey colour | 50 |
| CA794/2 | Permanent Shorting Link for 2 way shorting | 10 |
| CA794/3 | Permanent Shorting Link for 3 way shorting | 10 |
| CA509/K16 | Marking Tag Blank suitable for CTS35UNA / CGT35U Terminal Blocks | 100 |
| CBBPC2/100 | Protective cover is available in 100 mm Length | 10 |
| CBBPC2/160 | Protective cover is available in 160 mm Length | 10 |
| CBBPC2/200 | Protective cover is available in 200 mm Length | 10 |
| CBBPC2/250 | Protective cover is available in 250 mm Length | 10 |
| MC16 | MARKER CARD 16MM PITCH WITH 24 TAGS | 10 |
