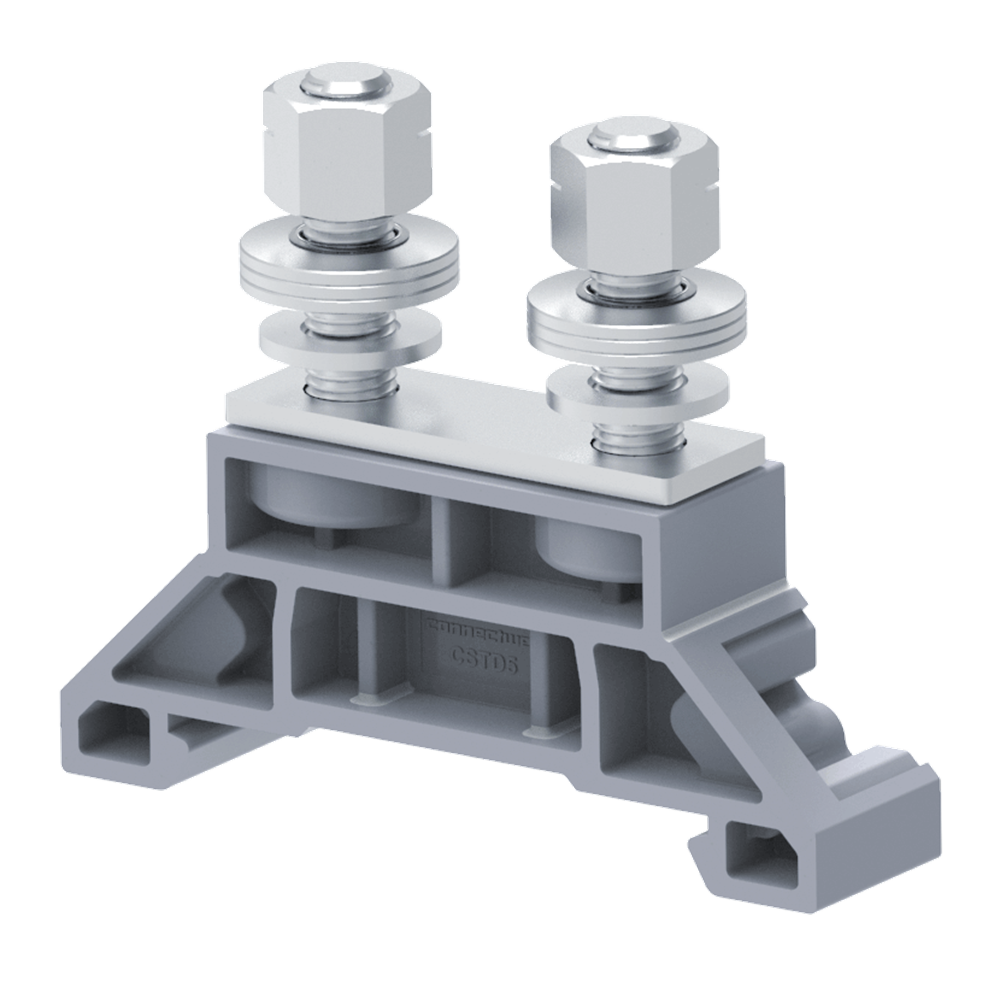

Connectwell CSTD5E16W Stud Type Terminal Block
16 sq.mm Stud Type Terminal Block.
These Terminal Blocks are preferred for applications where the connections are subjected to severe vibrations. The wire is crimped to ring type Lug and connected to the Stud Terminal Block. The CSTD5E16W Terminal Blocks suitable for wire sizes from 2.5 to 16 sq.mm. The self locking nut can then be fastened to complete the connection.
Description
| TECHNICAL DATA | |||
| Weight | 28 gms | ||
| Rated Voltage | 500 V | ||
| Rated Current | 65 A | ||
| Tightening Torque | 2.5 Nm | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Feed Through | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Stud Size | M5 x 19.5 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 2.5 mm² | ||
| Conductor Cross Section Stranded max. | 16 mm² | ||
| DIMENSIONS | |||
| Height | 43.5 mm | ||
| Length | 50 mm | ||
| Width (Thickness) | 14 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CSTD5E16W | 16 sq.mm Stud Type Terminal Block in Grey colour | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CSSTPC | Protective Cover | 10 |
| CSSTSP | spacer plate in grey color | 30 |
| SPCSST1 | End Plate / Partition Plate in grey color | 50 |
| SPCSST3 | Protective Cover Holding Plate | 50 |
| MC8 | MARKER CARD 8MM PITCH WITH 48 TAGS | 10 |
| CA202 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 25 |
