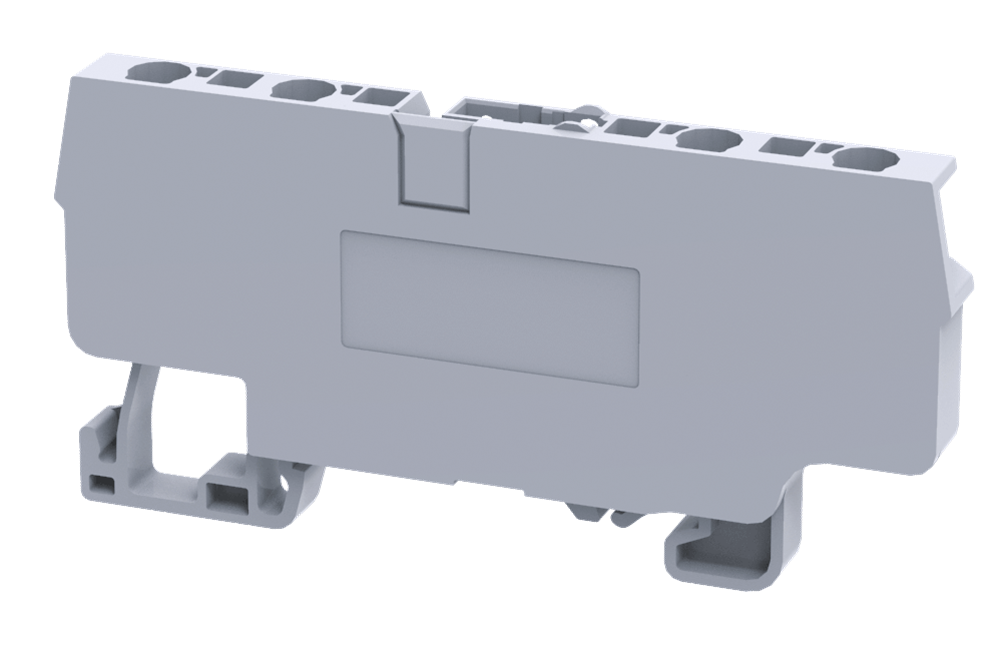

Connectwell CXCC2.5/4 Component Carrier Spring Clamp Terminal Block

2.5 sq.mm Component carrier spring clamp terminal block
These blocks are component carrier base. Various pluggable component carriers can be installed easily.

Add to quote
SKU: 31142af1d0f9 Categories: , ,

Description

TECHNICAL DATA
Rated Voltage 1000 V
Rated Current * A
Housing Material Polyamide
Standard Colour Grey
Product Function Feed Through
Wire Entry Orientation Top
Mounting Possibility DIN 35/DIN 35-15 Rail
Rated Surge Voltage 4 V
Pollution Degree 3
CONNECTION DATA
Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 2.5 mm²
Conductor Cross Section AWG/Kcmil min 22 AWG
Conductor Cross Section AWG/Kcmil max 12 AWG
Stripping Length 8 mm
DIMENSIONS
Height with DIN 35 x 15 mm rail 45.2 mm
Height with DIN 35 x 7.5 mm rail 37.6 mm
Length 74.7 mm
Width (Thickness) 5 mm
ORDERING INFORMATION
CAT. NO. DESCRIPTION STD. PACK
CXCC2.5/4 2.5 sq. mm 4 Wire Component Carrier compact spring clamp Terminal Block in Grey colour 50
ACCESSORIES
CAT. NO. DESCRIPTION STD. PACK
CA701-1M

Din 35 Rail unslotted 1 meter 50
CA701-2M

Din 35 Rail unslotted 2 meter 50
CA701-2M-S

Din 35 Rail slotted 2 meter 50
CA701-1M-S

Din 35 Rail slotted 1 meter 50
CA701-15-1M

Din 35 Rail 15 deep unslotted 1 meter 50
CA701-15-1M-S

Din 35 Rail 15 deep slotted 1 meter 50
CA701-15-2M

Din 35 Rail 15 deep unslotted 2 meter 50
CA701-15-2M-S

Din 35 Rail 15 deep slotted 2 meter 50
CA103

EndClamp in Polyamide suitable for Din 35/Din 35-15 rails 50
CA702

End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails 50
CA802

End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails 50
JX4/2

Shorting Link for 6 mm wide TB 100
JX4/3

Shorting Link for 6 mm wide TB 50
JX4/4

Shorting Link for 6 mm wide TB 50
JX4/5

Shorting Link for 6 mm wide TB 50
JX4/8

Shorting Link for 6 mm wide TB 10
JX4/10

Shorting Link for 6 mm wide TB 10
JX4/16

Shorting Link for 6 mm wide TB 10
CA509/K6

Blank Marking Tag 100
SCS0.6/3.5

Electricians Screwdriver for slotted screws 10
CPF

Component fuse plug for component terminal block 50
CFL6-60V

Fuse with 6-60V AC/DC LED Circuit 50
CFL110-240V

Fuse with 110-240V AC/DC LED Circuit 50
CPFL6-60V

Component fuse plug for component terminal block 6-60V 50
CPFL110-240V

Component fuse plug for component terminal block 110-240V 50
CC6D1

Component diode plug for component terminal block with 1N4007 Diode 50
CC6D2

Component diode plug for component terminal block with 1N4007 Diode 50
CIP

Isolation plug for component carrier terminal block 50
MC6

MARKER CARD 6MM PITCH WITH 72 TAGS 10

Downloads

CXCC2.5_4.pdf
