Connectwell CXCC4/3 Component Carrier Spring Clamp Terminal Block

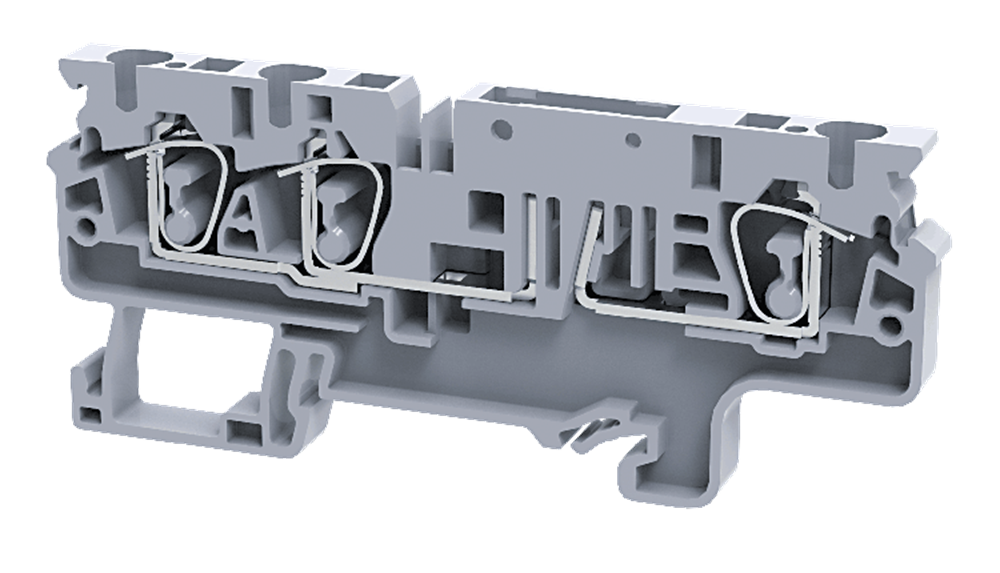

4 sq.mm Component carrier spring clamp terminal block
These blocks are used for measuring, control, regulatory circuits and for current transformer connection application. These blocks are component carrier base. Various pluggable component carriers can be installed easily. These component carriers have bulit in protection against incorrect polarity.
CPD1 & CPF component plugs are suitable for these terminal block.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 1000 V | ||
| Rated Current | * A | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Feed Through | ||
| Wire Entry Orientation | Top | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Rated Surge Voltage | 4 V | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 4 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 10 AWG | ||
| Stripping Length | 10 mm | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 69 mm | ||
| Height with DIN 35 x 7.5 mm rail | 61.5 mm | ||
| Length | 86.2 mm | ||
| Width (Thickness) | 6 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CXCC4/3 | 4 sq. mm 3 Wire Component Carrier compact spring clamp Terminal Block in Grey colour | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA202 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 25 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| EPCXS2.5 | End Plate in Grey colour | 50 |
| JX4/2 | Shorting Link for 6 mm wide TB | 100 |
| JX4/3 | Shorting Link for 6 mm wide TB | 50 |
| JX4/4 | Shorting Link for 6 mm wide TB | 50 |
| JX4/5 | Shorting Link for 6 mm wide TB | 50 |
| JX4/8 | Shorting Link for 6 mm wide TB | 10 |
| JX4/10 | Shorting Link for 6 mm wide TB | 10 |
| JX4/16 | Shorting Link for 6 mm wide TB | 10 |
| CA509/K6 | Blank Marking Tag | 100 |
