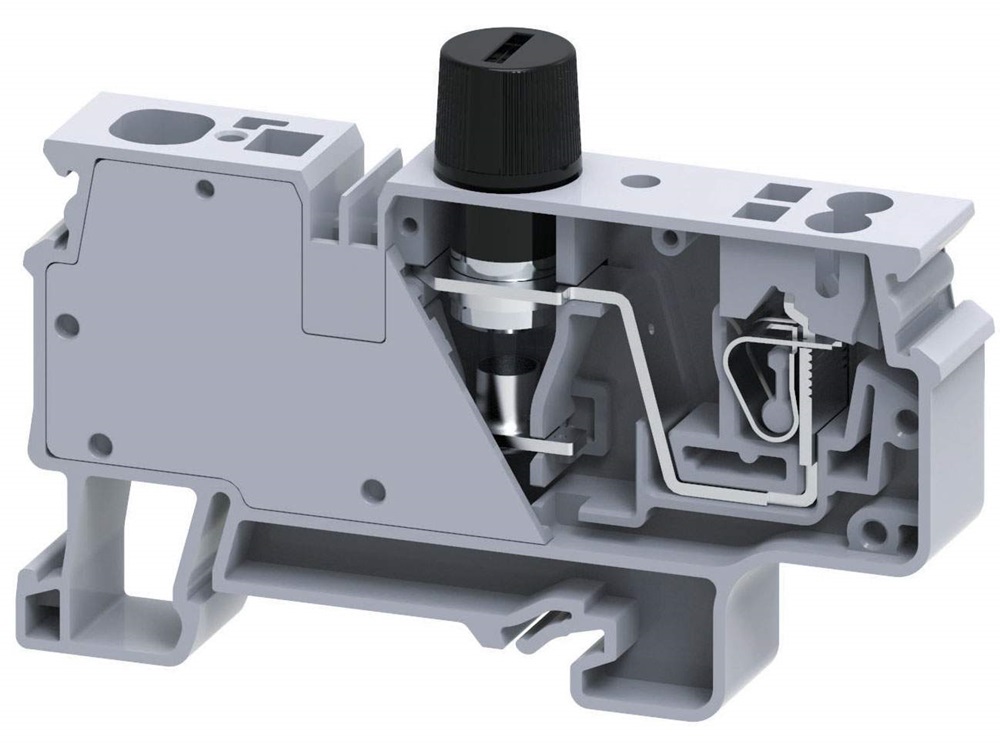

Connectwell CXVF2.5 O/P Spring Clamp vertical Fuse Terminal Block
6 sq.mm I/P 2 X 2.5 sqmm O/P Spring Clamp vertical Fuse Terminal Blocks
The Spring Clamp is operated by using a screw driver to provide an access to the wire through an opening in the spring clamp. The inserted wire gets clamped on to the current bar when the screw driver is removed.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 1000 V | ||
| Rated Current | 10 A | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Single Level Fuse | ||
| Wire Entry Orientation | Top | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screw Driver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min.- Input Side | 0.2 mm² | ||
| Conductor Cross Section Stranded max. – Input Side | 10 mm² | ||
| Conductor Cross Section Stranded min.- Output Side | 0.2 mm² | ||
| Conductor Cross Section Stranded max.- Output Side | 2.5 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 8 AWG | ||
| Stripping Length | 10 mm | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 50.5 mm | ||
| Height with DIN 35 x 7.5 mm rail | 43 mm | ||
| Length | 75 mm | ||
| Width (Thickness) | 12 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CXVF2.5A | 1X6mm²I/P 2X2.5mm²O/P Ø5X20mm FUSE Terminal Block | 50 |
| CXVF2.5B | 1X6mm²I/P 2X2.5mm²O/P Ø5X25mm FUSE Terminal Block | 50 |
| CXVF2.5C | 1X6mm²I/P 2X2.5mm²O/P Ø6.3X32mm FUSE Terminal Block | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA103 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| JX4/2 | Shorting Link for 6 mm wide TB | 100 |
| JX4/3 | Shorting Link for 6 mm wide TB | 50 |
| JX4/4 | Shorting Link for 6 mm wide TB | 50 |
| JX4/5 | Shorting Link for 6 mm wide TB | 50 |
| JX4/8 | Shorting Link for 6 mm wide TB | 10 |
| JX4/10 | Shorting Link for 6 mm wide TB | 10 |
| JX4/16 | Shorting Link for 6 mm wide TB | 10 |
| SCS0.6/3.5 | Electricians Screwdriver for slotted screws | 10 |
| CA509/K12 | Marking Tag Blank suitable for CTS16U / CTS25UN / CGT16N / CDB25 / CMDB25 / CSC16T / CSCG16T / CY16 / CYG16 Terminal Blocks | 100 |
| MC12 | MARKER CARD 12MM PITCH WITH 36 TAGS | 10 |
