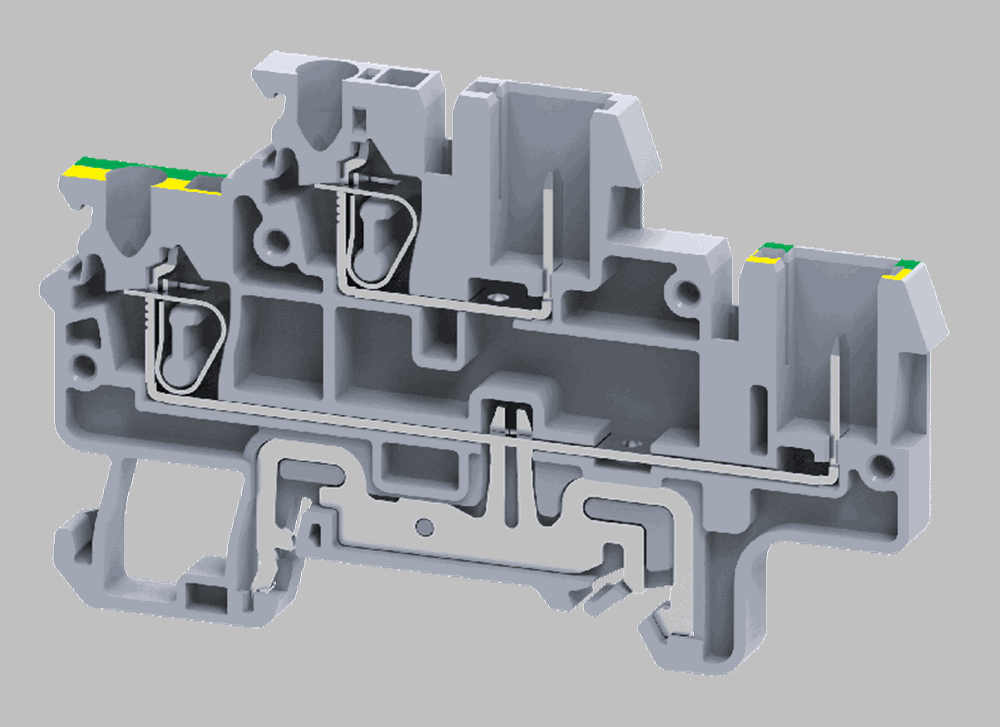

Connectwell CXDLG2.5/2B Double Level Ground/Earth Spring Clamp Terminal Block

2.5 sq.mm Double Level Ground/Earth Spring Clamp Terminal Blocks
These Terminal Blocks have specially designed alloy feet which help in achieving very low contact resistance and vibration proof grounding with the DIN rails. They green/yellow colour coded as industry standards. One side can be plugged with CX2.5PN plugs.

Add to quote
SKU: fe18df59e331 Categories: , ,

Description

TECHNICAL DATA
Rated Voltage 300 V
Rated Current 20* A
Housing Material Polyamide
Standard Colour Green-Yellow
Product Function Earthing/Grounding
Wire Entry Orientation Top
Mounting Possibility DIN 35/DIN 35-15 Rail
Operated by Screw Driver
Rated Surge Voltage 8 KV
Pollution Degree 3
CONNECTION DATA
Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 2.5 mm²
Conductor Cross Section AWG/Kcmil min 24 AWG
Conductor Cross Section AWG/Kcmil max 12 AWG
Conductor Cross Section Stranded with Ferrule/Lug min 0.2 mm²
Conductor Cross Section Stranded with Ferrule/Lug max 2.5 mm²
2 Conductors with same Cross Section Stranded min 0.2 mm²
2 Conductor with same Cross Section Stranded max 1 mm²
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 4 mm²
Stripping Length 10 mm
DIMENSIONS
Height with DIN 35 x 15 mm rail 57 mm
Height with DIN 35 x 7.5 mm rail 49.5 mm
Length 78 mm
Width (Thickness) 5 mm
ORDERING INFORMATION
CAT. NO. DESCRIPTION STD. PACK
CXDLG2.5/2B 2.5 mm² 2 LEVEL PLUGABLE SP CL GR 50
ACCESSORIES
CAT. NO. DESCRIPTION STD. PACK
CA701-1M

Din 35 Rail unslotted 1 meter 50
CA701-2M

Din 35 Rail unslotted 2 meter 50
CA701-2M-S

Din 35 Rail slotted 2 meter 50
CA701-1M-S

Din 35 Rail slotted 1 meter 50
CA701-15-1M

Din 35 Rail 15 deep unslotted 1 meter 50
CA701-15-1M-S

Din 35 Rail 15 deep slotted 1 meter 50
CA701-15-2M

Din 35 Rail 15 deep unslotted 2 meter 50
CA701-15-2M-S

Din 35 Rail 15 deep slotted 2 meter 50
CA103

EndClamp in Polyamide suitable for Din 35/Din 35-15 rails 50
CA104

EndClamp in Polyamide suitable for Din 35/Din 35-15 rails 50
EPCX2.5/3

End Plate in Grey colour 50
EPCX2.5/3BU

End Plate in Blue colour 50
JX2.5/2

Shorting Link for 2.5 sq mm series 100
JX2.5/3

Shorting Link for 2.5 sq mm series 50
JX2.5/4

Shorting Link for 2.5 sq mm series 50
JX2.5/5

Shorting Link for 2.5 sq mm series 50
JX2.5/6

Shorting Link for 2.5 sq mm series 50
JX2.5/7

Shorting Link for 2.5 sq mm series 10
JX2.5/8

Shorting Link for 2.5 sq mm series 10
JX2.5/10

Shorting Link for 2.5 sq mm series 10
JX2.5/20

Shorting Link for 2.5 sq.mm series 10
CA509/K5

Blank Marking Tag 100
WLX2.5

Warning label suitable for 5mm wide terminal block 50
SCS0.5/3

Electricians Screwdriver for slotted screws 10
CXPOLN

Coding Pin 25
CX2.5PN

2.5 mm² 1 POLE PLUG SPRING CLAMP TB 100
CX2.5PNBU

2.5 mm² 1 POLE PLUG SPRING CLAMP TB IN BLUE COLOR 100
CX2.5PNYG

2.5 mm² 1 POLE PLUG SPRING CLAMP TB IN YELLOW GREEN COLOR 100
CX2.5PLN

2.5 mm² 1 POLE PLUG SP CL STACK END TB 100
CX2.5PN/2

2.5 mm² 2 POLE PLUG SPRING CLAMP TB 100
CX2.5PN/3

2.5 mm² 3 POLE PLUG SPRING CLAMP TB 100
CX2.5PN/4

2.5 mm² 4 POLE PLUG SPRING CLAMP TB 100
CX2.5PN/5

2.5 mm² 5 POLE PLUG SPRING CLAMP TB 100
CX2.5PN/6

2.5 mm² 6 POLE PLUG SPRING CLAMP TB 25
CX2.5PN/7

2.5 mm² 7 POLE PLUG SPRING CLAMP TB 25
CX2.5PN/8

2.5 mm² 8 POLE PLUG SPRING CLAMP TB 25
CX2.5PN/9

2.5 mm² 9 POLE PLUG SPRING CLAMP TB 25
CX2.5PN/10

2.5 mm² 10 POLE PLUG SPRING CLAMP TB 25
CX2.5PN/11

2.5 mm² 11 POLE PLUG SPRING CLAMP TB 10
CX2.5PN/12

2.5 mm² 12 POLE PLUG SPRING CLAMP TB 10
CX2.5PN/13

2.5 mm² 13 POLE PLUG SPRING CLAMP TB 10
CX2.5PN/14

2.5 mm² 14 POLE PLUG SPRING CLAMP TB 10
CX2.5PN/15

2.5 mm² 15 POLE PLUG SPRING CLAMP TB 10
CXLPN

Locking Pin for CX2.5PN/CX2.5SN 25
MC5

MARKER CARD 5MM PITCH WITH 84 TAGS 10
