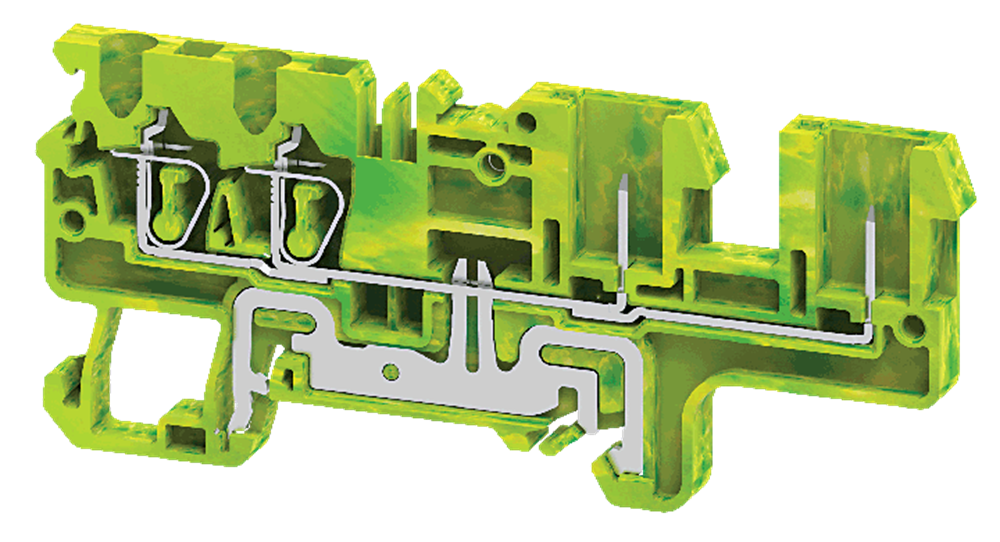

Connectwell CXG2.5/4/2B Ground/Earth Spring Clamp Terminal Block

2.5 sq.mm Ground/Earth Spring Clamp Terminal Blocks
These Terminal Blocks have specially designed alloy feet which help in achieving very low contact resistance and vibration proof grounding with the DIN rails. They green/yellow colour coded as industry standards.

Add to quote
SKU: e150f65ccbbc Categories: , ,

Description

TECHNICAL DATA
Housing Material Polyamide
Product Function Earthing/Grounding
Wire Entry Orientation Top
Mounting Possibility DIN 35/DIN 35-15 Rail
Operated by Screw Driver
Rated Surge Voltage 8 KV
Pollution Degree 3
CONNECTION DATA
Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 2.5 mm²
Conductor Cross Section AWG/Kcmil min 24 AWG
Conductor Cross Section AWG/Kcmil max 12 AWG
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 4 mm²
Stripping Length 10 mm
DIMENSIONS
Height with DIN 35 x 15 mm rail 45.5 mm
Height with DIN 35 x 7.5 mm rail 38 mm
Length 74.7 mm
Width (Thickness) 5 mm
ORDERING INFORMATION
CAT. NO. DESCRIPTION STD. PACK
CXG2.5/4/2B 2.5 sq.mm Earthing Spring Clamp Terminal Block in Grey colour 50
ACCESSORIES
CAT. NO. DESCRIPTION STD. PACK
CA701-1M

Din 35 Rail unslotted 1 meter 50
CA701-2M

Din 35 Rail unslotted 2 meter 50
CA701-2M-S

Din 35 Rail slotted 2 meter 50
CA701-1M-S

Din 35 Rail slotted 1 meter 50
CA701-15-1M

Din 35 Rail 15 deep unslotted 1 meter 50
CA701-15-1M-S

Din 35 Rail 15 deep slotted 1 meter 50
CA701-15-2M

Din 35 Rail 15 deep unslotted 2 meter 50
CA701-15-2M-S

Din 35 Rail 15 deep slotted 2 meter 50
CA103

EndClamp in Polyamide suitable for Din 35/Din 35-15 rails 50
CA702

End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails 50
CA802

End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails 50
EPCX2.5/4

END PLATE FOR CX2.5/4&CXK2.5/4&CXG2.5/4 50
EPCX2.5/4O

END PLATE FOR CX2.5/4 ORANGE 50
PPCX4/4

Partition Plate in Grey colour 50
JX2.5/2

Shorting Link for 2.5 sq mm series 100
JX2.5/3

Shorting Link for 2.5 sq mm series 50
JX2.5/4

Shorting Link for 2.5 sq mm series 50
JX2.5/5

Shorting Link for 2.5 sq mm series 50
JX2.5/6

Shorting Link for 2.5 sq mm series 50
JX2.5/7

Shorting Link for 2.5 sq mm series 10
JX2.5/8

Shorting Link for 2.5 sq mm series 10
JX2.5/10

Shorting Link for 2.5 sq mm series 10
JX2.5/20

Shorting Link for 2.5 sq.mm series 10
CA509/K5

Blank Marking Tag 100
WLX2.5

Warning label suitable for 5mm wide terminal block 50
SCS0.5/3

Electricians Screwdriver for slotted screws 10
JXS10/2.5

Step Down Shorting Link for CX series 10
JXS6/2.5

Step Down Shorting Link for CX series 10
MC5

MARKER CARD 5MM PITCH WITH 84 TAGS 10

Downloads

CXG2.5_4_2B.pdf
