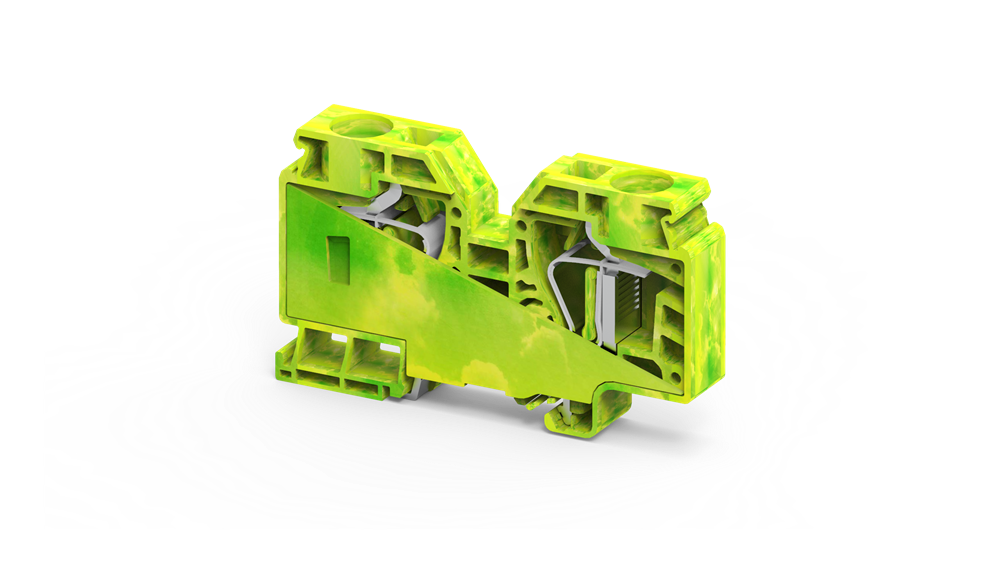

Connectwell CXG35 Ground/Earth Spring Clamp Terminal Block
CXG35 35 sq.mm Spring Clamp Ground Terminal Blocks
The Spring Clamp is operated by using a screw driver to provide an access to the wire through an opening in the spring clamp. The inserted wire gets clamped on to the current bar when the screw driver is removed.
Description
| TECHNICAL DATA | |||
| Housing Material | Polyamide | ||
| Standard Colour | Yellow Green | ||
| Product Function | Earthing/Grounding | ||
| Wire Entry Orientation | Top Entry | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screw Driver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 6 mm² | ||
| Conductor Cross Section Stranded max. | 35 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 10 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 2 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 6 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 35 mm² | ||
| Conductor Cross Section Solid min | 6 mm² | ||
| Conductor Cross Section Solid max | 35 mm² | ||
| Stripping Length | 23 mm | ||
| DIMENSIONS | |||
| Height | 59.5 mm | ||
| Height with DIN 35 x 15 mm rail | 67.8 mm | ||
| Height with DIN 35 x 7.5 mm rail | 60.3 mm | ||
| Length | 100 mm | ||
| Width (Thickness) | 16 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CXG35 | CXG35 35 sq.mm Spring Clamp Ground Terminal Blocks in Yellow Green Colour | 15 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| EPCSC16T | End Plate in Grey. | 50 |
| EPCSC16TBU | End Plate in Blue colour | 50 |
| CA509/K12 | Marking Tag Blank suitable for CTS16U / CTS25UN / CGT16N / CDB25 / CMDB25 / CSC16T / CSCG16T / CY16 / CYG16 Terminal Blocks | 100 |
| SWL16 | Warning label suitable for 12mm wide terminal block | 50 |
| SCS1/5.5 | Electricians Screwdriver for slotted screws | 10 |
| MC12 | MARKER CARD 12MM PITCH WITH 36 TAGS | 10 |
