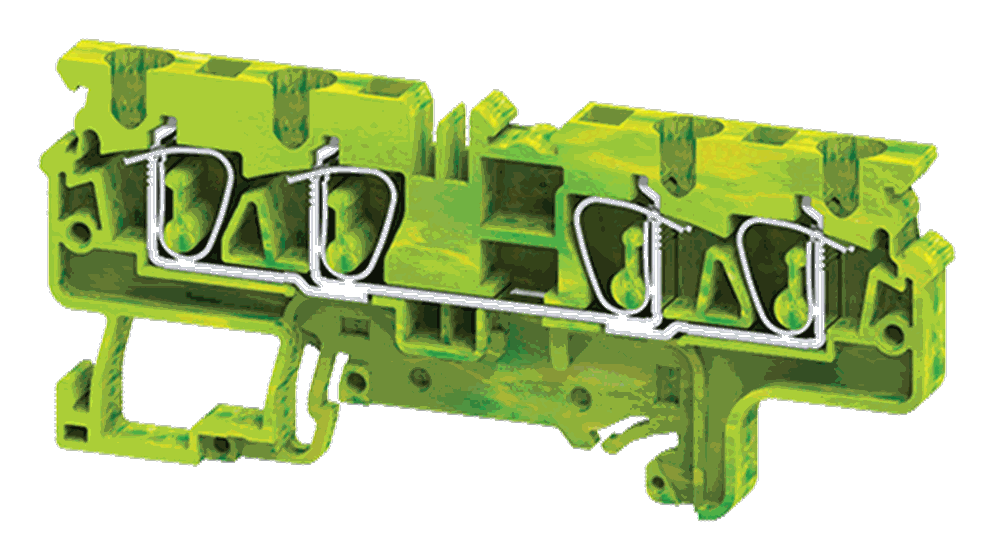

Connectwell CXG4/4 Ground/Earth Spring Clamp Terminal Block

4 sq.mm Ground/Earth Spring Clamp Terminal Blocks
These Terminal Blocks have specially designed alloy feet which help in achieving very low contact resistance and vibration proof grounding with the DIN rails. They green/yellow colour coded as industry standards.

Add to quote
SKU: 1383cf5232bd Categories: , ,

Description

TECHNICAL DATA
Housing Material Polyamide
Product Function Earthing/Grounding
Wire Entry Orientation Top
Mounting Possibility DIN 35/DIN 35-15 Rail
Operated by Screw Driver
Rated Surge Voltage 8 KV
Pollution Degree 3
CONNECTION DATA
Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 4 mm²
Conductor Cross Section AWG/Kcmil min 24 AWG
Conductor Cross Section AWG/Kcmil max 10 AWG
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 6 mm²
Stripping Length 10 mm
DIMENSIONS
Height with DIN 35 x 15 mm rail 45.2 mm
Height with DIN 35 x 7.5 mm rail 37.6 mm
Length 86.2 mm
Width (Thickness) 6 mm
ORDERING INFORMATION
CAT. NO. DESCRIPTION STD. PACK
CXG4/4 4 sq.mm Earthing Spring Clamp Terminal Block in Grey colour 50
ACCESSORIES
CAT. NO. DESCRIPTION STD. PACK
CA701-1M

Din 35 Rail unslotted 1 meter 50
CA701-2M

Din 35 Rail unslotted 2 meter 50
CA701-2M-S

Din 35 Rail slotted 2 meter 50
CA701-1M-S

Din 35 Rail slotted 1 meter 50
CA701-15-1M

Din 35 Rail 15 deep unslotted 1 meter 50
CA701-15-1M-S

Din 35 Rail 15 deep slotted 1 meter 50
CA701-15-2M

Din 35 Rail 15 deep unslotted 2 meter 50
CA701-15-2M-S

Din 35 Rail 15 deep slotted 2 meter 50
CA103

EndClamp in Polyamide suitable for Din 35/Din 35-15 rails 50
CA702

End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails 50
CA802

End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails 50
EPCX4/3

End Plate in Grey colour 50
EPCX4/3O

End Plate in orange colour 50
PPCX4/3

Partition Plate in Grey colour 50
PPCX4/3O

Partition Plate in Orange colour 50
JX4/2

Shorting Link for 6 mm wide TB 100
JX4/3

Shorting Link for 6 mm wide TB 50
JX4/4

Shorting Link for 6 mm wide TB 50
JX4/5

Shorting Link for 6 mm wide TB 50
JX4/8

Shorting Link for 6 mm wide TB 10
JX4/10

Shorting Link for 6 mm wide TB 10
JX4/16

Shorting Link for 6 mm wide TB 10
CA509/K6

Blank Marking Tag 100
SCS0.6/3.5

Electricians Screwdriver for slotted screws 10
MC6

MARKER CARD 6MM PITCH WITH 72 TAGS 10
