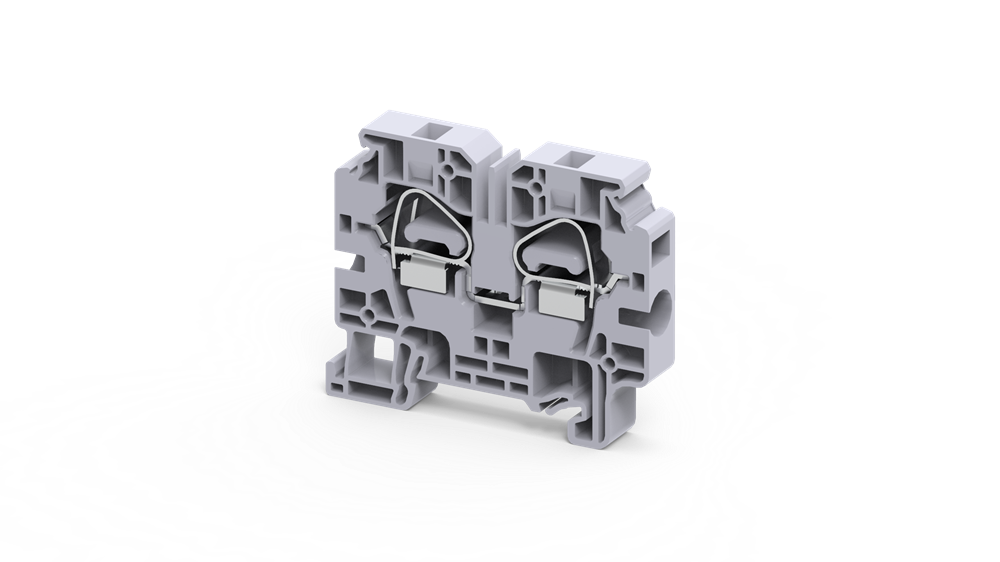

Connectwell CXS10 Spring Clamp Feed Through Side Entry Terminal Block
10 sq.mm Spring Clamp Feed Through Side Entry Terminal Blocks
The Spring Clamp is operated by using a screw driver to provide an access to the wire through an opening in the spring clamp. The inserted wire gets clamped on to the current bar when the screw driver is removed.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 1000 V | ||
| Rated Current | 57 A | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Feed Through | ||
| Wire Entry Orientation | Side | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screw Driver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 10 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 6 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 10 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.5 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 2.5 mm² | ||
| Stripping Length | 16 mm | ||
| DIMENSIONS | |||
| Height | 53 mm | ||
| Height with DIN 35 x 15 mm rail | 61.3 mm | ||
| Height with DIN 35 x 7.5 mm rail | 53.8 mm | ||
| Length | 65.3 mm | ||
| Width (Thickness) | 10 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CXS10 | 10 sq.mm Feed Through Spring Clamp Side Entry Terminal Block in Grey colour | 50 |
| CXS10BU | 10 sq.mm Feed Through Spring Clamp Side Entry Terminal Block in Blue colour | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| EPCXS6 | End Plate in Grey Colour | 50 |
| JX6/2 | Shorting Link for 8 mm wide TB | 100 |
| JX6/3 | Shorting Link for 8 mm wide TB | 50 |
| JX6/4 | Shorting Link for 8 mm wide TB | 50 |
| JX6/10 | Shorting Link for 8 mm wide TB | 10 |
| CA509/K8 | Marking Tag with Vertical printing. | 100 |
| CA103 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| CA104 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| GMH8 | Group Marker suitable for mounting on CA103 | 100 |
| GMH8N | Group Marker suitable for mounting on CA103 | 100 |
| SCS0.8/4 | Electricians Screwdriver for slotted screws | 10 |
| SCS0.8/4I | Insulated Electricians Screwdriver for slotted screws | 10 |
| MC8 | MARKER CARD 8MM PITCH WITH 48 TAGS | 10 |
