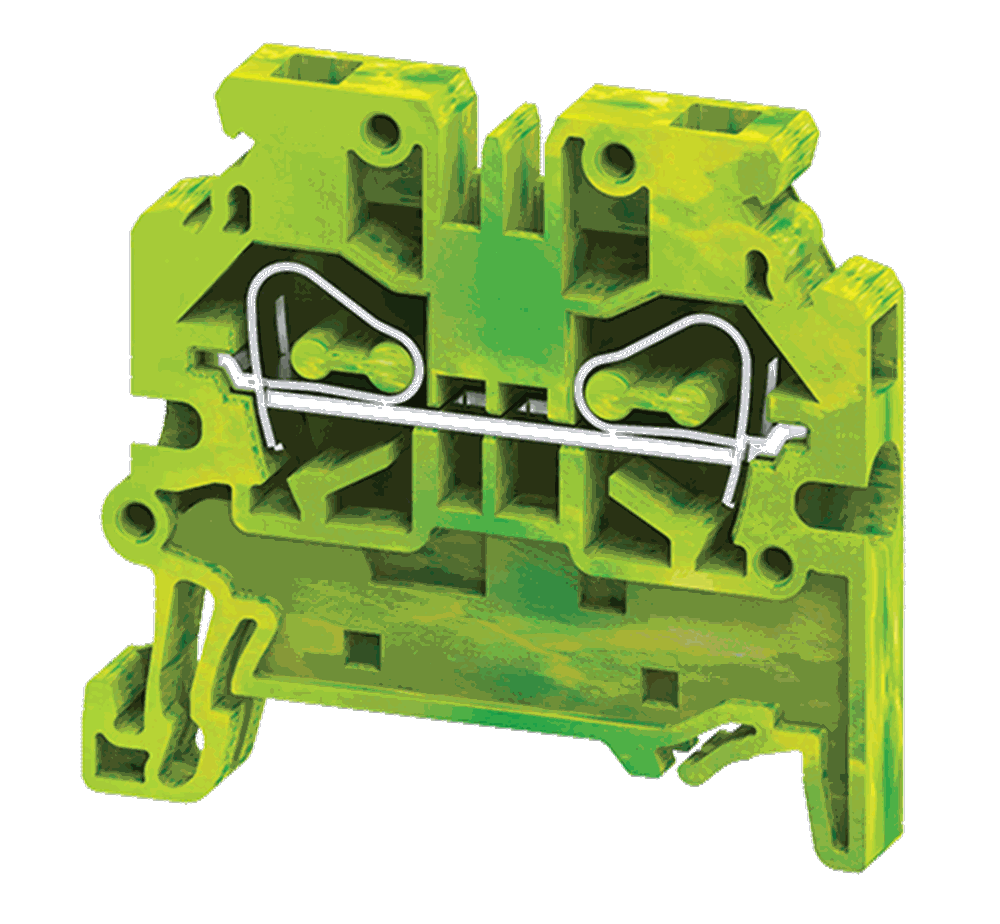

Connectwell CXSG4 Through Ground/Earth Spring Clamp Terminal Block
4 sq.mm feed Through Ground/Earth Spring Clamp Terminal Blocks
These Terminal Blocks have specially designed alloy feet which help in achieving very low contact resistance and vibration proof grounding with the DIN rails. They green/yellow colour coded as industry standards
Description
| TECHNICAL DATA | |||
| Housing Material | Polyamide | ||
| Product Function | Earthing/Grounding | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 4 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 10 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 4 mm² | ||
| 2 Conductors with same Cross Section Stranded min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded max | 1.5 mm² | ||
| Conductor Cross Section Solid min | 0.2 mm² | ||
| Conductor Cross Section Solid max | 6 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 1.5 mm² | ||
| Stripping Length | 10 mm | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 50.8 mm | ||
| Height with DIN 35 x 7.5 mm rail | 43.3 mm | ||
| Length | 45.9 mm | ||
| Width (Thickness) | 6 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CXSG4 | 4 sq.mm Spring Clamp Grounding/Earthing Side Entry Terminal Block | 100 |
