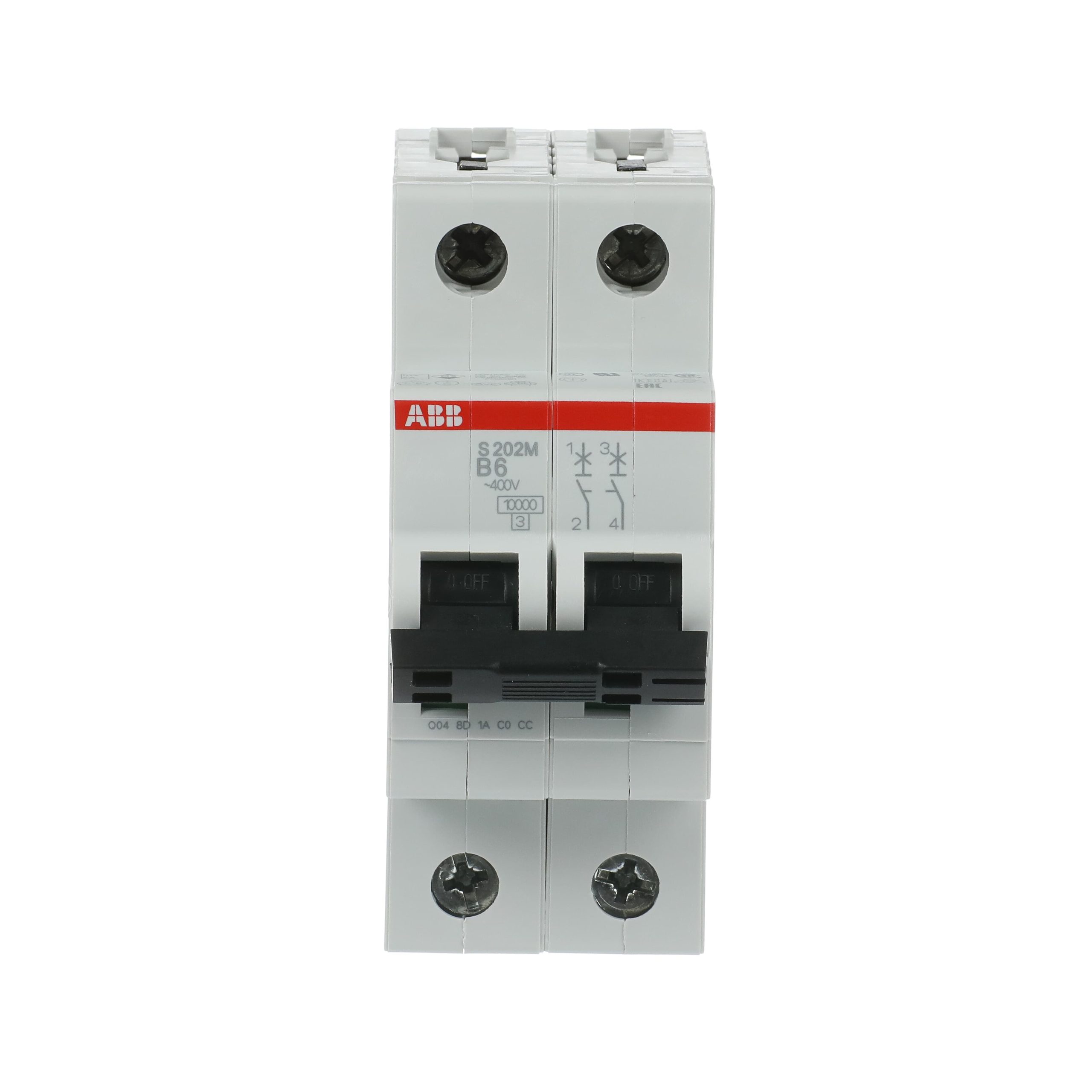

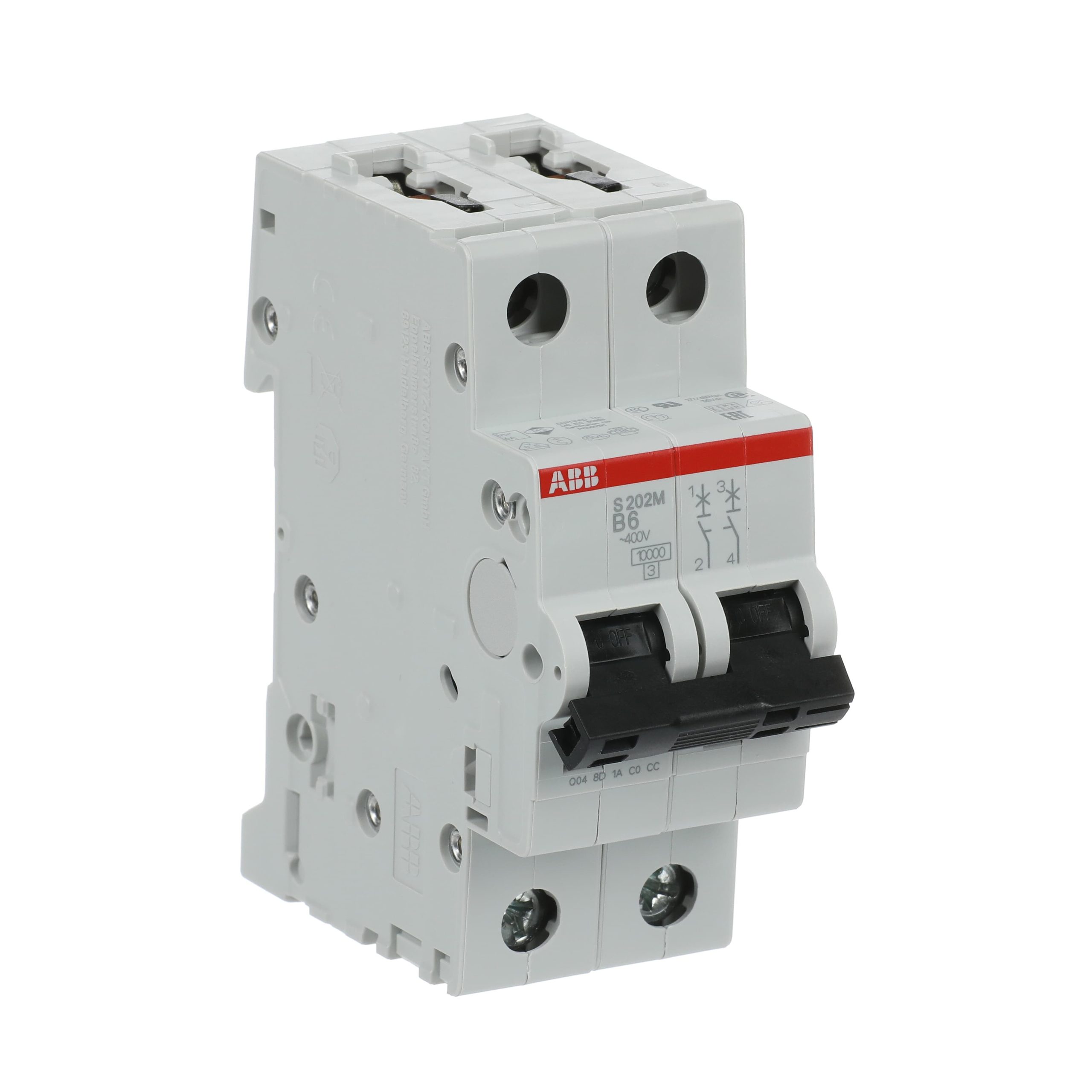

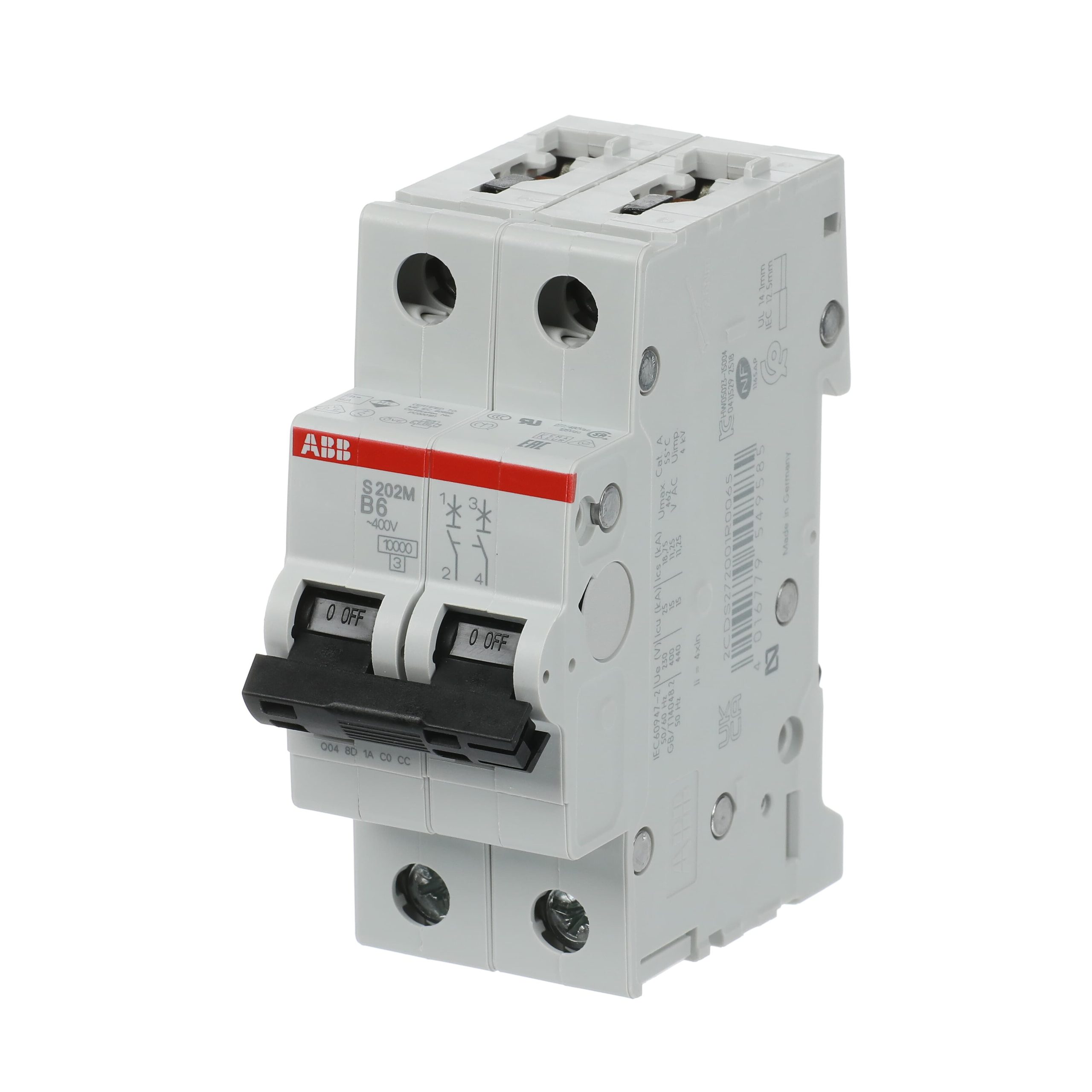

ABB S202M-B6 Miniature Circuit Breaker – 2P – B – 6 A
General Information
| Extended Product Type: | S202M-B6 |
| Product ID: | 2CDS272001R0065 |
| EAN: | 4016779549585 |
| Catalog Description: | S202M-B6 Miniature Circuit Breaker – 2P – B – 6 A |
| Long Description: | System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. |
Description
| Additional Information | |
| Product Name: | Miniature Circuit Breaker |
| Certificates and Declarations | |
| Standards: | IEC/EN 60898-1 CSA 22.2 No. 235 IEC/EN 60947-2 UL 1077 |
| Dimensions | |
| Product Net Weight: | 0.25 kg |
| Product Net Depth / Length: | 69 mm |
| Product Net Height: | 88 mm |
| Product Net Width: | 35 mm |
| Technical | |
| Rated Impulse Withstand Voltage (Uimp): | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
| Rated Frequency (f): | 50 / 60 Hz |
| Rated Current (In): | 6 A |
