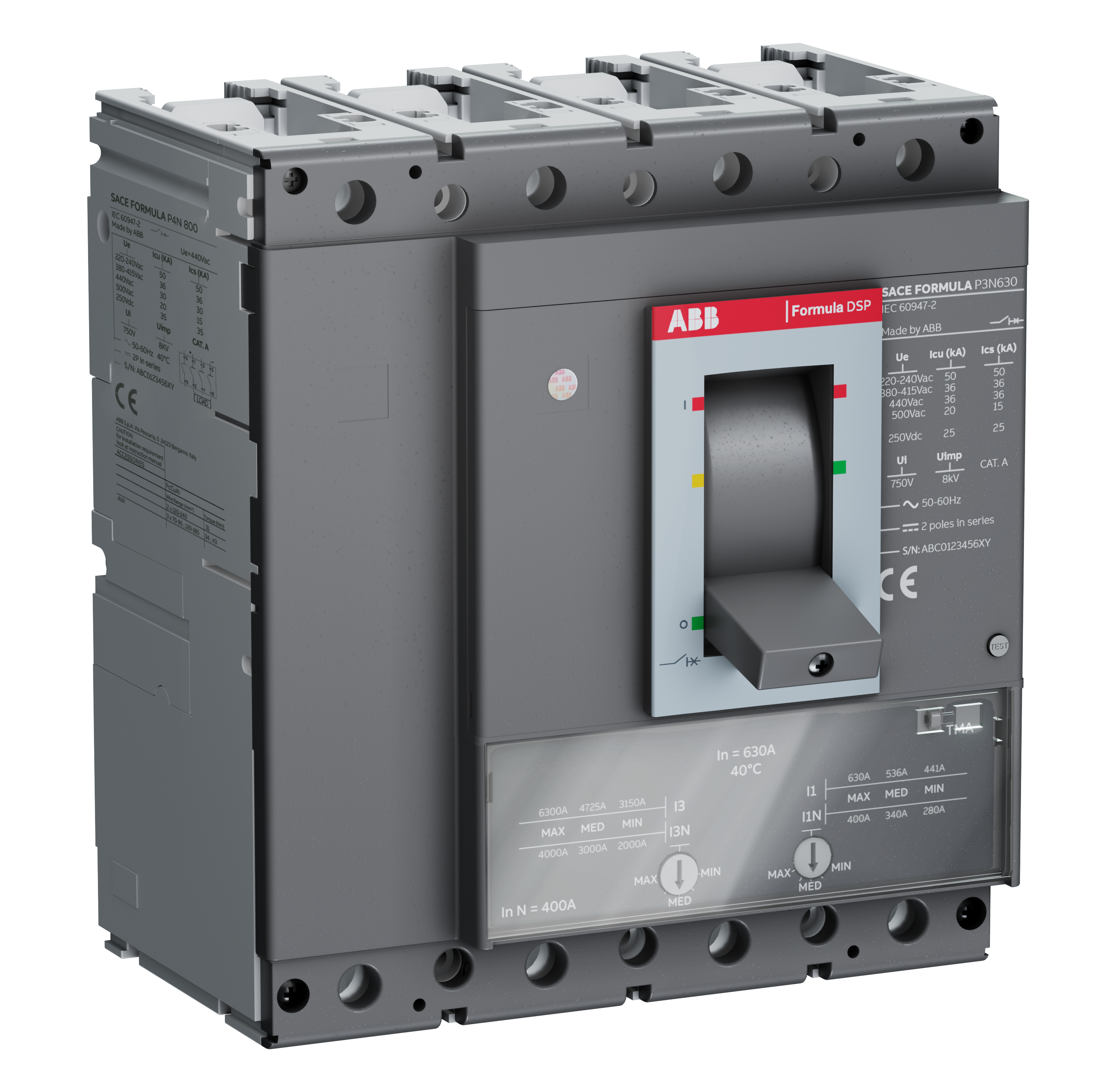

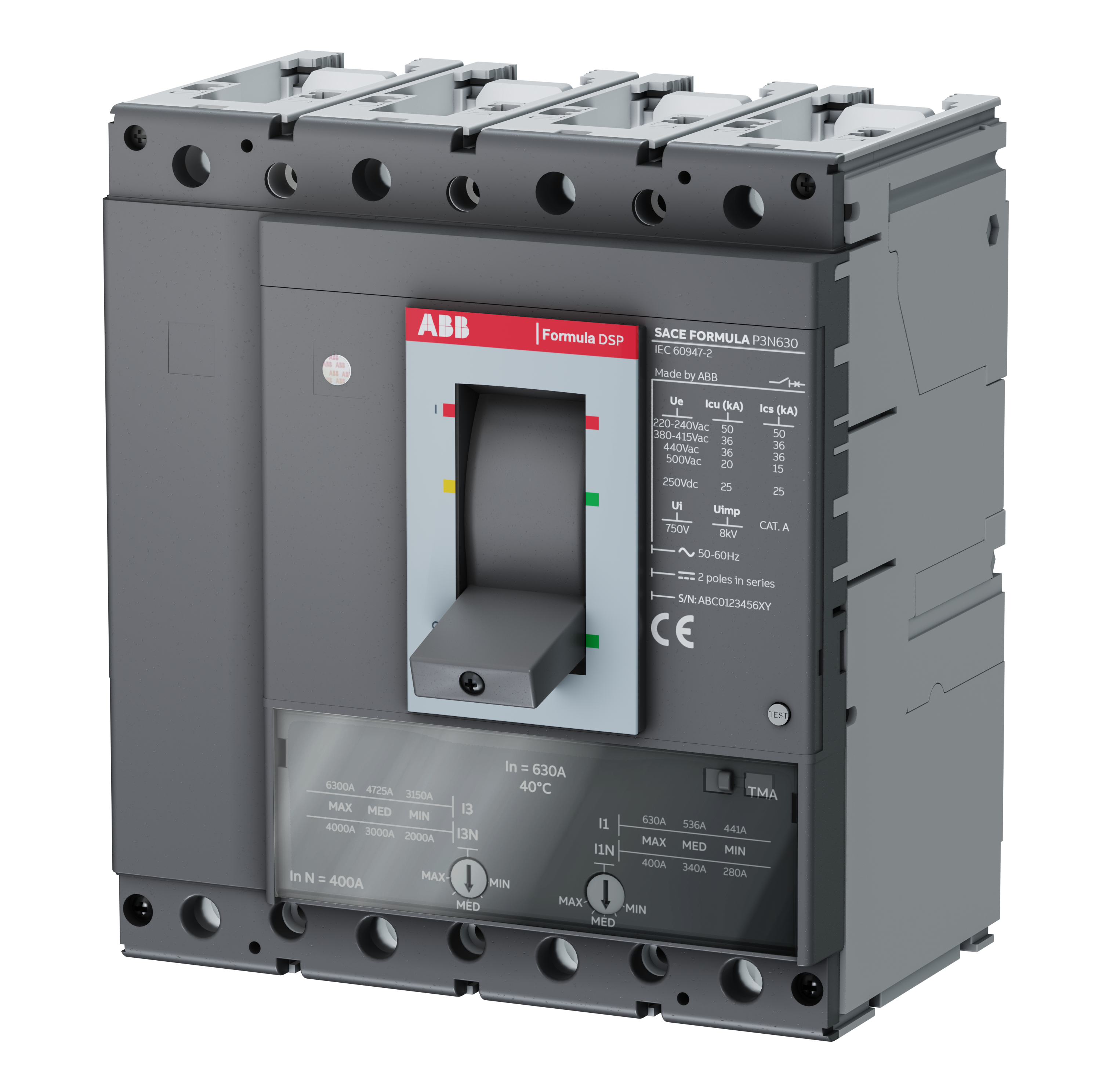

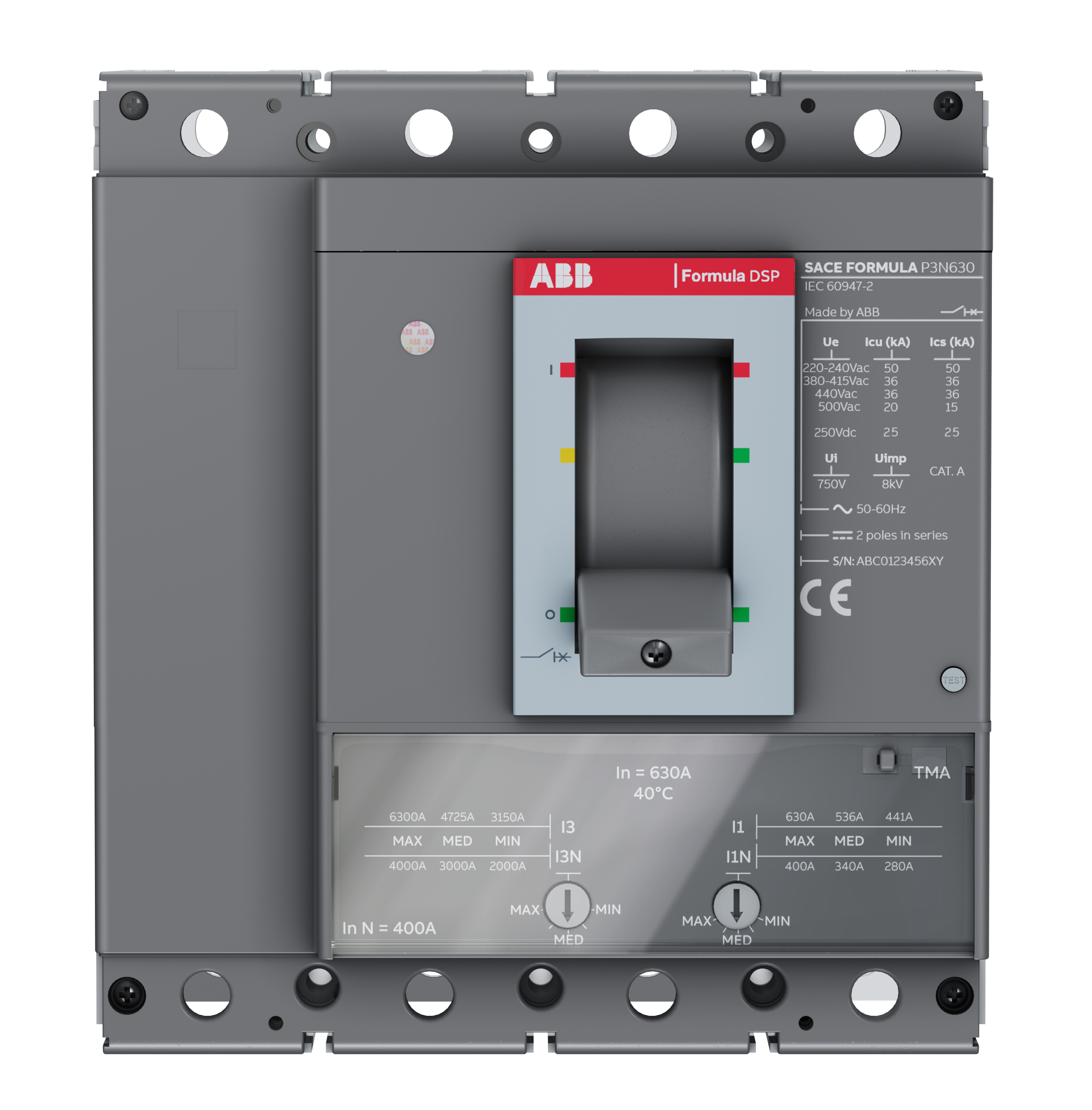

ABB P3S 400 TMA 400-4000 4p F F
General Information
| Extended Product Type: | P3S 400 TMA 400-4000 4p F F InN=100%In |
| Product ID: | 1SDA116387R1 |
| EAN: | 8056221084956 |
| Catalog Description: | P3S 400 TMA 400-4000 4p F F InN=100%In |
| Long Description: | C.BREAKER FORMULA DSP P3S 400 FIXED WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMA R 400 I3=2000…4000 A FULLY RATED NEUTRAL |
Description
| Material Compliance | |
| REACH Declaration: | REACh Declaration ABB Sace circuit breakers |
| RoHS Information: | RoHS Declaration ABB Sace circuit breakers |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT): | CMRT – Conflict Minerals Reporting Template |
| Toxic Substances Control Act – TSCA: | Toxic Substances Control Act (TSCA) declaration |
| Environmental | |
| Environmental Information: | Breakers – Packaging disposal information |
| Ordering | |
| EAN: | 8056221084956 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Dimensions | |
| Product Net Width: | 186 mm |
| Product Net Height: | 205 mm |
| Product Net Depth / Length: | 103 mm |
| Product Net Weight: | 5.8 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 248 mm |
| Package Level 1 Height: | 240 mm |
| Package Level 1 Depth / Length: | 285 mm |
| Package Level 1 Gross Weight: | 5.8 kg |
| Package Level 1 EAN: | 8056221084956 |
| Additional Information | |
| Circuit Breaker Type to be Associated: | Power Distribution |
| Product Main Type: | SACE FORMULA DSP |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | Automatic Circuit Breaker |
| Suitable For: | P3 |
| Version: | F |
| Technical | |
| Current Type: | AC/DC |
| Mechanical Durability: | 15000 cycle 240 cycles per hour |
| Number of Poles: | 4P |
| Power Loss: | 24.10 W |
| Rated Current (In): | 400 A |
| Rated Frequency (f): | 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 2000…4000 A |
| Rated Insulation Voltage (Ui): | 750 V |
| Rated Operational Voltage: | 500 V AC 250 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (240 V AC) 80 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 18 kA (250 V DC) 2 Poles in Series 35 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (240 V AC) 80 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 25 kA (250 V DC) 2 Poles in Series 35 kA |
| Rated Uninterrupted Current (Iu): | 400 A |
| Rated Voltage (Ur): | 500 V AC 250 V DC |
| Release: | TMA |
| Release Type: | TM |
| Setting Range: | 280…400 A |
| Short-Circuit Performance Level: | S |
| Standards: | IEC |
| Sub-type: | P3 |
| Terminal Connection Type: | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information: | Catalogue (.PDF) [ZH] FORMULA DSP MCCB |
| Instructions and Manuals: | 1SDH002124A1001 |
| Classifications | |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
