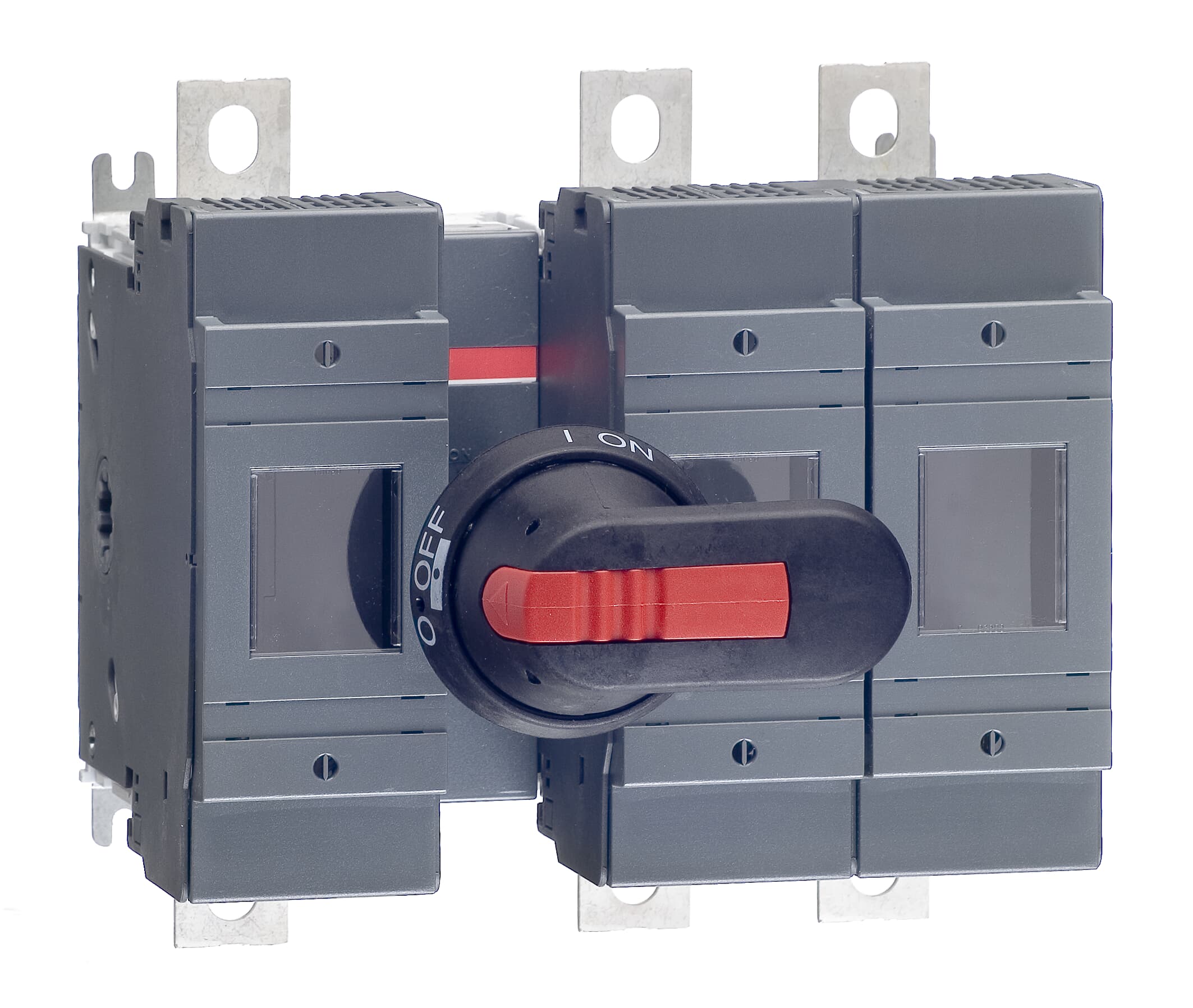

ABB OS250D12P SWITCH FUSE
General Information
| Extended Product Type: | OS250D12P |
| Product ID: | 1SCA022726R8380 |
| EAN: | 6417019235110 |
| Catalog Description: | OS250D12P SWITCH FUSE |
| Long Description: | Switch Fuses,Front Operated,3-pole,12 (Between the Poles),DIN,0,1,Handle and shaft included, |
Description
| Circular Value | |
| Group Waste to Landfill Target: | UL 2799 Zero Waste To Landfill Validation available |
| Eco Transparency | |
| Environmental Product Declaration – EPD: | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT): | 9AKK108467A5658 |
| REACH Declaration: | 1SCC011021D0201 |
| RoHS Information: | 1SCC011020D0201 |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP: | 7d87bf23-702f-490f-ae78-cfff6eb1b515 Finland (FI) |
| Simplified SCIP: | fef8e536-d297-44c0-886e-595cbdc6f1db Germany (DE) 53bacc45-aa15-4f5c-86e4-ca97ff02e3f1 Poland (PL) f514d4bd-052b-4a41-92c8-023867ddb9e0 Netherlands (NL) 5e59db88-5027-4694-a404-85a0f90633f8 Sweden (SE) b859c7ba-3e38-41ca-9457-f342fcab8fd3 Germany (DE) e423379b-d3e4-477e-860c-0ea6b4ef66e0 Norway (NO) 6ba8c599-8783-4215-a921-5681689195b7 Germany (DE) 68322dec-f227-4f50-bf77-27973ce213ee Sweden (SE) cb578b43-09e9-4962-b4d5-0677ce6cd768 Bulgaria (BG) 6df1998c-f684-4c1a-8212-97dcd4d86b8a Czech Republic (CZ) d0f82a51-936f-4aac-b598-cd448e940b56 Croatia (HR) 3bb6b6fa-6903-49bc-8891-a11cb1c955b9 Poland (PL) 60c53fd4-858c-4a63-9548-3e840920f7f7 Portugal (PT) 38b3f3b4-338b-40fa-952c-53bc6feef0f2 Greece (GR) a6963a7a-2165-4a41-a50f-0841f3f370da Estonia (EE) 7bbb71cb-0a7d-4665-b2be-799468840302 Hungary (HU) 22db7884-78c6-4093-80b3-6c6969b37666 Poland (PL) 5d95c6bf-9fda-45bf-a821-146dd99f554f France (FR) b2999349-1b1e-4051-80a4-db618e4e0b14 Hungary (HU) 7b3ec953-da00-4697-9b4b-add0f30e4a3c France (FR) 8c79b80e-143a-4811-95a9-4632a2745e60 Spain (ES) 864e886f-48e7-4d27-9c59-50c800876784 Belgium (BE) a2bcc6da-f460-41d3-a484-51b7115e7a5f Denmark (DK) f1b2d087-b3ef-44a5-9a14-26ed4526455f Germany (DE) 9879aecc-f7f1-4a8b-b6aa-1930fc878268 Germany (DE) cae63dd8-a994-4605-bc6e-4c2a3040df64 Italy (IT) 2ae2b659-d9e1-44ce-9f1a-e32f8ce6aa04 Belgium (BE) |
| Toxic Substances Control Act – TSCA: | 1SCC011025D0201 |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC311013C0201 |
| Instructions and Manuals: | 1SCC311012M0219 |
| Environmental Product Declaration – EPD: | 1SCC311197D0201 |
| Dimensions | |
| Product Net Width: | 208 mm |
| Product Net Height: | 193 mm |
| Product Net Depth / Length: | 154 mm |
| Product Net Weight: | 4.1 kg 9 lb |
| Technical | |
| Rated Operational Current AC-21A (Ie): | (500 V) 250 A (690 V) 250 A |
| Rated Operational Current AC-22A (Ie): | (380 … 415 V) 250 A (500 V) 250 A (690 V) 250 A |
| Rated Operational Current AC-23A (Ie): | (380 … 415 V) 250 A (500 V) 250 A (690 V) 250 A |
| Rated Operational Power AC-23A (Pe): | (220 … 240 V) 75 kW (400 V) 140 kW (415 V) 145 kW (500 V) 170 kW (690 V) 250 kW |
| Conventional Free-air Thermal Current (Ith): | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 250 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 8 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc): | (690 V) 80 kA |
| Power Loss: | at Rated Operating Conditions per Pole 13 W |
| Pollution Degree: | 3 |
| Handle Type: | Pistol handle and shaft included |
| Switches Operating Mechanism: | 12 (Between the Poles) |
| Position of Line Terminals: | Top In – Bottom Out, Bottom In – Top Out |
| Fuse Size: | NH0 NH1 |
| Fuse System: | DIN |
| Operating Mode: | Front Operated |
| Standards: | IEC 60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Terminal Type: | Lug terminals |
| Terminal Width: | 25 mm |
| Tightening Torque: | 30 … 44 N·m |
| Rated Current (In): | Main Circuit 250 A |
| Technical UL/CSA | |
| Tightening Torque: | 30 … 44 N·m |
