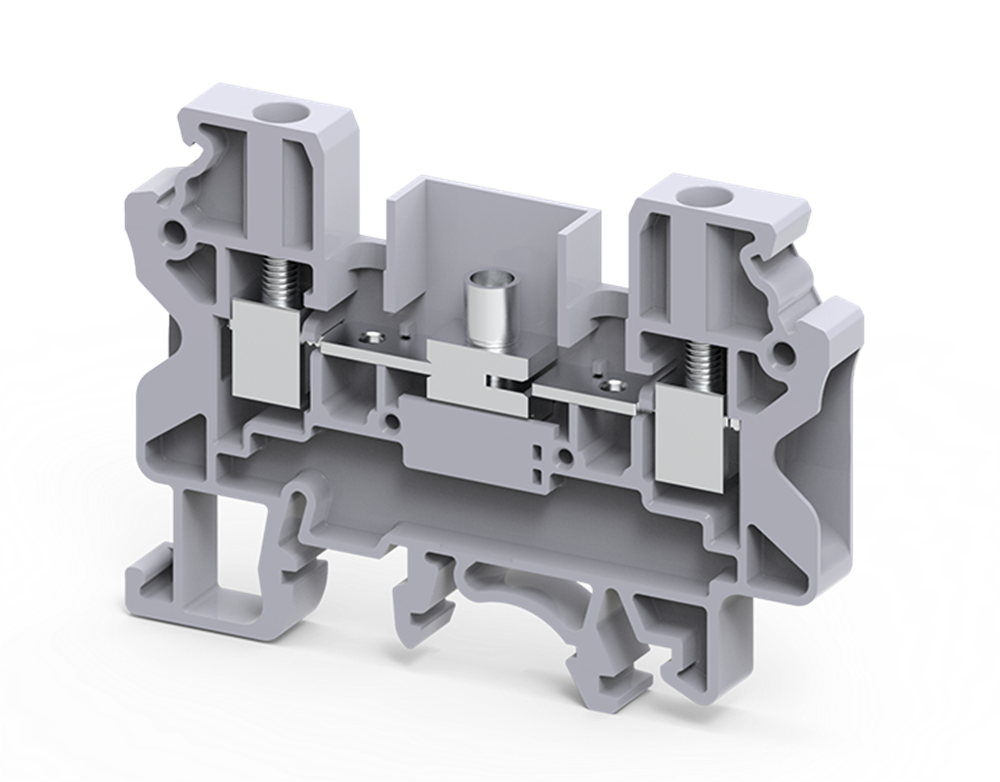

Connectwell CDS4UCR Corrosive Resistance Disconnect & Test Terminal Block
4 sq.mm Corrosive Resistance Disconnect & Test Terminal Block.
The CDS4UCR4 sq.mm Corrosive Resistance Disconnect & Test Terminal Blocks is used for measuring, control and regulatory circuits. they provide a clear functional advantage for devices having utility instruments and associated transformers. Separate testing points facilitate insertion of test probes. Disconnection is achieved by means of a slide link operated with a screw driver.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 800 V | ||
| Rated Current | 32 A | ||
| Tightening Torque | 0.5 Nm | ||
| Housing Material | Polyamide | ||
| Product Function | Sliding Type Disconnect and Test | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail | ||
| Screw Size | M3 | ||
| Operated by | Screwdriver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 4 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 10 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 4 mm² | ||
| 2 Conductors with same Cross Section Stranded min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded max | 2.5 mm² | ||
| Conductor Cross Section Solid min | 0.2 mm² | ||
| Conductor Cross Section Solid max | 6 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 2.5 mm² | ||
| Stripping Length | 9 mm | ||
| Internal Cylindrical Guage | A4 | ||
| DIMENSIONS | |||
| Height with DIN 32 rail | 50.2 mm | ||
| Height with DIN 35 x 15 mm rail | 52.7 mm | ||
| Height with DIN 35 x 7.5 mm rail | 50.2 mm | ||
| Length | 62.2 mm | ||
| Width (Thickness) | 6 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CDS4UCR | 4 sq.mm Disconnect & Test Terminal Block in Grey colour. | 50 |
| CDS4UCRBU | 4 sq.mm Disconnect & Test Terminal Block in Blue colour. | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| CA509/K6 | Blank Marking Tag | 100 |
| SCS0.6/3.5 | Electricians Screwdriver for slotted screws | 10 |
| MC6 | MARKER CARD 6MM PITCH WITH 72 TAGS | 10 |
| CA501-1M | Din 32 Rail unslotted 1 meter | 50 |
| CA501-1M-S | Din 32 Rail slotted 1 meter | 50 |
| CA501-2M | Din 32 Rail unslotted 2 meter | 50 |
| CA501-2M-S | Din 32 Rail slotted 2 meter | 50 |
