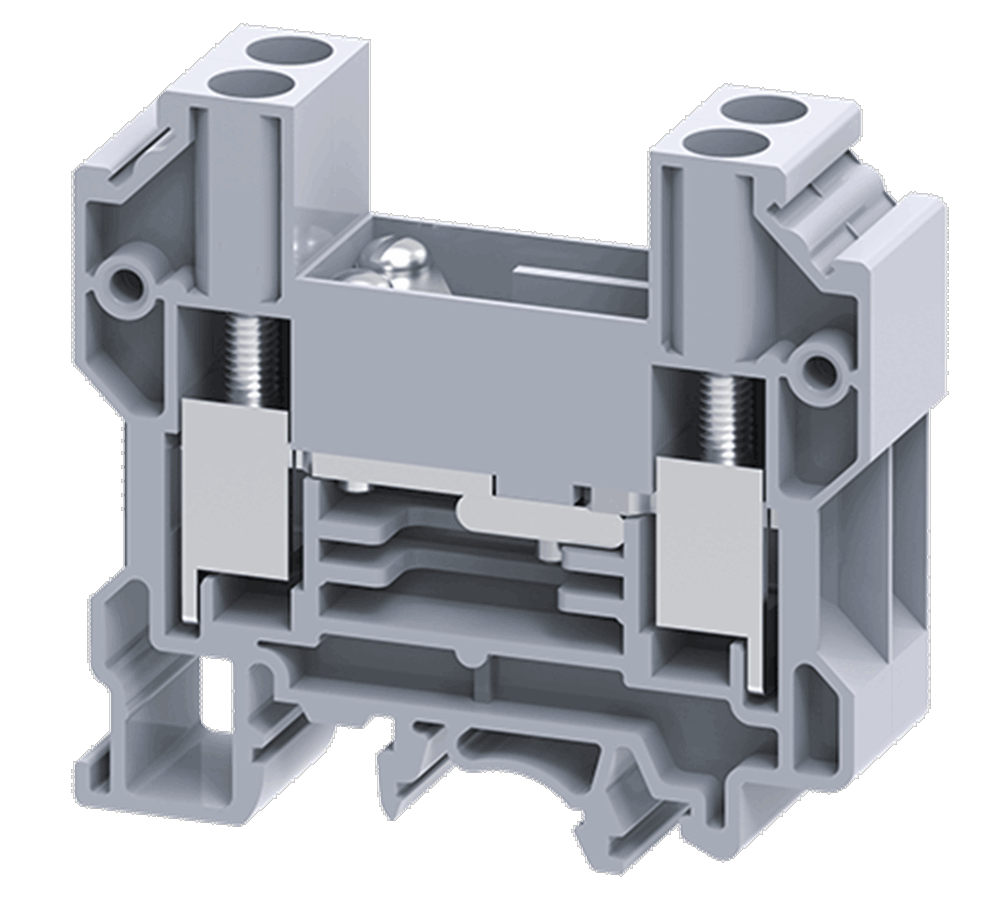

Connectwell CDTTUSH Disconnect & Test Terminal Block
Disconnect & Test Terminal Block
These Terminal Blocks are used for measuring, control and regulatory circuits. They Provide a clear functional advantage for devices having utility instruments and associated transformers. in this Terminal Block disconnection is achieved by means of a slide link operated by screwdriver. Specially designed socket headed screws act as test monitoring points in disconnecting & Test Terminal Block.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 160 V | ||
| Rated Current | 10 A | ||
| Tightening Torque | 1.2 Nm | ||
| Housing Material | Polyamide | ||
| Product Function | Sliding Type Disconnect and Test | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail | ||
| Screw Size | M3.5 | ||
| Operated by | Screwdriver | ||
| Rated Surge Voltage | 2.5 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 1.5 mm² | ||
| Conductor Cross Section Stranded max. | 10 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 16 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 8 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 1.5 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 10 mm² | ||
| 2 Conductors with same Cross Section Stranded min | 1.5 mm² | ||
| 2 Conductor with same Cross Section Stranded max | 4 mm² | ||
| Conductor Cross Section Solid min | 1.5 mm² | ||
| Conductor Cross Section Solid max | 10 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 1.5 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 4 mm² | ||
| Stripping Length | 12 mm | ||
| Internal Cylindrical Guage | A5 | ||
| DIMENSIONS | |||
| Height with DIN 32 rail | 63.7 mm | ||
| Height with DIN 35 x 15 mm rail | 65.7 mm | ||
| Height with DIN 35 x 7.5 mm rail | 58.7 mm | ||
| Length | 63 mm | ||
| Width (Thickness) | 16 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CDTTUSH | 6 sq.mm Disconnect & Test Terminal Block in Grey colour | 20 |
| CDTTUSHBU | 6 sq.mm Disconnect & Test Terminal Block in Blue colour | 20 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA501-1M | Din 32 Rail unslotted 1 meter | 50 |
| CA501-1M-S | Din 32 Rail slotted 1 meter | 50 |
| CA501-2M | Din 32 Rail unslotted 2 meter | 50 |
| CA501-2M-S | Din 32 Rail slotted 2 meter | 50 |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| EPCDTTU | End Plate in Grey colour suitable | 50 |
| CA710/2 | External Comb Type Shorting Link available in 2 Pole | 100 |
| CA710/3 | External Comb Type Shorting Link available in 3 Pole | 50 |
| CA710/4 | External Comb Type Shorting Link available in 4 Pole | 50 |
| CA710/10 | External Comb Type Shorting Link available in 10 Pole | 20 |
| QJ8/2 | 2 Pole shorting Plug for CDS6U Terminal Block | 25 |
| QJ8/4 | 4 Pole shorting Plug for CDS6U Terminal Block | 25 |
| CA509/K8 | Marking Tag with Vertical printing. | 100 |
| SCS1/5.5 | Electricians Screwdriver for slotted screws | 10 |
| MC8 | MARKER CARD 8MM PITCH WITH 48 TAGS | 10 |
