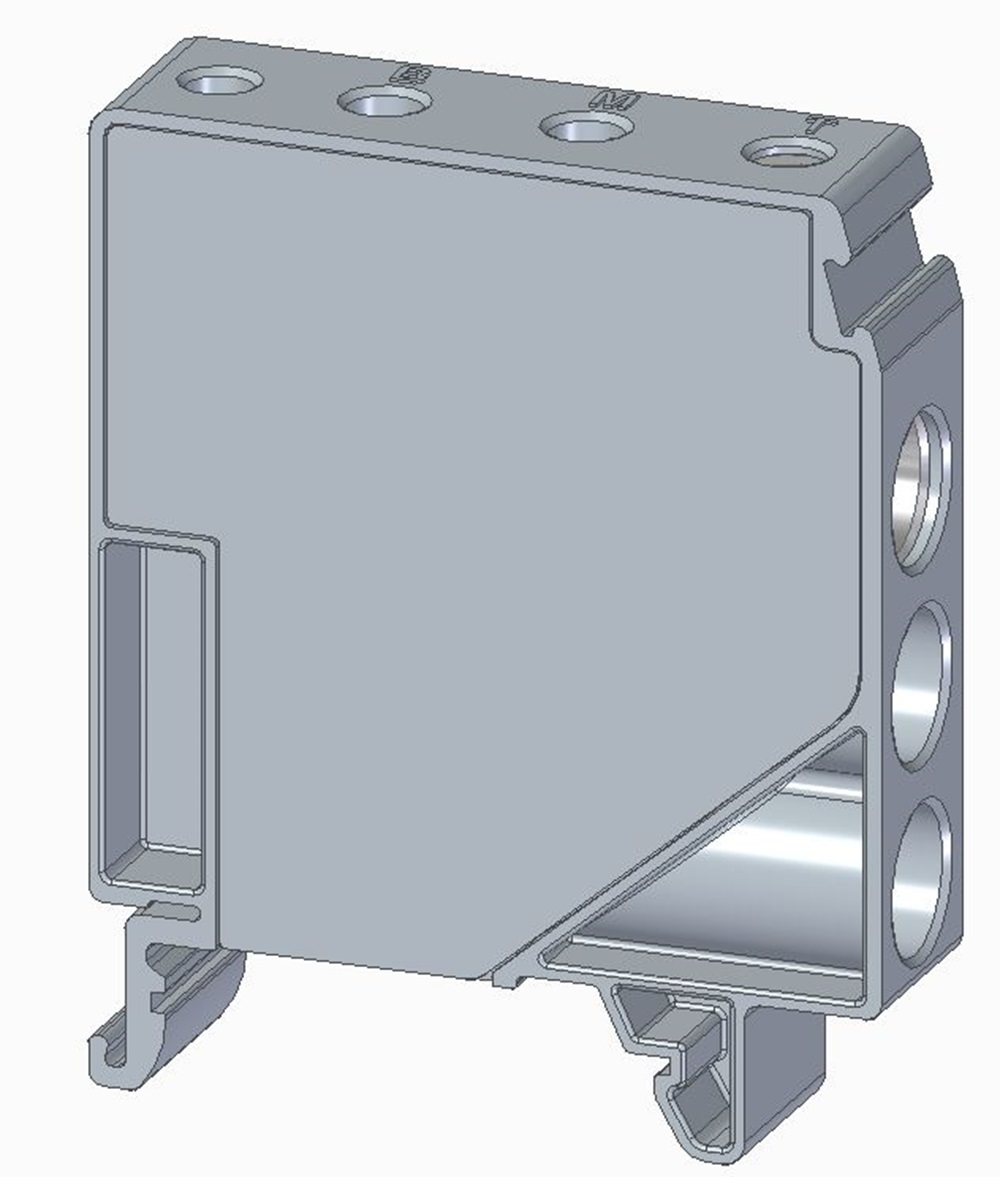

Connectwell CLP35/3A Lighting Pole Terminal Block
35 sq.mm Lighting Pole Terminal Block.
These blocks are used to connect multiple wires in single Terminal Block, thereby eliminating reliability problems encountered when connecting multiple wires in a single clamp. These terminal blocks can be used for the street lighting poles application.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 400 V | ||
| Rated Current – Input Side | 125 A | ||
| Rated Current – Output Side | 41 A | ||
| Tightening Torque – Input Side | 6 Nm | ||
| Tightening Torque – Output Side | 0.8 Nm | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Compact Distribution Block | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screwdriver | ||
| Rated Surge Voltage | 4 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min.- Input Side | 4 mm² | ||
| Conductor Cross Section Stranded max. – Input Side | 35 mm² | ||
| Conductor Cross Section Stranded min.- Output Side | 0.5 mm² | ||
| Conductor Cross Section Stranded max.- Output Side | 6 mm² | ||
| Conductor Cross Section Stranded min AWG/KCMIL.- Input Side | 12 AWG | ||
| Conductor Cross Section Stranded max AWG/KCMIL.- Input Side | 2 AWG | ||
| Conductor Cross Section Stranded min AWG/KCMIL.- Output Side | 20 AWG | ||
| Conductor Cross Section Stranded max AWG/KCMIL.- Output Side | 10 AWG | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 73.4 mm | ||
| Height with DIN 35 x 7.5 mm rail | 65.9 mm | ||
| Length | 53 mm | ||
| Width (Thickness) | 14.3 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CMDB12 | 10 sq.mm Modular Distribution Terminal Block with 4x10sqmm, 20x4sqmm connection points in Grey Colour | 5 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA202 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 25 |
