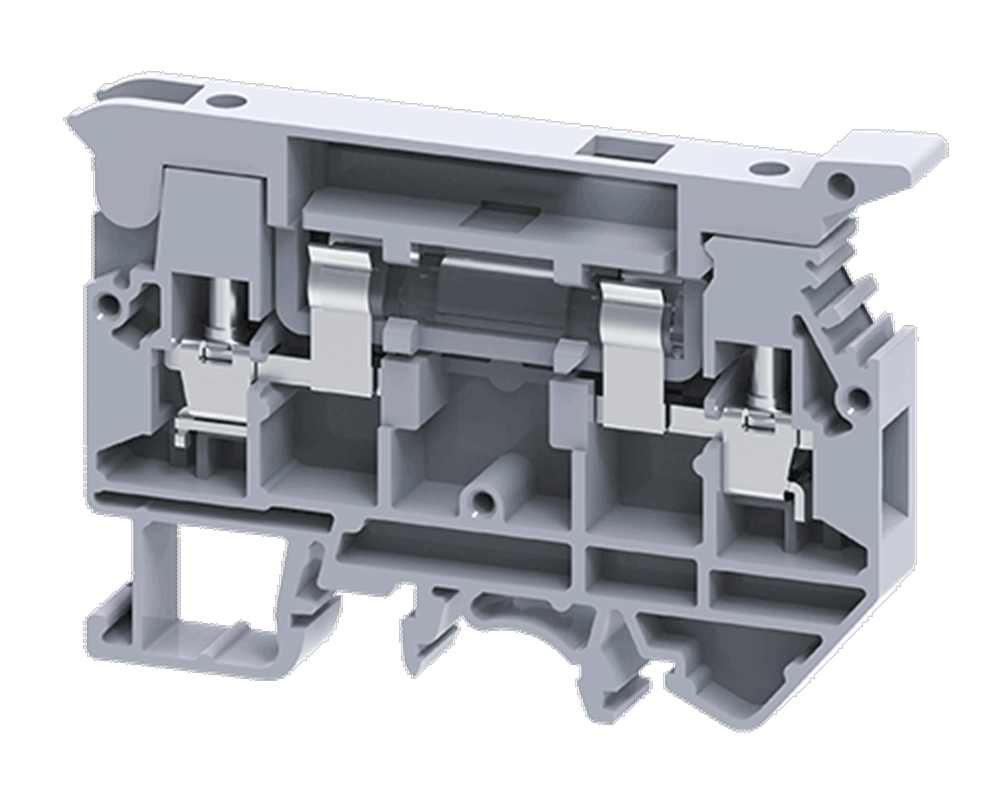

Connectwell CAFL4UN Single Level Fuse Terminal Block
Fuse Terminal Blocks
These Terminal Blocks are used in electrical and control systems which require fuse protection. This Terminal Blocks accepts industry standard 6.3 X 32 mm glass cartridge fuses.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 1000 V | ||
| Rated Current | 6.3 A | ||
| Tightening Torque | 0.5 Nm | ||
| Housing Material | Polyamide | ||
| Product Function | Single Level Fuse with Indication | ||
| Wire Entry Orientation | Side Entry | ||
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail | ||
| Screw Size | M3 | ||
| Operated by | Screwdriver | ||
| Rated Surge Voltage | 5 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 4 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 22 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 10 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 4 mm² | ||
| 2 Conductors with same Cross Section Stranded min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded max | 2.5 mm² | ||
| Conductor Cross Section Solid min | 0.2 mm² | ||
| Conductor Cross Section Solid max | 6 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 2.5 mm² | ||
| Stripping Length | 9.5 mm | ||
| Internal Cylindrical Guage | A4 | ||
| DIMENSIONS | |||
| Height with DIN 32 rail | 60.3 mm | ||
| Height with DIN 35 x 15 mm rail | 63 mm | ||
| Height with DIN 35 x 7.5 mm rail | 55.3 mm | ||
| Length | 72 mm | ||
| Width (Thickness) | 9 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CAFL4UN220V | 4 sqmm Fuse Terminal Block with indication suitable for 300V in Grey colour. | 25 |
| CAFL4UN110V | 4 sqmm Fuse Terminal Block with indication suitable for110V in Grey colour. | 25 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA501-1M | Din 32 Rail unslotted 1 meter | 50 |
| CA501-1M-S | Din 32 Rail slotted 1 meter | 50 |
| CA501-2M | Din 32 Rail unslotted 2 meter | 50 |
| CA501-2M-S | Din 32 Rail slotted 2 meter | 50 |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| EPCAFL4U | End Plate in Grey colour | 25 |
| CA716/2 | External Comb Type Shorting Link available in 2 Pole | 50 |
| CA716/3 | External Comb Type Shorting Link available in 3 Pole | 50 |
| CA716/4 | External Comb Type Shorting Link available in 4 Pole | 50 |
| CA716/10 | External Comb Type Shorting Link available in 10 Pole | 20 |
| CA716/5-3A | External Comb Type Shorting Link 3 pole alternate suitable for CB16/3H | 50 |
| CA509/K9 | Blank Marking Tag | 100 |
| CA509/K9F | Blank Marking Tag | 10 |
| SCS0.6/3.5 | Electricians Screwdriver for slotted screws | 10 |
