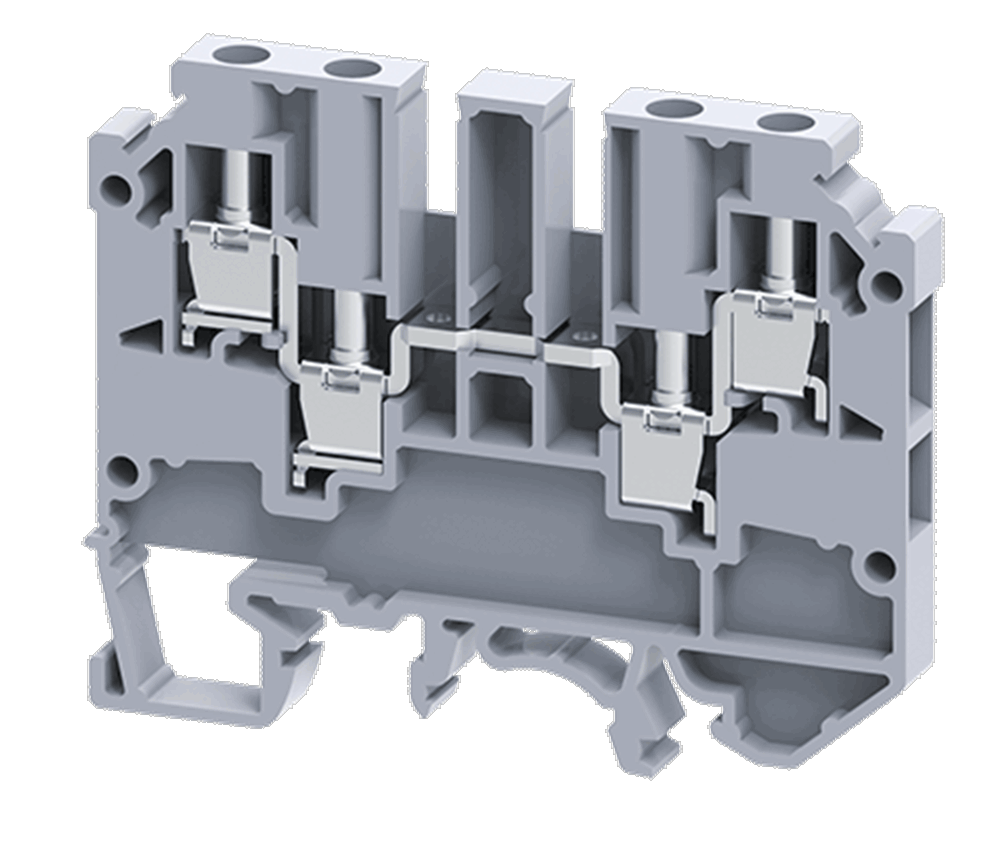

Connectwell CMC2-2 Multiple Connection Terminal Block

4 sq.mm Multiple Connection Terminal Blocks with 4 connection points.
These blocks are used to connect multiple wires in single Terminal Block, thereby eliminating reliability problems encountered when connecting multiple wires in a single .

Add to quote
SKU: 9158090c01dd Categories: , ,

Description

TECHNICAL DATA
Rated Voltage 630 V
Rated Current 32 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Multiple Connection
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
CONNECTION DATA
Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 4 mm²
Conductor Cross Section AWG/Kcmil min 22 AWG
Conductor Cross Section AWG/Kcmil max 10 AWG
Conductor Cross Section Stranded with Ferrule/Lug min 0.2 mm²
Conductor Cross Section Stranded with Ferrule/Lug max 4 mm²
2 Conductors with same Cross Section Stranded min 0.2 mm²
2 Conductor with same Cross Section Stranded max 2.5 mm²
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 6 mm²
2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min 0.2 mm²
2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max 2.5 mm²
Stripping Length 9 mm
Internal Cylindrical Guage A4
DIMENSIONS
Height with DIN 32 rail 58.7 mm
Height with DIN 35 x 15 mm rail 60.5 mm
Height with DIN 35 x 7.5 mm rail 53.4 mm
Length 65 mm
Width (Thickness) 6 mm
ORDERING INFORMATION
CAT. NO. DESCRIPTION STD. PACK
CMC2-2 4 sq.mm Multiple Connection Terminal Block in Grey colour 50
CMC2-2BU 4 sq.mm Multiple Connection Terminal Block in Blue colour 50
ACCESSORIES
CAT. NO. DESCRIPTION STD. PACK
CA501-1M

Din 32 Rail unslotted 1 meter 50
CA501-1M-S

Din 32 Rail slotted 1 meter 50
CA501-2M

Din 32 Rail unslotted 2 meter 50
CA501-2M-S

Din 32 Rail slotted 2 meter 50
CA701-1M

Din 35 Rail unslotted 1 meter 50
CA701-2M

Din 35 Rail unslotted 2 meter 50
CA701-2M-S

Din 35 Rail slotted 2 meter 50
CA701-1M-S

Din 35 Rail slotted 1 meter 50
CA701-15-1M

Din 35 Rail 15 deep unslotted 1 meter 50
CA701-15-1M-S

Din 35 Rail 15 deep slotted 1 meter 50
CA701-15-2M

Din 35 Rail 15 deep unslotted 2 meter 50
CA701-15-2M-S

Din 35 Rail 15 deep slotted 2 meter 50
CA702

End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails 50
CA802

End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails 50
EPCMC2-2

End Plate in Grey colour 50
CA722/2

Pre Assembled Shorting Link assemblies with 2 poles 100
CA722/3

Pre Assembled Shorting Links assemblies with 3 poles 100
CA722/4

Pre Assembled Shorting Links assemblies with 4 poles 100
CA722/5

Pre Assembled Shorting Links assemblies with 5 poles 100
CA722/10

Pre Assembled Shorting Links assemblies with 10 poles 10
CA722/100

Pre Assembled Shorting Links assemblies with 100 poles 10
CA742/2

Insulated Pre assembled Shorting Link for 2 way shorting 100
CA742/3

Insulated Pre assembled Shorting Link for 3 way shorting 100
CA742/4

Insulated Pre assembled Shorting Link for 4 way shorting 100
CA742/10

Insulated Pre assembled Shorting Link for 10 way shorting 10
CA742/100

Insulated Pre assembled Shorting Link for 100 way shorting 10
CA703/1

Permanent Shorting Link for 2 way shorting 100
CA704/1

Permanent Shorting Link for 3 way shorting 100
CA705/1

Permanent Shorting Link for 4 way shorting 100
CA732/10

Permanent Shorting Link for 10 way shorting 100
CA732/10-A

Permanent Shorting Link (Breakable) for 10 way shorting 100
CA732/100

Permanent Shorting Link for 100 way shorting 100
CA707/S/Q/01

Shorting Sleeve and Screw 100
CA509/K6

Blank Marking Tag 100
CA707/TS/01

Test Socket Suitable for CTS2.5UN / CTS2.5UE / CTS4UN / CTC4U / CMB4 / CTLG2.5 / CTL2.5U / CTL2.5UH / ODL4U / ODL4UA / CDLG2.5 / CMC1-2 / CMC2-2 Terminal Blocks. 100
SCS0.6/3.5

Electricians Screwdriver for slotted screws 10
CA713/2

External Comb Type Shorting Link available in 2 Pole 100
CA713/3

External Comb Type Shorting Link available in 3 Pole 100
CA713/4

External Comb Type Shorting Link available in 4 Pole 100
CA713/10

External Comb Type Shorting Link available in 10 Pole 20
MC6

MARKER CARD 6MM PITCH WITH 72 TAGS 10
