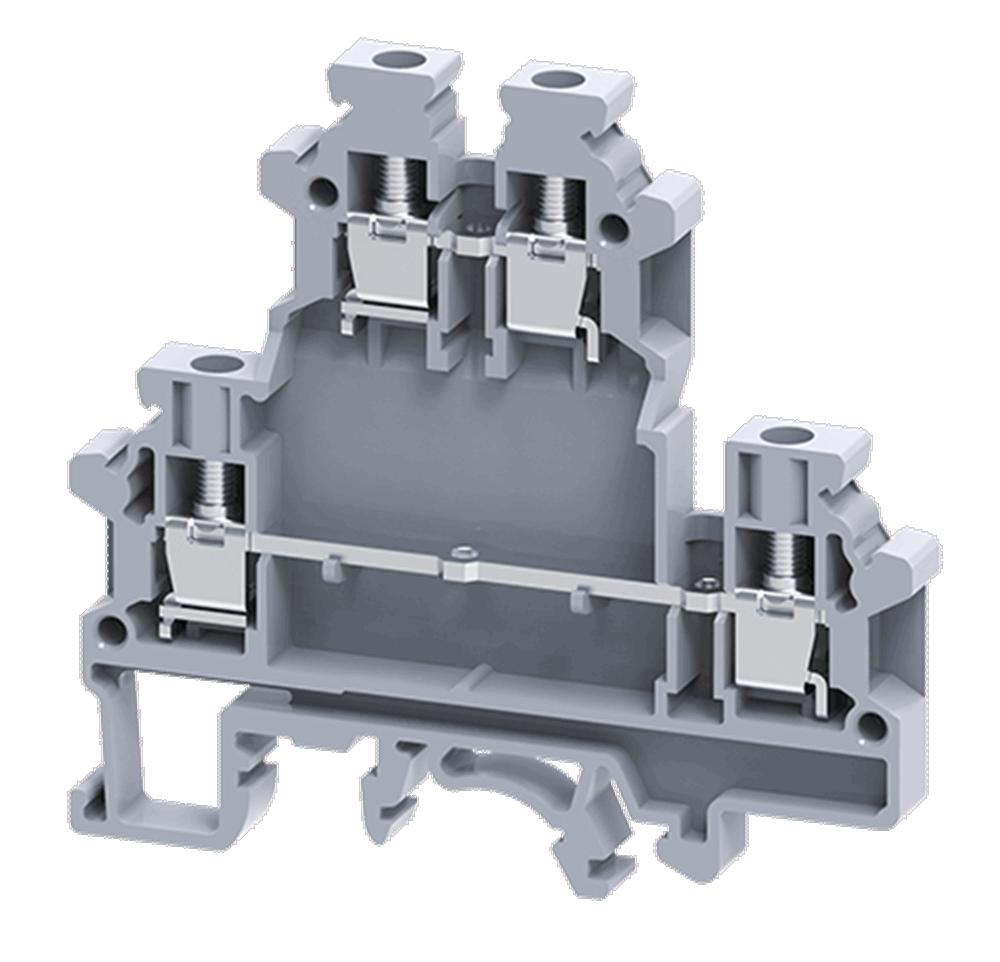

Connectwell ODL4UHV Offset Double Level Terminal Block

4 sq.mm Offset Double Level Terminal Blocks.
ODL4U series Terminal Block , the top level is offset from the bottom level by half the thickness of the terminal block. this creates better access for the bottom level screw while the wires are connected. It is recommended to use End Plates at both ends of the assembled ODL4U sets for flat alignment to enable the effective use of end clamp. These are ideal for use in applications requiring high density wiring. Interconnection/shorting is possible at both levels. ODL4UHV is specially designed for high voltage application.

Add to quote
SKU: e5c70b4e08a6 Categories: , ,

Description

TECHNICAL DATA
Rated Voltage 1000 V
Rated Current 32 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Standard Colour Grey
Product Function Double Level
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 6 KV
Pollution Degree 3
CONNECTION DATA
Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 4.0 mm²
Conductor Cross Section AWG/Kcmil min 22 AWG
Conductor Cross Section AWG/Kcmil max 10 AWG
Conductor Cross Section Stranded with Ferrule/Lug min 0.2 mm²
Conductor Cross Section Stranded with Ferrule/Lug max 4 mm²
2 Conductors with same Cross Section Stranded min 0.2 mm²
2 Conductor with same Cross Section Stranded max 2.5 mm²
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 6 mm²
2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min 0.2 mm²
2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max 2.5 mm²
Stripping Length 8 mm
Internal Cylindrical Guage A4
DIMENSIONS
Height with DIN 32 rail 70.7 mm
Height with DIN 35 x 15 mm rail 73.2 mm
Height with DIN 35 x 7.5 mm rail 66.5 mm
Length 68 mm
Width (Thickness) 6 mm
ORDERING INFORMATION
CAT. NO. DESCRIPTION STD. PACK
ODL4UHV 4 sq.mm 2 Level Offset Terminal Block in Grey colour 50
ACCESSORIES
CAT. NO. DESCRIPTION STD. PACK
CA501-1M

Din 32 Rail unslotted 1 meter 50
CA501-1M-S

Din 32 Rail slotted 1 meter 50
CA501-2M

Din 32 Rail unslotted 2 meter 50
CA501-2M-S

Din 32 Rail slotted 2 meter 50
CA701-1M

Din 35 Rail unslotted 1 meter 50
CA701-2M

Din 35 Rail unslotted 2 meter 50
CA701-2M-S

Din 35 Rail slotted 2 meter 50
CA701-1M-S

Din 35 Rail slotted 1 meter 50
CA701-15-1M

Din 35 Rail 15 deep unslotted 1 meter 50
CA701-15-1M-S

Din 35 Rail 15 deep slotted 1 meter 50
CA701-15-2M

Din 35 Rail 15 deep unslotted 2 meter 50
CA701-15-2M-S

Din 35 Rail 15 deep slotted 2 meter 50
CA202

End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails 25
CA702

End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails 50
CA802

End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails 50
EP1ODL4U

End Plate in Grey colour 50
EPODL4U

End Plate in Grey colour suitable for ODL4U Terminal Block 50
CA727/2

Pre Assembled Shorting Link assemblies with 2 poles 100
CA727/3

Pre Assembled Shorting Links assemblies with 3 poles 100
CA727/4

Pre Assembled Shorting Link assemblies with 4 poles 100
CA727/10

Pre Assembled Shorting Links assemblies with 10 poles 10
CA747/2

Pre assembled Shorting Link for 2 way shorting 100
CA747/3

Pre assembled Shorting Link for 3 way shorting 100
CA747/4

Pre assembled Shorting Link for 4 way shorting 100
CA747/10

Pre assembled Shorting Link for 10 way shorting 10
CA714/2

External Comb Type Shorting Link Available in 2 pole 100
CA714/3

External Comb Type Shorting Link Available in 3 pole 100
CA714/4

External Comb Type Shorting Link Available in 4 pole 100
CA714/10

External Comb Type Shorting Link Available in 10 pole 20
CA703/1

Permanent Shorting Link for 2 way shorting 100
CA704/1

Permanent Shorting Link for 3 way shorting 100
CA705/1

Permanent Shorting Link for 4 way shorting 100
CA732/10

Permanent Shorting Link for 10 way shorting 100
CA732/10-A

Permanent Shorting Link (Breakable) for 10 way shorting 100
CA732/100

Permanent Shorting Link for 100 way shorting 100
CA607/S/Q

Shorting Sleeve and Screw 100
CA509/K6

Blank Marking Tag 100
CA707/TS/01

Test Socket Suitable for CTS2.5UN / CTS2.5UE / CTS4UN / CTC4U / CMB4 / CTLG2.5 / CTL2.5U / CTL2.5UH / ODL4U / ODL4UA / CDLG2.5 / CMC1-2 / CMC2-2 Terminal Blocks. 100
SCS0.6/3.5

Electricians Screwdriver for slotted screws 10
MC6

MARKER CARD 6MM PITCH WITH 72 TAGS 10
