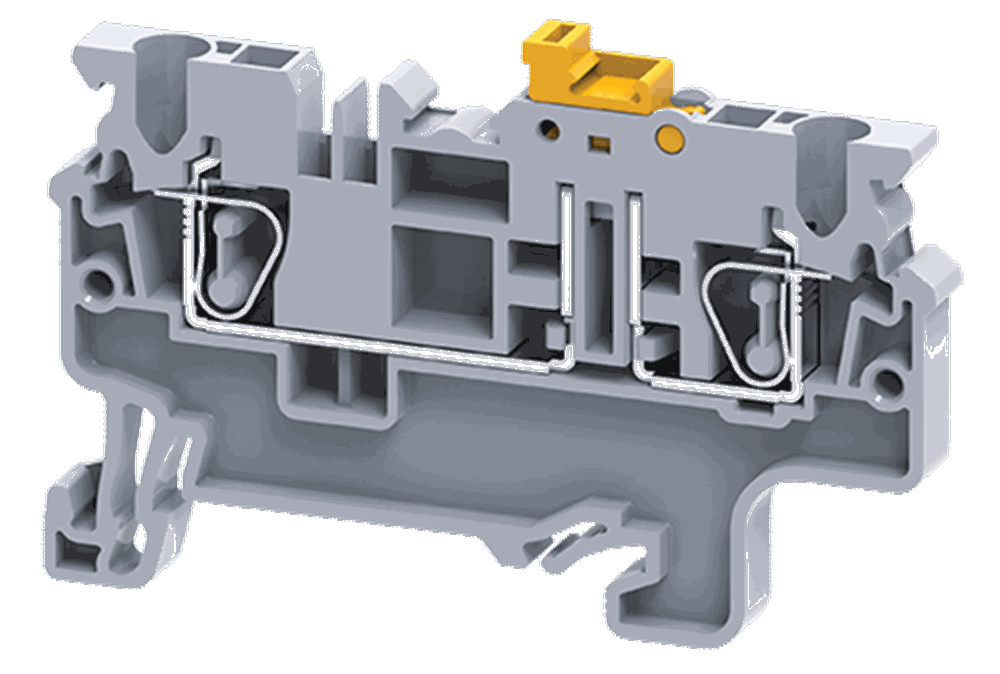

Connectwell CXK2.5 Spring Clamp Knife Disconnecting Compact Terminal Block
2.5 sq.mm Spring Clamp knife disconnecting compact Terminal Blocks
The Spring Clamp is operated by using a screw driver to provide an access to the wire through an opening in the spring clamp. The inserted wire gets clamped on to the current bar when the screw driver is removed.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 1000 V | ||
| Rated Current | 20 A | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Knife Type Discconnect and Test | ||
| Wire Entry Orientation | Top | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screw Driver | ||
| Rated Surge Voltage | 6 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 2.5 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 12 AWG | ||
| Stripping Length | 10 mm | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 49.8 mm | ||
| Height with DIN 35 x 7.5 mm rail | 42.3 mm | ||
| Length | 62.2 mm | ||
| Width (Thickness) | 5 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CXK2.5 | 2.5 sq.mm Knife Disconnecting Spring Clamp Terminal Block in Grey colour | 50 |
| CXK2.5R | 2.5 sq.mm Knife Disconnecting Spring Clamp Terminal Block in Red colour | 50 |
| CXK2.5Y | 2.5 sq.mm Knife Disconnecting Spring Clamp Terminal Block in Yellow colour | 50 |
| CXK2.5BU | 2.5 sq.mm Knife Disconnecting Spring Clamp Terminal Block in Blue colour | 50 |
| CXK2.5BK | 2.5 sq.mm Knife Disconnecting Spring Clamp Terminal Block in Black colour | 50 |
| CXK2.5GN | 2.5 sq.mm Knife Disconnecting Spring Clamp Terminal Block in Green colour | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA103 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| SCS0.8/4 | Electricians Screwdriver for slotted screws | 10 |
| CA509/K12 | Marking Tag Blank suitable for CTS16U / CTS25UN / CGT16N / CDB25 / CMDB25 / CSC16T / CSCG16T / CY16 / CYG16 Terminal Blocks | 100 |
| MC12 | MARKER CARD 12MM PITCH WITH 36 TAGS | 10 |
