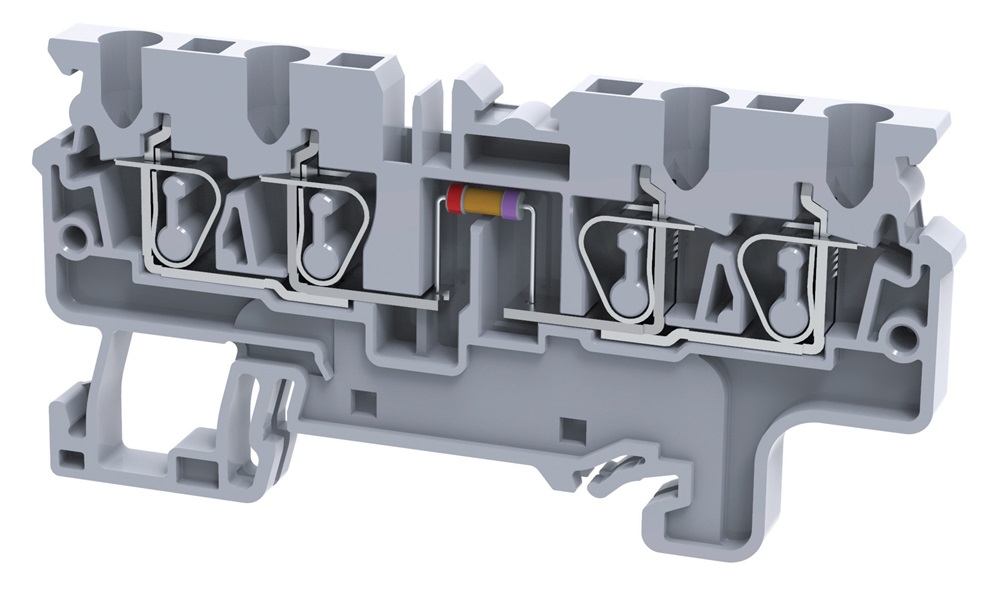

Connectwell CX2.5/4(E)R3 Terminal Block With Resistor Circuit – R3 Configuration
CX2.5/4(E)R3 : 2.5 sq.mm Terminal Blocks with resistor circuit – R3 configuration
Four conductor Terminal Block available with arc suppression circuits for contractors and solenoid valves-D.C
Description
| TECHNICAL DATA | |||
| Rated Voltage | 1000 V | ||
| Rated Current | 1 A | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | With Electronic Components: Diode/Resistor | ||
| Wire Entry Orientation | Top | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screwdriver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 2.5 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 12 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 2.5 mm² | ||
| Conductor Cross Section Solid min | 0.2 mm² | ||
| Conductor Cross Section Solid max | 4 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 1 mm² | ||
| Stripping Length | 10 mm | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 45.2 mm | ||
| Height with DIN 35 x 7.5 mm rail | 37.6 mm | ||
| Length | 74.7 mm | ||
| Width (Thickness) | 5 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CX2.5/4(E)R3 | 2.5 sq.mm Terminal Blocks with R3 resistor circuit | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA103 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| CA202 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 25 |
| CA104 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| EPCX2.5 | End Plate in Grey Colour | 50 |
| EPCX2.5BU | End Plate in Blue Colour | 50 |
| PPCX4/4 | Partition Plate in Grey colour | 50 |
| JX2.5/2 | Shorting Link for 2.5 sq mm series | 100 |
| JX2.5/3 | Shorting Link for 2.5 sq mm series | 50 |
| JX2.5/4 | Shorting Link for 2.5 sq mm series | 50 |
| JX2.5/5 | Shorting Link for 2.5 sq mm series | 50 |
| JX2.5/6 | Shorting Link for 2.5 sq mm series | 50 |
| JX2.5/7 | Shorting Link for 2.5 sq mm series | 10 |
| JX2.5/8 | Shorting Link for 2.5 sq mm series | 10 |
| JX2.5/10 | Shorting Link for 2.5 sq mm series | 10 |
| JX2.5/20 | Shorting Link for 2.5 sq.mm series | 10 |
| CA509/K5 | Blank Marking Tag | 100 |
| WLX2.5 | Warning label suitable for 5mm wide terminal block | 50 |
| SCS0.5/3 | Electricians Screwdriver for slotted screws | 10 |
| MC5 | MARKER CARD 5MM PITCH WITH 84 TAGS | 10 |
