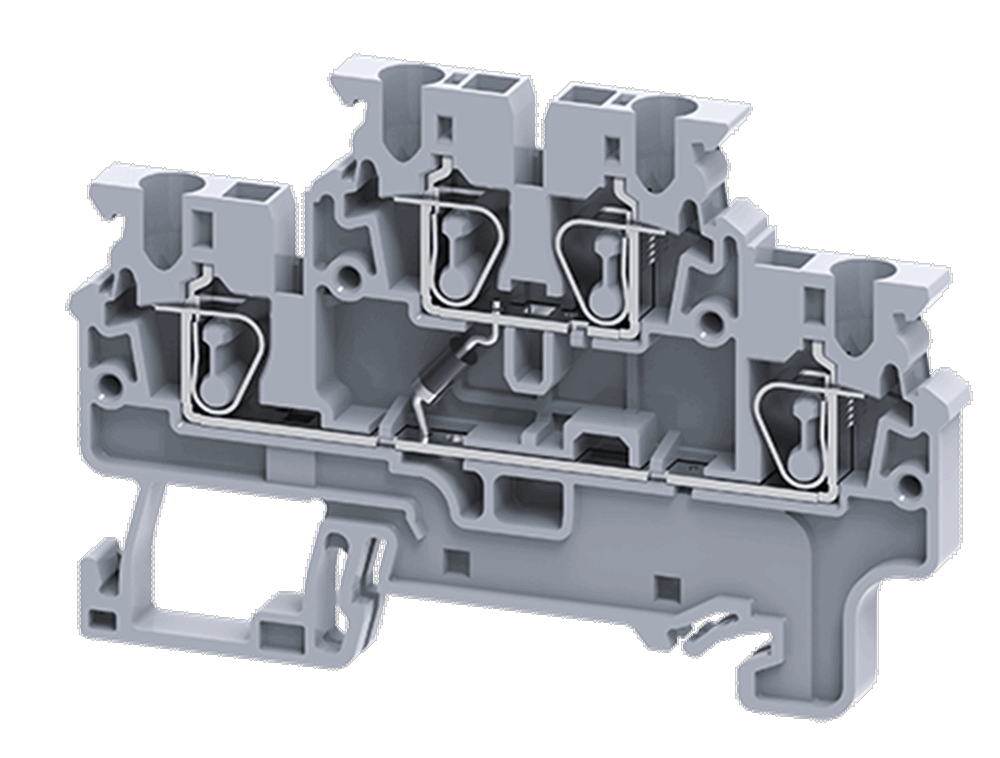

Connectwell CXDL2.5(E)D1 Terminal Block With Diode Circuit – D1 Configuration

2.5 sq.mm Terminal Blocks with diode circuit – D1 configuration
Double Level Terminal Block are available with arc suppression circuits for contractors and solenoid valves-D.C

Add to quote
SKU: 1f44d0615bc9 Categories: , ,

Description

TECHNICAL DATA
Rated Voltage 1000 V
Rated Current 1 A
Housing Material Polyamide
Standard Colour Grey
Product Function With Electronic Components: Diode/Resistor
Wire Entry Orientation Top Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
CONNECTION DATA
Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 2.5 mm²
Conductor Cross Section AWG/Kcmil min 24 AWG
Conductor Cross Section AWG/Kcmil max 12 AWG
Stripping Length 10 mm
DIMENSIONS
Height with DIN 35 x 15 mm rail 57 mm
Height with DIN 35 x 7.5 mm rail 49.5 mm
Length 72.7 mm
Width (Thickness) 5 mm
ORDERING INFORMATION
CAT. NO. DESCRIPTION STD. PACK
CXDL2.5(E)D1 2.5 sq.mm Terminal Block with electronic components in Grey colour. 100
ACCESSORIES
CAT. NO. DESCRIPTION STD. PACK
CA701-1M

Din 35 Rail unslotted 1 meter 50
CA701-2M

Din 35 Rail unslotted 2 meter 50
CA701-2M-S

Din 35 Rail slotted 2 meter 50
CA701-1M-S

Din 35 Rail slotted 1 meter 50
CA701-15-1M

Din 35 Rail 15 deep unslotted 1 meter 50
CA701-15-1M-S

Din 35 Rail 15 deep slotted 1 meter 50
CA701-15-2M

Din 35 Rail 15 deep unslotted 2 meter 50
CA701-15-2M-S

Din 35 Rail 15 deep slotted 2 meter 50
CA103

EndClamp in Polyamide suitable for Din 35/Din 35-15 rails 50
CA104

EndClamp in Polyamide suitable for Din 35/Din 35-15 rails 50
EPCXDL2.5/3

End Plate in Grey Colour 50
JX2.5/2

Shorting Link for 2.5 sq mm series 100
JX2.5/3

Shorting Link for 2.5 sq mm series 50
JX2.5/4

Shorting Link for 2.5 sq mm series 50
JX2.5/5

Shorting Link for 2.5 sq mm series 50
JX2.5/6

Shorting Link for 2.5 sq mm series 50
JX2.5/7

Shorting Link for 2.5 sq mm series 10
JX2.5/8

Shorting Link for 2.5 sq mm series 10
JX2.5/10

Shorting Link for 2.5 sq mm series 10
JX2.5/20

Shorting Link for 2.5 sq.mm series 10
MS5

Marking Tag Blank suitable for CXM2.5 / CXMG2.5 Terminal Blocks 100
TM5

Flexible Marker Carrier for double level Terminal Block 50
WLX2.5

Warning label suitable for 5mm wide terminal block 50
SCS0.5/3

Electricians Screwdriver for slotted screws 10
