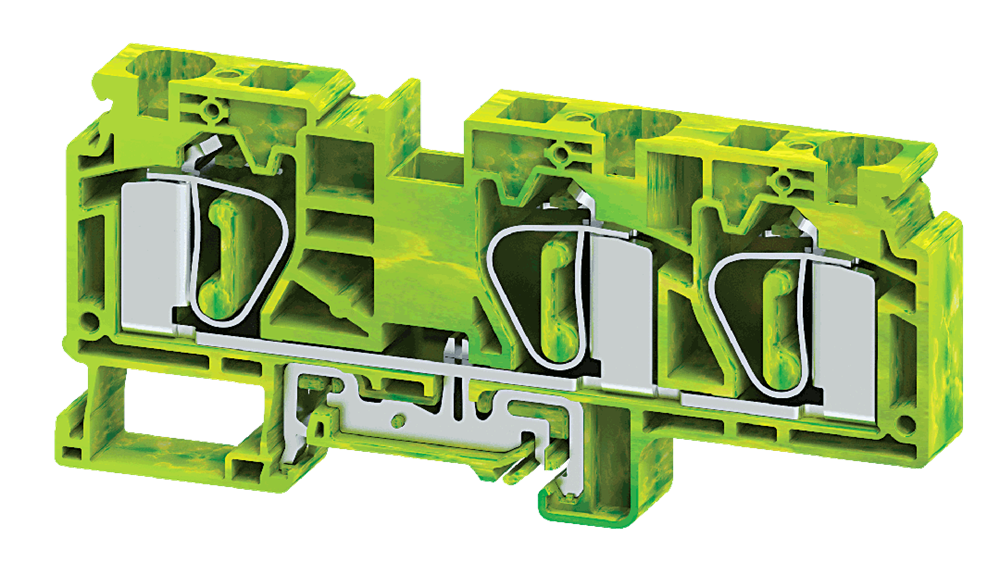

Connectwell CSCG16/3T Ground/Earth Spring Clamp Terminal Block
16 sq. mm Ground/Earth Spring Clamp Terminal Blocks
These Terminal Blocks have specially designed alloy feet which help in achieving very low contact resistance and vibration proof grounding with the DIN rails. They green/yellow colour coded as industry standards.
Description
| TECHNICAL DATA | |||
| Housing Material | Polyamide | ||
| Standard Colour | Yellow – Green | ||
| Product Function | Earthing/Grounding | ||
| Wire Entry Orientation | Top Entry | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screw Driver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 1.5 mm² | ||
| Conductor Cross Section Stranded max. | 16 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 16 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 4 AWG | ||
| Stripping Length | 20 mm | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 59 mm | ||
| Height with DIN 35 x 7.5 mm rail | 51.6 mm | ||
| Length | 120 mm | ||
| Width (Thickness) | 12 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CSCG16/3T | 16 sq.mm Feed Through Spring Clamp Grounding/Earthing Terminal Block | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA103 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| CA104 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| EPCX10/3 | End Plate for EPCX10/3 | 50 |
| CA509/K10 | Marking Tag Blank suitable for CTS10U / CGT10U / CGT10N / CHV10U / CTS10USC / STH4 / STH4DT / STH4DTSH / CSC10T Terminal Blocks | 100 |
| SCS0.8/4 | Electricians Screwdriver for slotted screws | 10 |
| JX10/2 | Shorting Link for 10 mm wide TB | 20 |
| JXS10/2.5 | Step Down Shorting Link for CX series | 10 |
| MC10 | MARKER CARD 10MM PITCH WITH 42 TAGS | 10 |
