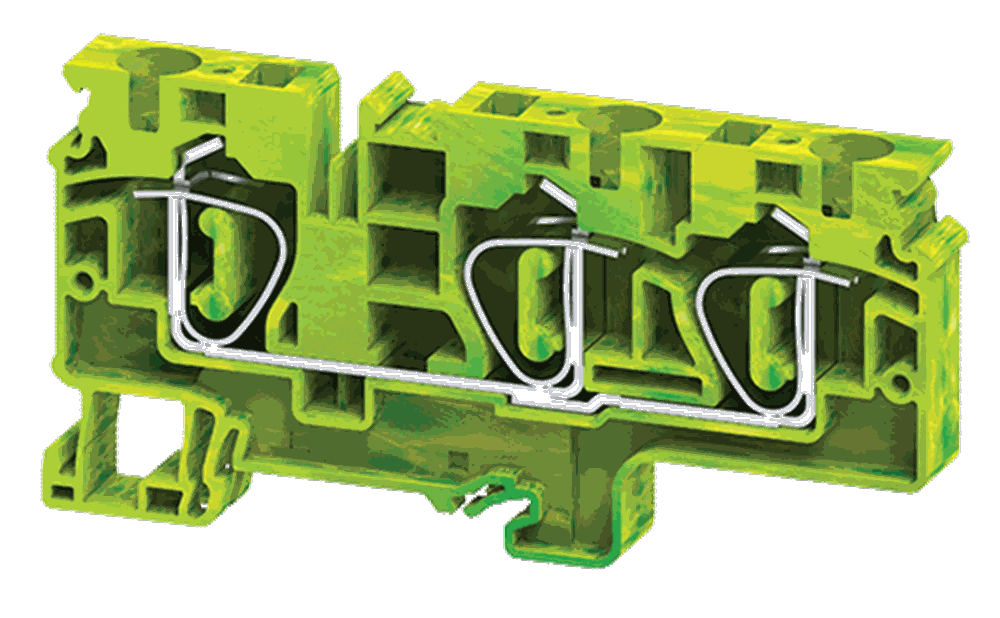

Connectwell CXG10/3 Ground/Earth Spring Clamp Terminal Block
10 sq.mm Ground/Earth Spring Clamp Terminal Blocks
These Terminal Blocks have specially designed alloy feet which help in achieving very low contact resistance and vibration proof grounding with the DIN rails. They green/yellow colour coded as industry standards.
Description
| TECHNICAL DATA | |||
| Housing Material | Polyamide | ||
| Product Function | Feed Through | ||
| Wire Entry Orientation | Top | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screw Driver | ||
| Rated Surge Voltage | 8 KV | ||
| Pollution Degree | 3 | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 10 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 6 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 10 mm² | ||
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 1.5 mm² | ||
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 4 mm² | ||
| Stripping Length | 18 mm | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 56.2 mm | ||
| Height with DIN 35 x 7.5 mm rail | 48.7 mm | ||
| Length | 97 mm | ||
| Width (Thickness) | 10 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CXG10/3 | 10 sq.mm Earthing Spring Clamp Terminal Block in Green-Yellow colour | 50 |
| ACCESSORIES | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CA701-1M | Din 35 Rail unslotted 1 meter | 50 |
| CA701-2M | Din 35 Rail unslotted 2 meter | 50 |
| CA701-2M-S | Din 35 Rail slotted 2 meter | 50 |
| CA701-1M-S | Din 35 Rail slotted 1 meter | 50 |
| CA701-15-1M | Din 35 Rail 15 deep unslotted 1 meter | 50 |
| CA701-15-1M-S | Din 35 Rail 15 deep slotted 1 meter | 50 |
| CA701-15-2M | Din 35 Rail 15 deep unslotted 2 meter | 50 |
| CA701-15-2M-S | Din 35 Rail 15 deep slotted 2 meter | 50 |
| CA103 | EndClamp in Polyamide suitable for Din 35/Din 35-15 rails | 50 |
| CA702 | End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails | 50 |
| CA802 | End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails | 50 |
| EPCX6/3 | End Plate in Grey colour | 50 |
| JX6/2 | Shorting Link for 8 mm wide TB | 100 |
| JX6/3 | Shorting Link for 8 mm wide TB | 50 |
| JX6/4 | Shorting Link for 8 mm wide TB | 50 |
| JX6/10 | Shorting Link for 8 mm wide TB | 10 |
| CA509/K8 | Marking Tag with Vertical printing. | 100 |
| SCS0.8/4 | Electricians Screwdriver for slotted screws | 10 |
| MC8 | MARKER CARD 8MM PITCH WITH 48 TAGS | 10 |
