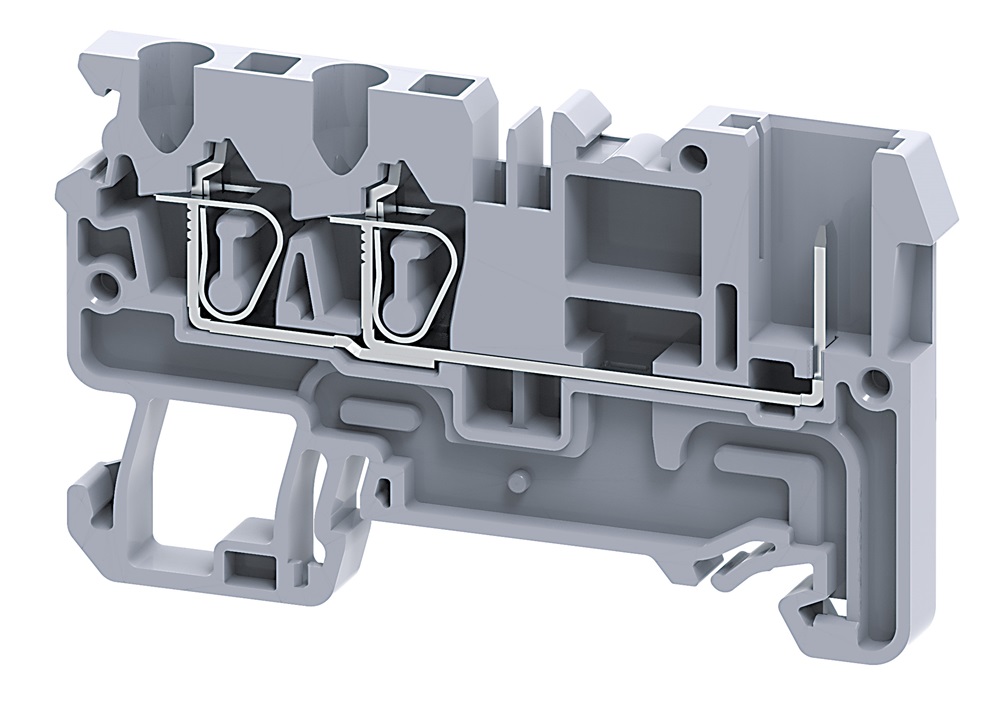

Connectwell CX2.5/3/1B Pluggable Feed Through Spring Clamp Terminal Block
2.5 sq.mm pluggable feed through Spring Clamp Terminal Block
The Spring Clamp is operated by using a screw driver to provide an access to the wire through an opening in the spring clamp. The inserted wire gets clamped on to the current bar when the screw driver is removed. One side can be plugged with CX2.5PN plugs.
Description
| TECHNICAL DATA | |||
| Rated Voltage | 500 V | ||
| Rated Current | 24 A | ||
| Housing Material | Polyamide | ||
| Standard Colour | Grey | ||
| Product Function | Feed Through | ||
| Wire Entry Orientation | Top | ||
| Mounting Possibility | DIN 35/DIN 35-15 Rail | ||
| Operated by | Screw Driver | ||
| CONNECTION DATA | |||
| Conductor Cross Section Stranded min. | 0.2 mm² | ||
| Conductor Cross Section Stranded max. | 2.5 mm² | ||
| Conductor Cross Section AWG/Kcmil min | 24 AWG | ||
| Conductor Cross Section AWG/Kcmil max | 12 AWG | ||
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² | ||
| Conductor Cross Section Stranded with Ferrule/Lug max | 2.5 mm² | ||
| Stripping Length | 10 mm | ||
| DIMENSIONS | |||
| Height with DIN 35 x 15 mm rail | 45.7 mm | ||
| Height with DIN 35 x 7.5 mm rail | 38.2 mm | ||
| Length | 62.9 mm | ||
| Width (Thickness) | 5 mm | ||
| ORDERING INFORMATION | ||
| CAT. NO. | DESCRIPTION | STD. PACK |
| CX2.5/3/1B | 2.5 sq.mm pluggable feed through Spring Clamp Terminal Block | 100 |
