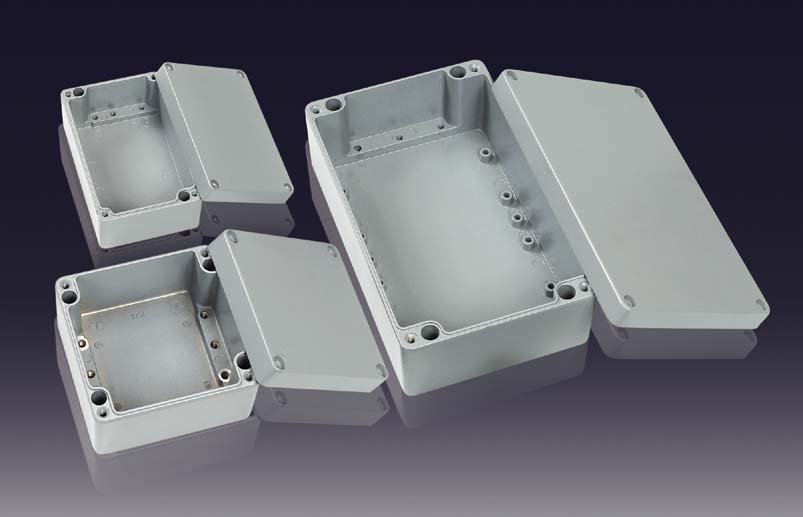

Boxco Aluminum Enclosure
1. BOXCO’s diecast aluminum enclosures have excellent resistance against chemicals.
2. It is sealed enclosure with Type 4X rating and can be used in wide temperature range.
3. BOXCO IP67 rated waterproof enclosures are proper to be used for indoor, outdoor or coastal area in harmful environment where expected to be contact with sea water.
**Dimensions and specifications are subject to change without notice.
Description
| IP rating | IP 66/67 |
|---|---|
| IK Rating | IK 08 |
| Size(included cover) | Model | Mounting Plate | Plate Dimension |
||
|---|---|---|---|---|---|

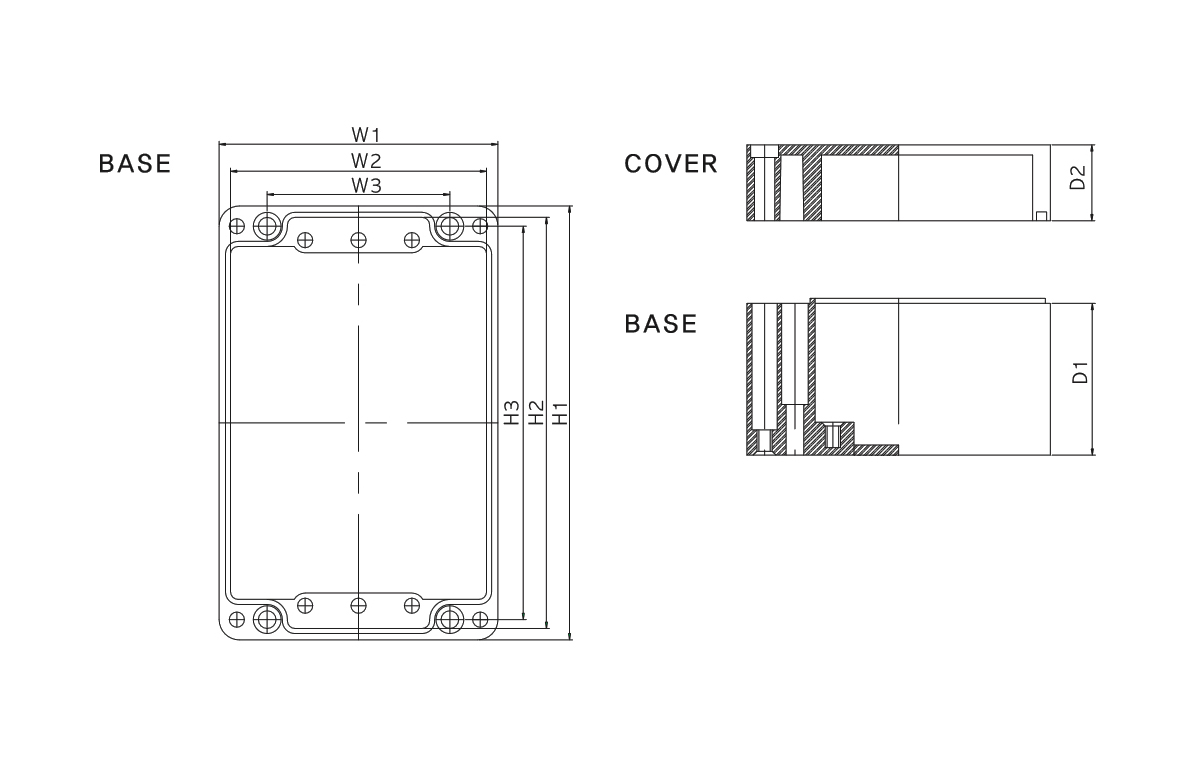

| W1×L1×H1 (mm) |
W1×L1×H1 (inch) |
Aluminum box | Steel Mounting Plate |
M1 | M2 |
| 46×51×32 | 1.81×2.00×1.25 | BC-AL-050503 | |||
| 64×58×34 | 2.51×2.28×1.33 | BC-AL-060603 | |||
| 64×58×46 | 2.51×2.28×1.81 | BC-AL-060605 | |||
| 64×98×34 | 2.51×3.85×1.33 | BC-AL-061003 | |||
| 64×98×46 | 2.51×3.85×1.81 | BC-AL-061005 | |||
| 64×150×34 | 2.51×5.90×1.33 | BC-AL-061503 | |||
| 64×150×46 | 2.51×5.90×1.81 | BC-AL-061505 | |||
| 80×75×57 | 3.14×2.95×2.24 | BC-AL-080806 | 0808A | ||
| 80×75×70 | 3.14×2.95×2.75 | BC-AL-080807 | 0808A | ||
| 80×125×58 | 3.14×4.92×2.28 | BC-AL-081306 | 0813A | ||
| 80×125×70 | 3.14×4.92×2.75 | BC-AL-081307 | 0813A | ||
| 80×175×60 | 3.14×6.88×2.36 | BC-AL-081806 | 0818A | ||
| 80×175×70 | 3.14×6.88×2.75 | BC-AL-081807 | 0818A | ||
| 80×250×57 | 3.14×9.84×2.24 | BC-AL-082506 | 0825A | ||
| 80×250×70 | 3.14×9.84×2.75 | BC-AL-082507 | 0825A | ||
| 100×100×81 | 3.93×3.93×3.18 | BC-AL-101008 | 1010A | ||
| 100×160×80 | 3.93×6.29×3.15 | BC-AL-101608 | 1016A | ||
| 120×122×81 | 4.72×4.80×3.18 | BC-AL-121208 | 1212A | ||
| 120×220×81 | 4.72×8.66×3.18 | BC-AL-122208 | 1222A | ||
| 120×220×91 | 4.72×8.66×3.58 | BC-AL-122209 | 1222A | ||
| 120×360×81 | 4.72×14.17×3.18 | BC-AL-123608 | 1236A | ||
| 140×220×80 | 5.51×8.66×3.15 | BC-AL-142208 | 1422A | ||
| 150×132×90 | 5.90×5.19×3.54 | BC-AL-151309 | 1513A | ||
| 160×160×91 | 6.29×6.29×3.58 | BC-AL-161609 | 1616A | ||
| 160×210×100 | 6.29×8.26×3.93 | BC-AL-162110 | 1621A | ||
| 160×260×90 | 6.29×10.23×3.54 | BC-AL-162609 | 1626A | ||
| 160×360×91 | 6.29×14.17×3.58 | BC-AL-163609 | 1636A | ||
| 180×180×101 | 7.08×7.08×3.97 | BC-AL-181810 | 1818A | ||
| 230×200×110 | 9.05×7.87×4.37 | BC-AL-232011 | 2320A | ||
| 230×200×180 | 9.05×7.87×7.08 | BC-AL-232018 | 2320A | ||
| 230×280×110 | 9.05×11.02×4.37 | BC-AL-232811 | 2328A | ||
| 230×330×110 | 9.05×12.99×4.37 | BC-AL-233311 | 2333A | ||
| 230×400×111 | 9.05×15.75×4.37 | BC-AL-234011 | 2340A | ||
| 313×403×110 | 12.32×15.90×4.37 | BC-AL-314011 | 3140A | ||
| 313×403×180 | 12.32×15.90×7.12 | BC-AL-314018 | 3140A | ||
